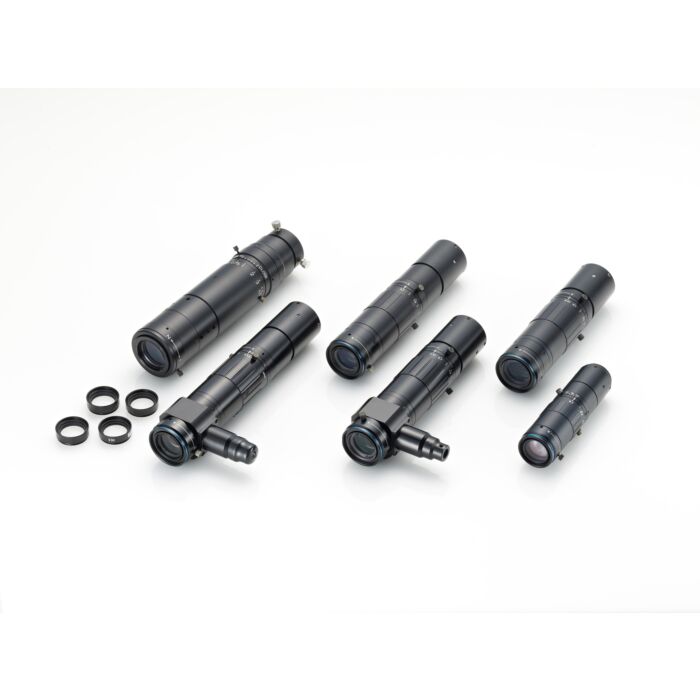

VS Technology VSZ-M0324S Macro Zoom Lenses
High-Performance Macro Zoom Lenses for Versatile Industrial and Machine Vision Applications
VS Technology's VSZ-M0324S Macro Zoom Lenses are a pinnacle of innovation in the realm of machine vision and industrial applications. Designed for versatility, these lenses offer magnification ranges from 0.3x to 2.4x, accommodating a wide array of inspection needs. The series is known for its compact size and extended working distance (WD) up to 213mm, ensuring precision without the need to constantly adjust the lens position.
The lenses are equipped with a zoom ratio of 1:8 and co-axial lighting, providing exceptional clarity and detail even in challenging lighting conditions. The C-Mount compatibility and support for 1/2" to 2/3" sensors make these lenses highly adaptable to various camera systems.
Applications benefiting from these lenses include semiconductor inspection, printed circuit board (PCB) examination, and quality control in manufacturing. Their high resolution and variable zoom capabilities make them indispensable tools in environments requiring meticulous inspection and measurement.
Incorporating these lenses into your system enhances image quality and inspection accuracy, ultimately driving efficiency and productivity. Aegis Electronic Group Inc. proudly offers these advanced macro zoom lenses, empowering industries to achieve superior results in their vision systems.
Features:
- Magnification range: 0.3x - 2.4x
- Working Distance: 213mm
- Zoom Ratio: 1:8
- Co-axial lighting for clear imaging
- Compact design
- C-Mount compatibility
- Supports 1/2" to 2/3" sensors
- Variable zoom for versatile applications
Applications:
- Semiconductor inspection
- Printed circuit board (PCB) examination
- Quality control in manufacturing
- Precision measurement
- Detailed surface inspection
- Automated optical inspection (AOI)
- Microscopic analysis
- Scientific research and development
| Optical Mag. Range | x 0.3 ～ x 2.4 | ||
| Optical Mag. | x 0.3 x 1.2 x 2.4 | ||
| FOV (V x H) | 2/3" - N/A 1/2" - 16.0 x 21.3 mm 4.0 x 5.3 mm 2.0 x 2.7 mm 1/3" - 12.0 x 16.0 mm 3.0 x 4.0 mm 1.5 x 2.0 mm |
||
| WD | 213 mm ± 6 | ||
| O/I (Object & Imager distance) | 363.2 mm | ||
| Working F/# *Value at Iris open | 23.2 24.5 26.0 | ||
| NA | 0.006 0.024 0.046 | ||
| DOF at PCoC φ0.04mm | 20.6 mm 1.4 mm 0.4 mm | ||
| TV Distortion (Super 35mm) | 0.02 % 0.05% 0.04% | ||
| Relative Illuminance (Y=17.6) | 99% 99% 99% | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size | 1/2" | ||
| Co-Axial Prism | - | ||
| Filter Thread | M 27 P= 0.5 | ||
| Weight (approx.) | 165 g | ||
| Dimension | Ø 32 (max.) x L = 132.7 mm | ||
