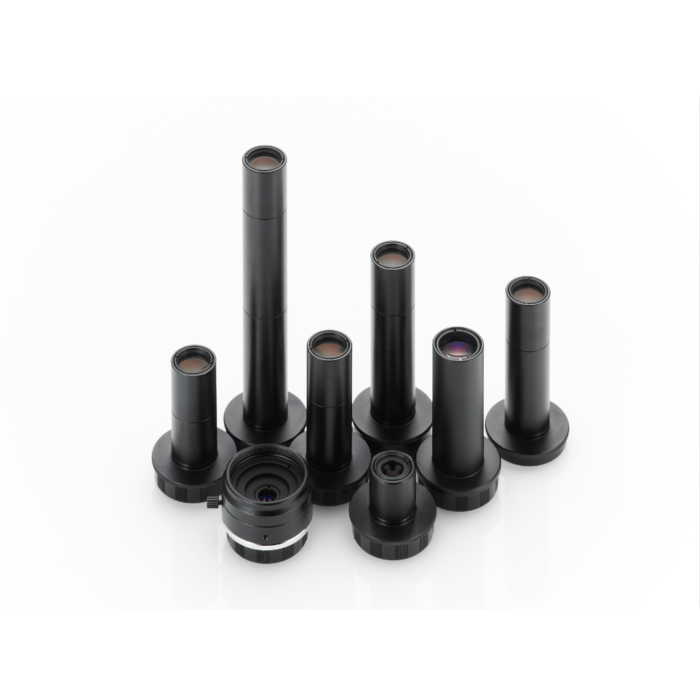

VS Technology VS-MC1-80 Front Angled Group View

VS Technology VS-MC1-80 Fixed & Variable Magnification Macro Lens

VS Technology VS-MC2-60 Front Angled Group View

VS Technology VS-MC2-60 Fixed & Variable Magnification Macro Lens

VS Technology VS-MC1.5-65 Fixed & Variable Magnification Macro Lens

Discover the pinnacle of industrial imaging with VS-MC1.5-65 Macro Lens. Unleash precision in machine vision applications. Explore fixed and variable magnification options for optimal clarity. Elevate your imaging capabilities with Aegis Electronic Group.
SKU
VS-MC1.5-65

Revolutionize Precision Imaging with the VS-MC1.5-65 Macro Lens

Immerse yourself in the cutting-edge VS-MC1.5-65 Macro Lens, a pinnacle in industrial camera lenses. This lens, compatible with 2/3" support, offers unparalleled imaging capabilities with a magnification range from 0.1x to 2.0x for fixed models and 0.24x to 1.0x for variable models. A total of 15 models cater to diverse industrial applications, ensuring precision and adaptability.

The VS-MC1.5-65 stands out with its advanced connections, seamlessly integrating with industrial camera systems. Its variable magnification spans two types and two models, providing flexibility in capturing intricate details. Fixed magnification models, available in 15 variants, deliver consistent clarity.

Designed for industrial and machine vision applications, this lens excels in optical inspection, automation, and high-resolution imaging. The 2/3" support enhances compatibility, making it an ideal choice for various setups. Whether you seek precision optics for quality control or cutting-edge imaging technology for industrial automation, the VS-MC1.5-65 Lens from VS Technology, available through Aegis Electronic Group, is your gateway to unparalleled imaging solutions.


Features:

  • Variable and fixed magnification options
  • Compatibility with 2/3" support
  • Advanced connections for seamless integration
  • Precision optics for quality control
  • High-resolution imaging technology
  • 15 models catering to diverse industrial applications


Applications:

  • Optical Inspection
  • Industrial Automation
  • Machine Vision Systems
  • High-Resolution Imaging
  • Precision Quality Control
Focal Length 43.9mm
Optical Mag. x 1.5 ± 5 %
FOV (V x H) 2/3" - 4.7 x 5.6
1/2" - 3.2 x 4.3
1/3" - 2.4 x 3.2
WD 64.8 mm ± 2
O/I (Object & Imager distance) 184.1 mm
Working F/# *Value at Iris open 10.0
NA 0.075
DOF at PCoC Ø 0.04mm 0.4 mm
TV Distortion (2/3") 0.00%
Relative Illuminance (Y=5.5) 99 %
Wavelength Visible
Mount C-Mount
Flange Back 17.526 mm
Sensor Size (max.) 2/3"
Weight (approx.) 29 g
Dimension Ø 30 (max.) x L = 101.8 mm
