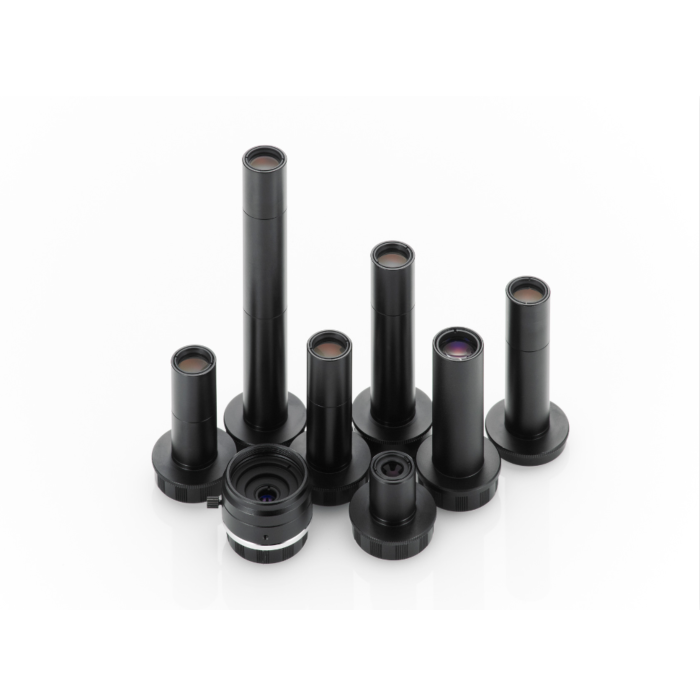

VS Technology VS-MC075-100 Fixed & Variable Magnification Macro Lens
VS-MC075-100 Industrial Lens: Precision Imaging for Machine Vision Applications
Discover the cutting-edge VS Technology VS-MC075-100 Fixed & Variable Magnification Macro Lens at Aegis Electronic Group. This lens is designed to meet the demands of industrial and machine vision applications, offering unparalleled precision and clarity.
The lens supports 2/3" format and provides a versatile magnification range from 0.1x to 2.0x for fixed magnification and 0.24x to 1.0x for variable magnification. With 15 models available for fixed magnification and 2 models for variable magnification, customers can choose the lens that best fits their imaging requirements.
Featuring a robust Φ16 connection, the VS-MC075-100 ensures secure and stable connections in diverse industrial environments. Its high-resolution imaging capabilities make it ideal for tasks requiring detailed inspection and analysis.
Applications of this lens extend across various industries, including industrial automation, quality control, and machine vision systems. Whether it's precision inspection, automated production processes, or quality assurance, the VS-MC075-100 lens delivers exceptional performance, ensuring optimal results in demanding industrial settings.
Features:
- 2/3" format support
- Fixed magnification range: 0.1x to 2.0x
- Variable magnification range: 0.24x to 1.0x
- Φ16 connection
- High-resolution imaging
Applications:
- Industrial Automation
- Quality Control
- Machine Vision Systems
- Precision Inspection
- Automated Production Processes
| Focal Length | 43.9mm | ||
| Optical Mag. | x 0.75 ± 5 % | ||
| FOV (V x H) | 2/3" - 9.5 x 11.2 1/2" - 6.4 x 8.5 1/3" - 4.8 x 6.4 |
||
| WD | 97.1 mm ± 4 | ||
| O/I (Object & Imager distance) | 180.5 mm | ||
| Working F/# *Value at Iris open | 7.1 | ||
| NA | 0.053 | ||
| DOF at PCoC Ø 0.04mm | 1.0 mm | ||
| TV Distortion (2/3") | 0.00% | ||
| Relative Illuminance (Y=5.5) | 97 % | ||
| Wavelength | Visible | ||
| Mount | C-Mount | ||
| Flange Back | 17.526 mm | ||
| Sensor Size (max.) | 2/3" | ||
| Weight (approx.) | 23 g | ||
| Dimension | Ø 30 (max.) x L = 65.9 mm | ||
