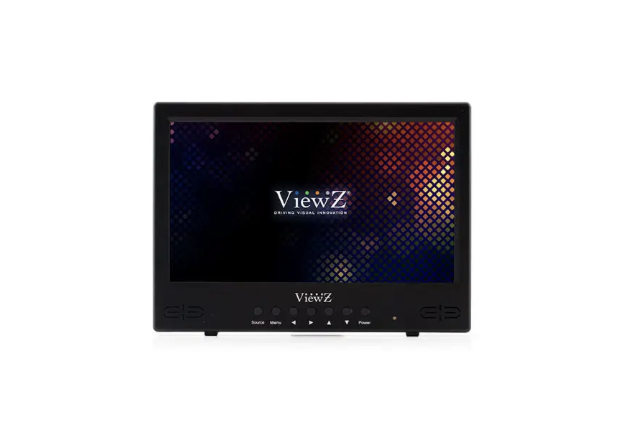

ViewZ VZ-101RTC 10.1” LED CCTV Monitor w/ BNC, HDMI, VGA
*Please note tariff fee is included in price*
VZ-101RTC is a rugged 10.1” CCTV monitor with BNC/HDMI/VGA/Trigger, 1024×600 resolution, auto power/source recovery, and 24/7/365 reliability—NDAA compliant with a 3-year warranty.
The VZ-101RTC is a premium 10.1” LED CCTV security monitor built for always-on surveillance environments. As part of the rugged RTC monitor series, it supports both analog and digital video with BNC (composite) in/out, HDMI, VGA, and Trigger input—making it easy to integrate into legacy CCTV systems and modern DVR/NVR workflows. With auto power + source recovery, the VZ-101RTC is designed to come back online automatically after interruptions—ideal for unattended security stations.
Engineered for continuous operation, this display runs 24/7/365, includes 2D comb-filter + noise reduction for cleaner analog video, and features built-in dual speakers for audio monitoring. The VZ101RTC is NDAA compliant, backed by a 3-year warranty, and supports 16:9 viewing (with 4:3 ratio availability), making it a dependable choice for access control rooms, guard desks, and rack/wall-mounted surveillance installs.
Features:
- SKU-first RTC series premium security monitor platform
- 10.1” LED panel with 1024×600 @ 60Hz resolution
- Analog + digital inputs: BNC (composite), HDMI, VGA
- BNC loop-out for pass-through video workflows
- Trigger input for alarm/event-based display switching
- Auto power recovery and auto source recovery after outages
- 2D comb-filter and noise reduction for cleaner CCTV video
- 170°/170° viewing angles for wide visibility at stations
- Built-in speakers (1W × 2) with audio input
- 24/7/365 duty design for continuous security monitoring
- NDAA compliant for government/regulated deployments
- 3-year warranty for long-life installations
Applications:
- Security Desk
- Guard Station
- Access Control
- CCTV Viewing
- Video Loopout
- Alarm Trigger
- Rack Mount
- Wall Mount
Display
| Screen Size | 10.1″ |
| Max Resolution | 1024 x 600 @60Hz |
| Pixel Pitch | 0.2175 mm x 0.2175 mm |
| Brightness | 300cd/m²(Typical) |
| Contrast Ratio | 800 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 170°/170° |
| Display Color | 16.7 Million |
| Response Time | < 25 ms |
Interface
| AV (Composite) In / BNC Out | 1 / 1 |
| HDMI In | 1 |
| VGA In (15Pin D-Sub) | 1 |
| Trigger In | 1 |
| Audio In | 1 |
Audio
| Built in speaker | 1W x 2 |
Special Features
| Filter Type | 2D Comb-filter / Noise Reduction |
| Multi-Lingual Language | English, Spanish, French, German, Italian, Portuguese, Polish, Russian |
Dimensions & Weight
| Outline Dimension (W x H x D) | 9.92” x 7.28” x 1.05” / 252.0 mm x 185.0 mm x 26.80 mm |
| Net Weight | 2.86 lbs / 1.3 kg |
| Gross Weight | 3.52 lbs / 1.6 kg |
Mount
| Vesa | 75 mm x 75 mm / M4 x L8 mm |
General Summary
| Power – Electrical Ratings | DC 12V, 2.0 A (AC100 ~ 240V[50/60Hz]) |
| Power – Consumption | ≤ 8 w |
| Regulations | FCC(A), CE, NDAA |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 20 ~ 70% RH |
| Compatible Mounts – Wall | VZ-WM05, VZ-WM11, VZ-AM01 |
| Compatible Mounts – Rack | VZ-RMK08 |
