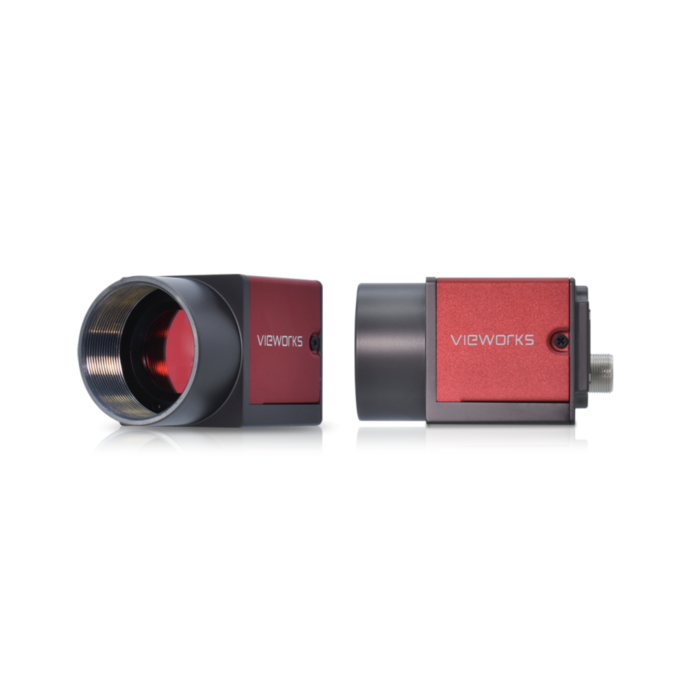

Vieworks VZ-12MU-M/C 32 H10 Industrial Digital Cameras with USB3.0 Interface
Unlock Precision with Vieworks VZ-12MU-M/C 32 H10 Industrial Digital Cameras
Aegis Electronic Group Inc. proudly presents the Vieworks VZ-12MU-M/C 32 H10, setting new benchmarks in industrial imaging technology. Engineered with a cutting-edge Sony IMX226 CMOS sensor, this USB3.0 Vision camera delivers exceptional performance with 32 frames per second at 4096 × 3000 resolution. Its compact 29mm x 29mm x 29mm design, reinforced by a robust metal housing and secure locking screw connectors, ensures durability in demanding industrial environments.
This camera supports advanced features like trigger modes for precise image capture, programmable LUTs for enhanced image processing, and GenICam™ compatibility for seamless integration into existing systems. With a user-friendly SDK and extensive parameter configuration options, it facilitates easy customization for various machine vision applications.
Explore the Vieworks VZ-12MU-M/C 32 H10 for unmatched industrial imaging. Compact, robust, and feature-rich—ideal for precision in machine vision.
Features:
- Sony IMX226 rolling shutter CMOS sensor
- USB3.0 Interface
- Compact 29mm x 29mm x 29mm design
- Robust metal housing with locking screw connectors
- Trigger modes: Frame Start / Frame Burst Start
- Programmable LUTs and Sequencer Control
- GenICam™ and USB3 Vision® compatibility
- SDKs for various programming tools
Applications:
- Industrial Inspection
- Medical Research
- Scientific Research
- Education
- Security
| Resolution (H × V) | 4024 x 3036 |
| Sensor | Sony IMX226 Rolling Shutter CMOS |
| Pixel Size | 1.85 ㎛ × 1.85 ㎛ |
| Data Interface | USB 3.0 |
| Frame Rate | 32.3fps@4024 × 3036 |
| ADC Bit Depth | 12 bit |
| Pixel Bit Depth | 8 bit, 12 bit |
| Exposure Time | Standard: 10 ㎲ ~ 1 s, Actual Steps: 1 row period |
| Gain | 0dB ~ 24dB, Default: 0dB, Steps: 0.1dB |
| Mono/Color | Color Mono |
| Pixel Formats | Bayer RG8, Bayer RG12 Mono8, Mono12 |
| Single Noise Ratio | 40.61dB 40.77dB |
| Synchronization | Hardware trigger, Software trigger |
| I/O | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Temperature | Operating: 0℃ ~ 45℃, Storage: -20℃ ~ 70℃ |
| Operating Humidity | 10% ~ 80% |
| Power Requirements | 5 VDC via USB cable |
| Power Consumption | < 2.7W@5 VDC |
| Lens Mount | C |
| Dimensions and Weight | 29㎜ x 29㎜ x 29㎜ (without lens adapter or connectors), 65g |
| Progammable Control | Image size, Gain, Exposure time, Trigger polarity, Flash polarity |
| Conformity | CE, RoHS, FCC, GigE Vision, GenICam, KC |
