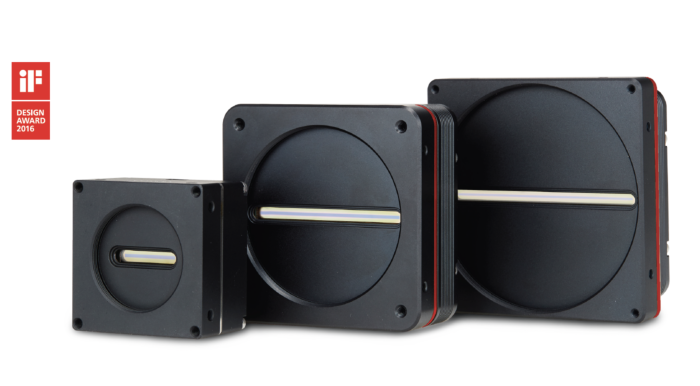

Vieworks VT-12K5C-H60A-256 12480 x 256 resolution, 67 ㎑, Hybrid Color TDI Line Scan Sensor, CameraLink M72 Mount TDI Line Scan Camera
The Vieworks VT-12K5C-H60A-256 TDI line scan camera is built for high-speed, high-sensitivity imaging with cutting-edge hybrid TDI sensor technology. Offering a resolution of 12480 x 256 pixels and 5.0 μm x 5.0 μm pixel size, it captures exceptionally detailed images at 67 kHz maximum line rate at full resolution. The camera achieves even higher line rates of up to 100 kHz with 2x2 binning, making it ideal for fast-paced inspection processes. The high sensitivity of the hybrid sensor provides up to 256 times greater sensitivity than traditional line scan cameras, ensuring superior image quality with very low noise, even at high speeds. The camera supports a wide range of TDI stages, from 64 to 256 stages, allowing for precise image capture at faster speeds.
Equipped with a Camera Link interface (Base, Medium, Full), the VT-12K5C-H60A-256 features advanced gain control options, offering both analog (1× to 4×) and digital (1.0× to 8.0×) gain for flexible optimization under varying lighting conditions. With a throughput of 0.83 Gpix/s and customizable gamma correction via a user-defined LUT, this camera is ideal for high-performance applications such as flat panel display inspection, printed circuit board (PCB) inspection, and wafer inspection. The compact and lightweight design (90 mm x 90 mm x 38 mm, 500 g) ensures seamless integration into complex systems. With an operating temperature range of 0°C to 40°C and low power dissipation (12 W typical), it provides reliable performance for industrial environments.
Features:
- Resolution: 12480 x 256 pixels
- Pixel Size: 5.0 μm x 5.0 μm
- Max Line Rate: 67 kHz (12480 pixels), 100 kHz (2x2 binning)
- TDI Stages: 64 to 256
- Interface: Camera Link (Base/Medium/Full)
- Throughput: 0.83 Gpix/s
- Gain Control: Analog (1× to 4×), Digital (1.0× to 8.0×)
- Gamma Correction: User-defined LUT
- Power Dissipation: 12 W (typical)
- Operating Temp: 0°C to 40°C
Applications:
- Flat Panel Display Inspection
- PCB Inspection
- Wafer Inspection
- High-Performance Document Scanning
| Resolution (H × V) | 12480 x 256 |
| Pixel Size | 5.0 ㎛ × 5.0 ㎛ |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 100㎑ |
| Max. Line Rate (2 x 2 Binning) | 100㎑ |
| Min. Line Rate | 1㎑ |
| Camera Image Memory | 12MB |
| Camera Link Pixel Clock | 85 ㎒ |
| Pixel Data Format | 8 bit (2/4/8/10 Tap) / 10 bit (2/4 Tap) / 12 bit (2/4 Tap) |
| TDI Stages | 64/128/192/256 |
| Trigger Mode | Free-Run, Timed, Trigger Width |
| Throughput | 0.83 Gpix/s |
| Gamma Correction | User Defined Lookup Table (LUT) |
| Black Level Control | -255 ~ 255 at 8 bit |
| Gain Control | Analog Gain: 1×, 2×, 3×, 4× / Digital Gain: 1.0× ~ 8.0× |
| Lens Mount | M42 x 0.75㎜ |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 36 ㎜ / 223 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 10℃ ~ 55℃) Storage: -40℃ ~ 70℃ |
| Power | 10 -30 V DC |
| Power Dissipation | Typ. 4.5 W |
| Configuration SW | Configurator |
