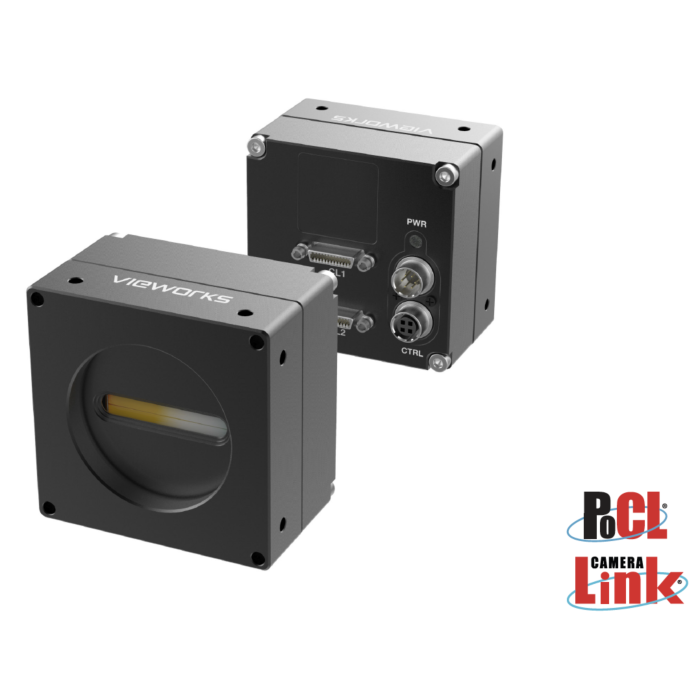

Vieworks VL-4K7C-M200 I-2 4096 × 2 resolution, Monochrome, 200 ㎑, Gpixel GL0402 sensor, M42 format, pixel size: 7.0
The VL-2K7C-M200 I-2, VL-2K7C-C100 I-2, VL-4K7C-M200 I-2 and VL-4K7C-C100 I-2, the latest models of the industrial proven VL series, are new 2k and 4k CMOS line scan cameras available with the Camera Link interface. The VL-2K7C-M200 I-2 camera delivers a maximum line rate of 200 ㎑ at 2k resolution. Even higher resolution, up to 4096 pixel resolution at 200 ㎑ line rate can be achieved using the VL-4K7C-M200 I-2 camera. The VL-2K7C-C100 I-2 and VL-4K7C-C100 I-2, the color line scan cameras, are also available for your color applications and color detection.
Featuring high sensitivity and high speed, these cameras are ideal for wide range of demanding applications such as flat panel display inspection, printed circuit board inspection, and high-performance document scanning.
Features:
- CMOS Line Scan
- Camera Link Full Interface
- Max. 4 k Pixel Resolution
- Dual Integration Mode
- Exposure Control
- PoCL Compliant
- GenICam Compatible -XML based Control
Applications:
- Flat Panel Display Inspection
- Printed Circuit Board Inspection
- High Performance Document Scanning
- Printing and Packaging System
| Resolution (H × V) | 4096 × 2 |
| Sensor | Gpixel GL0402 |
| Mono / Color | Mono |
| Pixel Size | 7.0 ㎛ × 7.0 ㎛ |
| Data Output Mode | 2 Tap - 8/10/12 bit 3 Tap - 8/10/12 bit 4 Tap - 8/10/12 bit 8 Tap - 8 bit 10 Tap - 8 bit |
| Interface | Camera Link Base / Medium / Full / 10 Tap, 26-pin SDR Connector |
| Max. Line Rate | 200 ㎑ |
| Exposure time | 1.00 ~ 1000.00 ㎲ |
| Pixel Format | Mono - Mono8 / Mono10 / Mono12 Color - N/A |
| Camera Link Pixel Clock Speed | 45 / 65 / 85 ㎒ |
| Binning | Sensor (HxV) - 2 X 2 Logic (HxV) - 1 × 2, 2 × 2 |
| Trigger Synchronization | Free-Run, Hardware Trigger, CC1 |
| External Trigger | 3.3 V ~ 5.0 V |
| Dynamic Range | 62 dB |
| Black Level | from -4096 to 4095 LSB at 12 bits |
| Gain Control | Analog Gain - 1.25×, 1.75×, 2.00×, 3.00×, 4.00× Digital Gain - 1.00× - 32.00× |
| Lens Mount | M42 × 1.0 ㎜ (Sensor to Camera Front: 10.10 ㎜) |
| Dimension / Weight | 60 ㎜ × 60 ㎜ × 37.1 ㎜ / 224 g |
| Temperature | Ambient Operating: 0℃ ~ 40℃ (Housing: 0℃ ~ 60℃), Storage: -40℃ ~ 70℃ |
| Power | External - 10 - 30 V DC Dissipation - Typ. 6.8 W PoCL - PoCL Compliant - Two PoCL cables required |
| Compliance | CE, FCC, KC |
