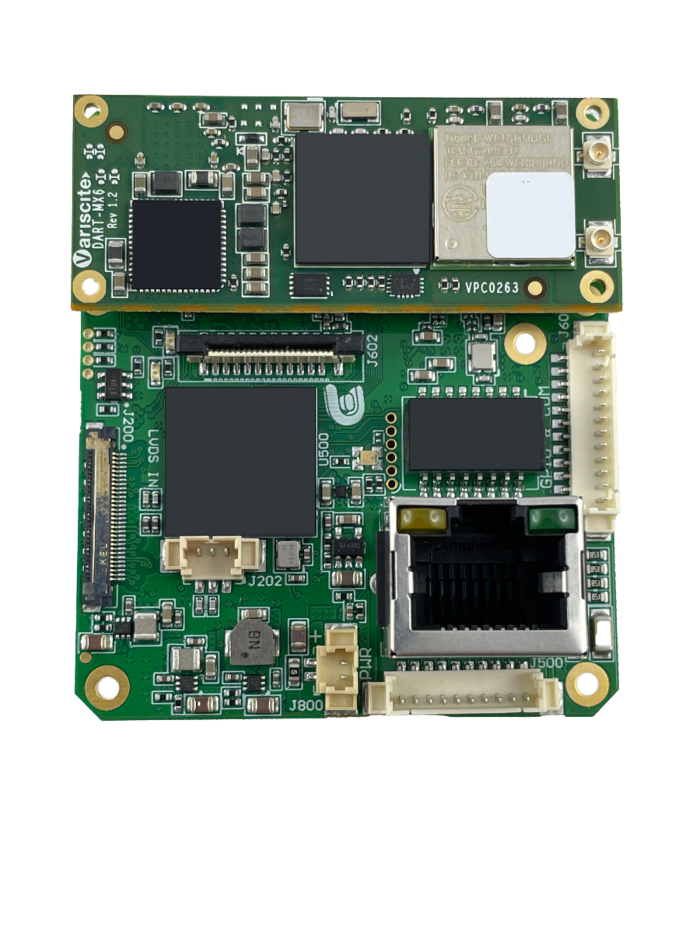

Twiga TV20 0011 Red Mamba Neo IP Video Streaming Module
SKU
Twiga TV20 0011 Red Mamba Neo IP Video Streaming Module
Quick Overview
Red Mamba Neo IP video encoding module has been specifically designed for compact embedded vision systems.
Combined with a iMX Quad core Cortex A9 processor, this tiny and powerful module offers a h.264 hardware encoder and enables low latency video stream over Ethernet or WIFI.
Features:
- i.MX Dual Core ARM Cortex™-A9
- Low latency h.264 encoding
- Video streaming over IP & Wi-Fi supporting several protocols: RTSP, RTP multicast, RTP MPEG2TS
- Video inputs: LVDS, MIPI, add-on connector
- Video output: HDMI 1.4 - up to 1080p60
- Video format detection
- Communication: RS485 or UART TTL
- Record and snapshot available
- Storage: local and micro-SD card slot
- Embedded Linux
- Setup and update via custom Website
- ONVIF Profile S compliant
Video Encoding / Decoding | h.264 Baseline Profile – up to 1080p30 h.264 Baseline, Main, High Profile – Up to 1080p60 |
| Streaming | RTSP stream (128 to 20000 Kbit/s) – RTP multicast – RTP MPEG2TS |
| LVDS | x1 |
| MIPI | x1 |
| ADD-ON | x1 |
| HDMI | x1 - 1.4a (1920 x 1080) |
| Ethernet | 10/100 Mbit/s Ethernet (Remote RJ45) |
| Wi-Fi | 802.11 a/b/g/n + MIMO |
| RS485 | up to 1 - VISCA/PELCO protocol |
| UART | up to 2 |
| GPIO's | up to 8 |
| SD Card Slot | x1 |
| CPU Name/Type | NXP/ freescale i.MX6 Dual core ARM® CortexTM-A9 Core |
| CPU frequency (Max) | 800MHz |
| LPDDR2 RAM | up to 1GB |
| eMMC NAND Flash (8bit) | Up to 64GB eMMC storage |
| Linux | Yocto, Linux |
| Supply Voltage | 6 to 12VDC |
| Digital I/O Voltage | 3.3V |
| Operating / Storage Temperature | Operating: 0°C to 60°C / Storage: -20°C to 60°C |
| Dimension | 50 mm x 57 mm x 15 mm (Remote RJ45 connector) |
