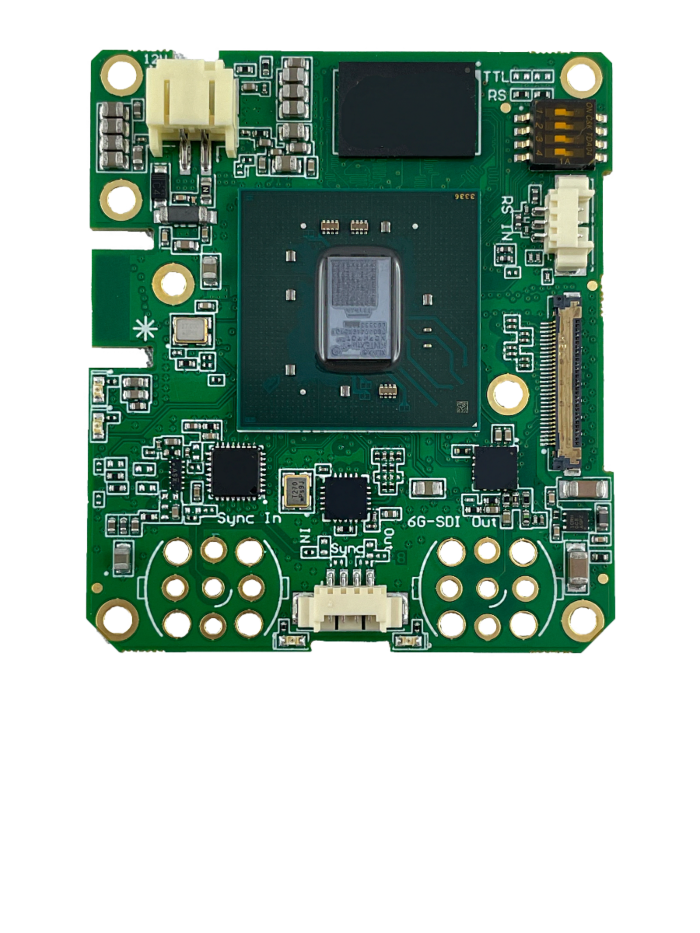

Twiga TV10 0080 6GSDI-SYNC Interface Board for Sony FCB-ES8320, FCB-ER8530, & FCB-ER8550
SKU
Twiga TV10 0080 6GSDI-SYNC
Quick Overview
Introducing the latest edition to our 4K module range: the 6G-SDI External Sync brings in a convenient and compatible for factor 4K possibility to a variety of applications where quality and performance is a premium.
Twiga TV10 0080 External Sync Interface Board for Sony FCB-ES, FCB-ER Series Cameras
Features:
- 6G-SDI (SMPTE ST-2081) digital video output
- Supports 4k resolution – up to 2160p25/29.97Hz
- Support External Sync Input
- Support External Sync Output (optional)
- Board and camera control via RS232/TTL
- BNC connector- MCX connector option
- Add-on connector for custom functions
- Compact & sustainable
Compatible With:
- Sony FCB-ES8320
- Sony FCB-ER8530
- Sony FCB-ER8550
- Sony FCB-EW9500H
| Digital Video Ouput | 6G-SDI - SMPTE - ST2081 |
| SDI Output Connector | BNC by default - MCX (option) |
| Sync Input | Molex connector BNC by default – SMB or MCX (option) |
| Video Format | Up to 2160p29.97 |
| Video Format Configuration | DIP switches |
| Camera Communication & Settings | VISCA – Default: RS232 level – TTL level (Option) |
| Power Supply | 6 to 12 VDC, 6 W (including camera *) |
| Operating Temperature Range | 0°C to 60°C |
| Regulation | EMC FCC part 15, PCB : UL 94 V0 |
| Dimensions (mm) | 50 (H) x 57.5 (W) |
