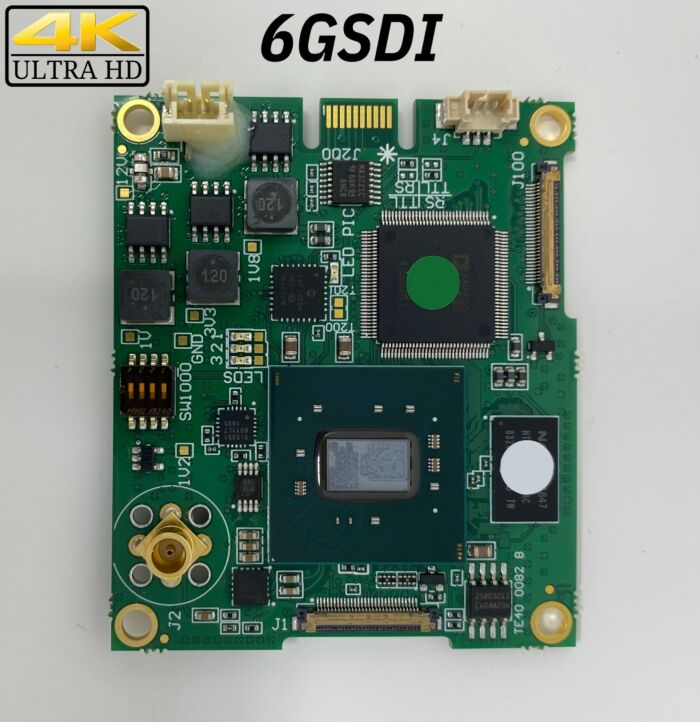

Twiga TV10 0080 6G-SDI Interface Board for Sony FCB-ES8320, FCB-ER8530, & FCB-ER8550

Introducing the latest edition to our 4K module range: the 6G-SDI External Sync brings in a convenient and compatible for factor 4K possibility to a variety of applications where quality and performance is a premium.

SKU
Twiga TV10 0080 6G-SDI

Twiga TV10 0080 External Sync Interface Board for Sony FCB-ES, FCB-ER Series Cameras

Compatible With:

  • Sony FCB-ES8320
  • Sony FCB-ER8530
  • Sony FCB-ER8550
Digital Video Ouput 6G-SDI - SMPTE - ST2081
Video Format 2160p25/29.97 Hz, 1080p50/59.94 - 1080p25/29.97, 720p 50/59.94
Video output standard configuration
Micro Switches
Camera communication & setting RS232, RX, TX, VISCA
SDI Output Connector BNC (SMB, MCX : OPTIONS)
Power 6 to 12 VDC, 6 W (including camera)
Environmental 0°C to 60°C
Storage -20°C to 60°C
Regulation EMC FCC part 15, PCB : UL 94 V0
Dimensions (mm) 65 (H) x 55 (L) x 20 (P)
