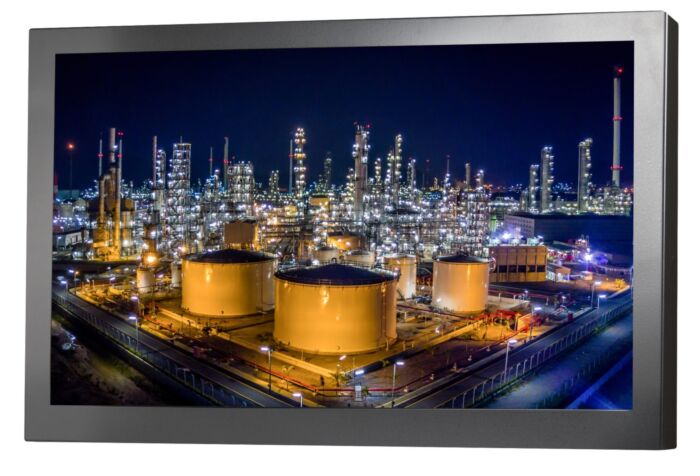

Tru-Vu VM-13.3G 13.3” Full HD Industrial Panel Mount Rugged LCD Monitor
Experience superior reliability and performance with the Tru-Vu VM-13.3G, an industrial-grade 13.3-inch LCD monitor engineered for demanding applications. Featuring full HD resolution (1920 x 1080), a rugged steel enclosure, and TRU-Tuff treatment for enhanced shock and vibration resistance, this monitor delivers outstanding visual clarity and lasting durability in harsh environments. Lockable OSD controls and auto-restart functionality after power loss ensure uninterrupted operation.
Designed for 24/7/365 use, the VM-13.3G supports HDMI, DVI, and DisplayPort inputs and comes with a full 3-year warranty. TAA compliant and customizable to your needs, the VM-13.3G is ideal for industrial, military, machine vision, and security applications. Count on Tru-Vu’s proven quality and expert engineering for years of dependable service.
Features:
- 13.3″ Full HD (1920 x 1080) resolution
- Rugged steel enclosure for industrial use
- TRU-Tuff shock and vibration protection
- Lockable OSD rear-panel controls
- Auto-restart after power loss
- 3-Year warranty
- TAA compliant
- Multiple video inputs: HDMI, DVI, DisplayPort
- Customizable for OEM needs
Applications:
- Industrial Control
- Military Systems
- Food Beverage
- Machine Vision
- Museum Exhibit
- Surveillance Security
| Model | VM-13.3G |
| LCD Panel | 13.3” AHVA LCD; LED Backlights |
| Display Resolution | 1920 x 1080 (1080p/60 Full HD) |
| Viewable Area | 11.55” (W) x 6.50” (H) (293.472 x 165.078 mm) |
| Pixel Pitch | 0.15285 mm |
| Display Colors | 16.2 Million |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Contrast Ratio | 800:1 |
| Viewing Angle | 178° (H) x 178° (V) |
| Response Time | 25 msec Trf |
| Control | OSD (On-Screen Display) via Rear Panel Pushbuttons |
| Video Inputs | DVI, HDMI, DisplayPort |
| Power Requirement | 12 VDC (2.5mm Connector) / 90-240 VAC via Locking Power Brick |
| Power Consumption | 25 Watts |
| Enclosure | Painted Steel |
| Mounting | 75x75 mm Rear VESA Mount Holes (M4 x 6mm Screws) |
| Operating Temperature | -4° to +158° F (-20° to +70° C) |
| Humidity | 5-90% RH |
| Shock | 50 G (20 msec, 1/2 sine) |
| Vibration | 1.5G RMS 10-200 Hz |
| Dimensions | 12.389” (W) x 7.637” (H) x 1.456” (D) (314.7 x 194 x 37 mm) |
| Weight | 3.47 lbs (1.57 kg) |
| Warranty | 3 Years |
| Accessories | 90-240 VAC Power Brick, DVI Cable, HDMI Cable |
