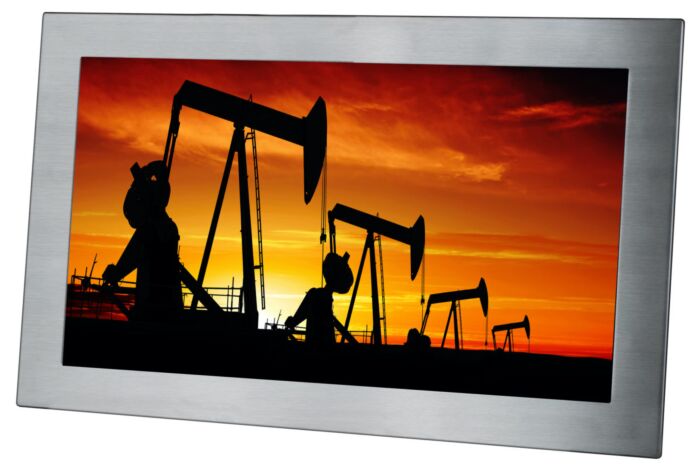

Tru-Vu SRMTPWP-23.8R 23.8” Sunlight Readable Waterproof Panel Mount Touch Screen Monitor
SKU
SRMTPWP-23.8R
$2,030.00
Quick Overview
23.8” sunlight readable waterproof touchscreen, stainless steel panel-mount with 1,000-nit brightness and full HD resolution. Rugged design for industrial, outdoor, or wash-down applications.
The Tru-Vu SRMTPWP-23.8R delivers full HD clarity and exceptional brightness for outdoor and industrial environments. Its 1,000-nit sunlight readable display ensures vivid visuals, even under direct sunlight, while the NEMA 4X stainless-steel enclosure protects against water, dust, and corrosion.
Engineered for performance and durability, this rugged touchscreen includes TRU-Tuff reinforcement and projected capacitive touch technology with multi-glove compatibility. Whether mounted on a panel or flush surface, it offers dependable operation across extreme temperatures from -22°F to 176°F, making it ideal for any harsh condition or demanding setup.
Features:
- 1,000 nits high-brightness LED display
- Full HD 1920 x 1080 resolution
- Projected capacitive multi-touch with anti-glare glass
- NEMA 4X stainless-steel front panel enclosure
- TRU-Tuff vibration and shock protection
- Ambient light sensor for automatic adjustment
- Auto re-start after power loss
- Operates in extreme temperatures (-22°F to 176°F)
- 3-year warranty and TAA compliance
Applications:
- Industrial Control
- Outdoor Kiosk
- Marine Display
- Food Processing
- Manufacturing Line
- Transportation Hub
| LCD Panel | 23.8” Color LCD; LED Backlights |
| Display Resolution | 1920 x 1080 (Full HD) |
| Touch Screen Type | Projected Capacitive |
| Touch Interface | USB |
| Viewable Area | 20.75” (W) x 11.67” (H) (527.04 × 296.46 mm) |
| Pixel Pitch | 0.277 mm |
| Display Colors | 16.7M |
| Aspect Ratio | 16:9 |
| Brightness | 1,000 nits |
| Anti-Glare Coating | Standard |
| Contrast Ratio | 1,000:1 |
| Ambient Light Sensor | Standard |
| Viewing Angle | 178°(H) x 178°(V) |
| Response Time | 25 ms Trf |
| Control | OSD via Rear Pushbuttons |
| Video Inputs | VGA, HDMI, DisplayPort |
| Power Requirement | 24VDC and 100-240VAC |
| Enclosure | Stainless Steel Panel-Mount with Rear Clamp, Zero Bezel Front |
| Enclosure Rating | NEMA 4X; Front: IP65 |
| Operating Temperature | -22°F to 176°F (-30°C to 80°C) |
| Humidity | 5-90% RH |
| Shock | 50G Half-sine |
| Vibration | 1.5G RMS 10-200Hz |
| TRU-Tuff Treatment | Standard |
| Dimensions | 25.27" (W) x 16.20" (H) x 2.44" (D) |
| Weight | TBD |
| Warranty | 3 Years |
