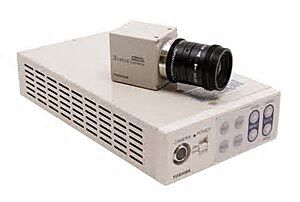

Canon Medical Components IK-4KH UHD 4K Camera with Camera Control Unit
SKU
IK-4KH
Quick Overview
3840 x 2160, 3-CMOS, 1/2.9", 8MP, F5.6-F6.1, 50/59.94 HZ, 4x 3GSDI camera control output for IK-4KH Ultra High Definition Remote Camera Head.
Canon Medical's leading innovation continues with its introduction of the world's smallest 3-chip UltraHD, 4K video camera system, the IK-4KH. The key advantage of this incredible camera is improved resolution, providing amazingly sharp details which can enhance many video applications from scientific imaging, life sciences, and defense to professional broadcast. When 4K images are desired and space is limited, the IK4KH delivers exceptional color performance with remarkable details, providing absolutely the best images possible.
Features:
- 3840 x 2160 50/59.94 Hz UltraHD 4K output
- Switchable formats; 4K, 1080p and 1080i
- Amazing details up to 1600 TV lines resolution
- Ultra-compact two piece design
- 4x 3G/HD-SDI output for maximum signal fidelity
- 12-channel color adjustment to achieve exceptional color accuracy and control
- 5 User-configurable settings files to support different operating modes and conditions
- Image flip and mirror
- Freeze frame
- Gen-lock for 3D and multi-camera use
- Remote control via RS232
- C-mount lens mount
Applications:
- Scientific/Industrial Imaging
- Life Sciences
- Military Defense Projects
- Broadcasting
IK-4KH CAMERA HEAD SPECIFICATIONS | |
| Image Sensor | 3-CMOS, 1/2.9", progressive |
| Output Matrix | Horizontal: 3840, Vertical : 2160 UHD 4K mode Horizontal: 1920, Vertical: 1080 HD 1080p/1080i |
| Output Resolution H/V | 1600 TV lines standard UltraHD 4K mode 1000 TV lines or more 1080p/1080i modes |
| Sensitivity | F5.6 standard (59.94 Hz setting) F6.1 standard (50 Hz setting) at 2000 lx, 3000K |
| Minimum Illumination | 19.5 lx (59.94 Hz setting) 16.2 lx (50 Hz setting) at F2.2, 24 dB |
| S/N Ratio | 58 dB standard AGC: OFF, Gamma: OFF, Enhance: OFF Color matrix: OFF, Color temp: 5600K |
| Operation Temperature | 0°C to 40°C / 32°F to 104°F |
| Operation Humidity | Less than 90% (non-condensing) |
| Weight | Approx. 70 g (2.5 oz) |
| Dimensions | W: 32.6 mm H: 38.6 mm D: 41 mm (1.28" x 1.52" x 1.61") Protruding portion is not included |

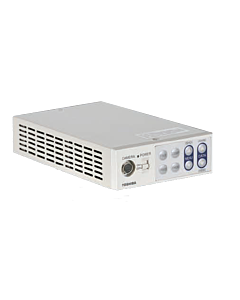

| IK-4KE CONTROLLER SPECIFICATIONS | |
| Power Supply | 12V DC±10% |
| Power Consumption | 13.8W |
| Scanning System | Progressive / Interlaced (Selectable) |
| Scan Frequency | H: 67.433 kHz, V: 59.94 Hz :1080p / 59.94 Hz 4K / 59.94 Hz 4 division output H: 56.250 kHz, V: 50 Hz :1080p / 50 Hz 4K / 59.94 Hz 4 division output H: 33.716 kHz, V: 59.94 Hz : 1080i / 59.94 Hz H: 28.125 kHz, V: 50 Hz : 1080i / 50 Hz |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Operating Humidity | Less than 90% (non-condensing) |
| Weight | Approx. 800g (1.76 lb) |
| Dimensions | W: 110 mm, H: 40 mm, D: 196 mm (4.33" x 1.58" x 7.72") |
| Scene Files | 5 User-configurable scene files |
| White Balance | Auto/Manual (Selectable) |
| Gain | Auto (-6 dB to 24 dB); Manual (-6 dB to 24 dB), OFF |
| Output Signal | 4x 3G/HD-SDI |
| Electronic Shutter | Auto/Manual/OFF 1/60 - 1/10,000 |
