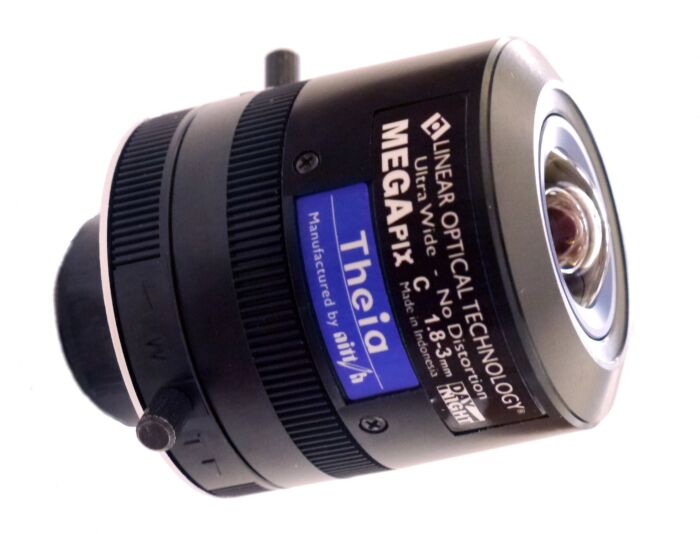

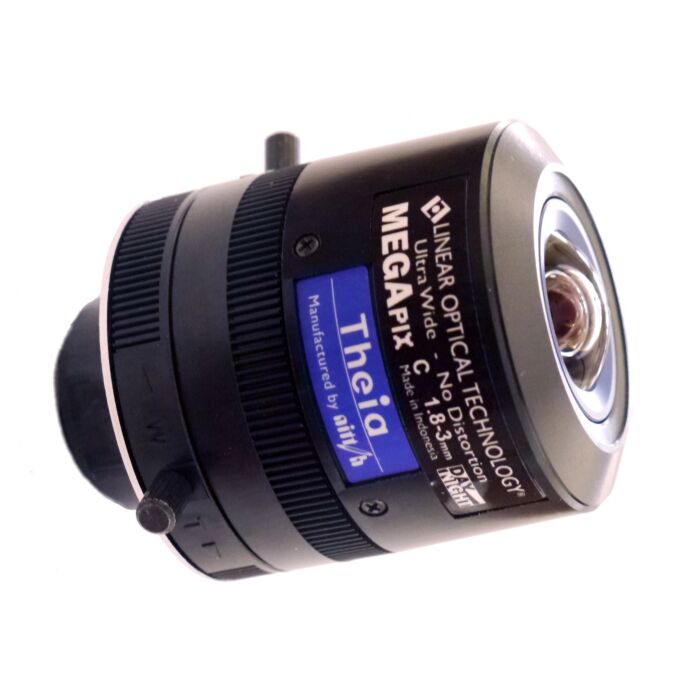

Theia ML183M 1/2.3” format, Manual iris, C mount Lens
1.8 – 3mm varifocal, ultra wide, no distortion, 5+ MPX, Day/Night
SKU
ML183M
Theia's ML183M lenses provide ultra wide field of view without distortion. These are varifocal lenses allowing the user to optimize the field of view from wide angle to ultra wide.
| ML183M | DC-Autoiris |
| Mount | C Mount |
| Focal Length | 1.8-3.0mm |
| Linear Optical Technology® | Yes (Note: this technology causes the image to be flipped) |
| Distortion | <1% |
| Image Circle | Ø7.4mm (at FL 1.3mm) |
| Resolution | Up to 5MPix resolution |
| F/# | F/1.8 to close |
| IR Correction | 435-850nm, <10um focal plane shift |
| EasyZoom™ | Yes |
| Minimum Focus Distance | 30cm |
| Pan Focus | .5m ~ ∞ |
| Lens Length (TTL) | 60.8 – 62.8mm |
| Back Focal Length (BFL) | 7.8mm |
| Chief Ray Angle (CRA) | < 15° |
| Temperature Range | -20C to 60C |
| Weight | 58g |
| Iris Cable Length | N/A |
