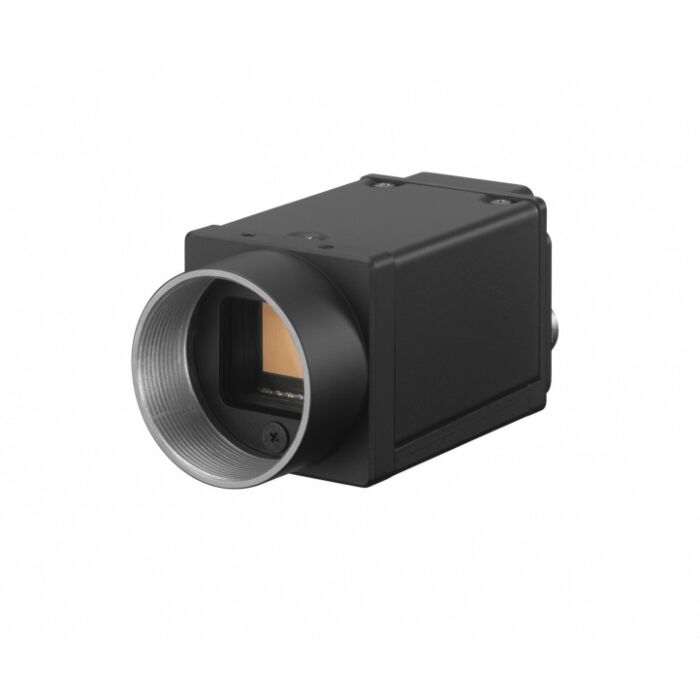

Sony XCG-CG40 1/2.9 Global Shutter CMOS Pregius Sony IMX287 (B/W) 0.4MP GigE With POE Camera
The Sony XCG-CG40 is a powerful machine vision camera designed for high-speed, high-precision industrial applications. Equipped with Sony's IMX287 Pregius 1/2.9” CMOS sensor, this 0.4-megapixel camera offers a global shutter, delivering up to 300 frames per second at full resolution. The global shutter design makes it ideal for capturing fast-moving objects without motion blur, ensuring high-quality images in rapid production lines and fast-paced environments.
Measuring 29 mm x 29 mm x 42 mm and weighing only 65 grams, the XCG-CG40 fits seamlessly into space-limited setups and is an excellent replacement for CCD-equipped cameras. It inherits the mounting dimensions of Sony's XCG-C series, making it highly compatible with existing systems. Power over Ethernet (PoE) and compliance with the GigE Vision 2.0 standard allow for simplified setup and integration. Advanced features like area gain, defect correction, Look Up Table (LUT) adjustments, and a 3 x 3 filter further enhance imaging flexibility and quality.
| Image Sensor | IMX287: 1/2.9-type Global Shutter CMOS Sensor (Pregius) |
| Number of Effective Pixels (H x V) | 728 × 544 |
| Cell Size (H x V) | 6.90 μm × 6.90μm |
| Standard Output Pixels (H x V) | 720 x 540 |
| Frame Rate | 300 fps (8bit, Mono/Raw) |
| Minimum Illumination | 0.5 lx (Iris: F1.4, Gain: +18dB, Shutter: 1/100 s) |
| Sensitivity | F11 (400 lx, Gain: 0 dB, Shutter: 1/30 s) |
| SNR | More than 50 dB (Lens close, Gain: 0 dB, 8 bit) |
| Gain | Auto, Manual: 0 dB to 18 dB |
| Shutter Speed | Auto, Manual: 60 to 1/100,000 s |
| Camera Features | Readout Modes Normal, Partial scan |
| Synchronization | Hardware trigger, Software trigger, PTP (IEEE1588) |
| Trigger Modes | OFF (Free run), ON (Edge detection, Trigger width detection), Special trigger (Burst trigger, Bulk trigger*, Sequential trigger*, Free set sequence*) *Except XCG-CG40 |
| User Set | 16 |
| User Memory | 64 kbytes + 64 bytes × 16 channels |
| Partial Scan | W (Pixel) 8 to 728 H (Line) 8 to 544 |
| GPO | EXPOSURE/Strobe/Sensor lead out/Trigger through/Pulse generation signal/User defined 1, 2, 3 (Output switching) |
| Other Features | Area gain, Defect correction, Shading correction*, Temperature readout, LUT, 3 x 3 filter *Except XCG-CG40 |
| Video Data Output | digital Mono 8, 10, 12 bit ( at the time of shipment 8 bit) |
| Digital Interface | Gigabit Ethernet (100BASE-TX / 1000BASE-T) |
| Camera Specification | GigE Vision® Version 2.0/1.2 |
| Digital I/O | ISO IN (x1), TTL IN/OUT (x2, selectable) |
| Lens Mount | C mount |
| Flange Back | 17.526 mm |
| Power Requirements | DC +12 V (10.5 V to 15.0 V), IEEE802.3af (37 V to 57 V) |
| Power Consumption | DC +12 V 3.3 W (max.), IEEE802.3af 4.0 W (max.) |
| Operating Temperature | –5 °C to +45 °C (23 °F to 113 °F) |
| Performance Guarantee Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | 20% to 80% (no condensation) |
| Storage Humidity | 20% to 80% (no condensation) |
| Vibration Resistance | 10 G (20 Hz to 200 Hz 20 minutes for each direction -x, y, z ) |
| Shock Resistance | 70 G |
| Dimensions (W x H x D) | 29 × 29 × 42 mm (1 3/16 × 1 3/16 × 1 11/16 inches) (excluding protrusions) |
| Mass | Approx. 65 g (2.3 oz) |
| MTBF | 58,525 hours (Approx. 6.7 years) |
| Regulations | UL60950-1, FCC Class A, CSA C22.2-No.60950-1, IC Class A Digital Device, CE : EN61326 (Class A), AS EMC: EN61326-1, VCCI Class A, KCC, CISPR22/24+IEC61000-3-2/-3 |
| Supplied Accessories | Lens mount cap (1), Safety Regulations (1) |
