Sony SRG-X400 IP 4K* Pan-Tilt-Zoom Camera - Black

Sony SRG-X400 IP 4K* Pan-Tilt-Zoom Camera - Black

Sony BRC-X400 IP 4K Pan-Tilt-Zoom Camera - Black

Sony BRC-X400 IP 4K Pan-Tilt-Zoom Camera - Black

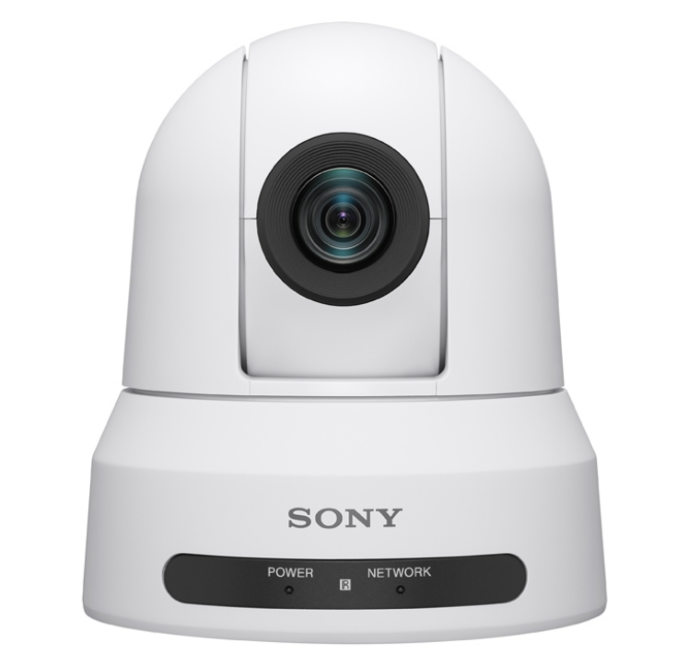

Sony SRG-X400 IP 4K* Pan-Tilt-Zoom Camera - White

1/2.5 Exmor R CMOS, Approx. 8.5M pixels, 1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
SKU
SRG-X400-White

The versatile SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces to houses of worship, lecture halls and medical environments.

The camera's 1/2.5-type Exmor R™ sensor captures up to 4K* resolution images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD*** (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.

High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync*** function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.

Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI®-enabled devices.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Picture Setting File*** allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC.

Features:
Excellent images, even in low light
4K Upgrade Option
Up to 40x zoom
Wide viewing angle
Ideal for lecture capture
High speed movement and Picture Freeze Preset
Smooth pan-tilt-zoom
Simpler installation, lower costs
Support for NDI®*|HX
Remote viewing
Fast, fuss-free set-up

Applications:
Live Sports/Broadcasts
House Of Worship
Professional Broadcast
Auditoriums
Courtrooms

Image Sensor
1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels
Signal System
2160/29.97p, 25p, 23.98p
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p
4K Capability
Yes (built-in 4K functions)
Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution
1700 TV lines (Center) (4K)
1000 TV lines or higher (Center) (FHD)
Gain
Auto/Manual (0 to +48 dB) (High Sensitivity On)
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Exposure Control
Auto, Manual, Priority AE (Shutter, Iris)
White Balance
Auto1/Auto2/One Push WB Indoor/Outdoor/Manual
Zoom Capability
30x (4K with CIZ), 40x (HD with CIZ), Max. 80x (HD with CIZ* and Tele Convert Mode)
*CIZ = Clear Image Zoom
Focusing System Auto/Manual
Horizontal Viewing Angle Approx. 70° (Wide)
Focal Length f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8
Minimum Object Distance 80 mm (Wide)~
800 mm (Tele)
Pan/Tilt Angle Pan: ±170°
Tilt: +90°/-20°
Pan/Tilt Speed (Max.) Pan: 300°/s
Tilt: 126°/s
Pan/Tilt Speed Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow) Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode Yes
Pan/Tilt Operation Noise NC30 or less *
* Sony measurement conditions
Preset Position 256 (CGI)
100 (VISCA)
Picture Freeze Preset Yes
Preset Mode1/Mode2 Yes
PTZ Trace Memory Yes
PTZ Motion Sync Yes
IP Video Resolution 3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360
Compression Format H.264: High, Main, Baseline Profile
H.265: Main Profile
Maximum Frame Rate H.264: 60fps
H.265: 60fps
Bitrate Compression Mode CBR/VBR (selectable)
Range Of Bitrate Setting 512 Kbps ~50 Mbps
Multi Streaming Capability 3
Maximum Number Of Clients 5
Protocols IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDI®|HX Capability Yes (requires a license sold seperately)
Auto ICR Yes
Day/Night Yes
Visibilty Enhancer Yes
Image Stabilization Yes
Image Flip Yes
Picture Setting File Yes
Picture Profile Preset Yes
Channel 2ch
Audio Codec AAC LC 128kbps/ST (IP)
AAC LC 256kbps/ST (IP)
Setting Option Auto Level Control (ALC): On/Off
Equalizer: Off, Low cut, Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec
Embedded Audio in Baseband Video Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming Yes
4K Video Output HDMI x1 and IP (streaming) x1
HD Video Output 3G-SDI x1, HDMI x1, IP (streaming) x1
Remote Video Format Switching Yes
HDMI Color Space YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit
Camera Control Interface VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45
IR Remote Control Yes
Microphone Input Mini-phone (φ3.5mm) x2 (Mic/Line Selectabe)
Sync. System EXT/INT
Power Connector Type IEC60130-10 (JEITA standard RC-5320A) TYPE4
Power Requirements DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption 25.5 W Max.
Operating Temperature 0 °C to 40 °C
32 °F to 104 °F
Storage Temperature -20 °C to +60 °C
-4 °F to +140 °F
Dimensions 158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch
Mass *1 Approx. 1.8 kg
3 lb 15.5 oz
Camera Body Color White/Black
Size of Screw Hole for Tripod 1/4-20UNC x1
Mountable Angle < ±15°
Ceiling Mount Yes
Supplied Accessories AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
