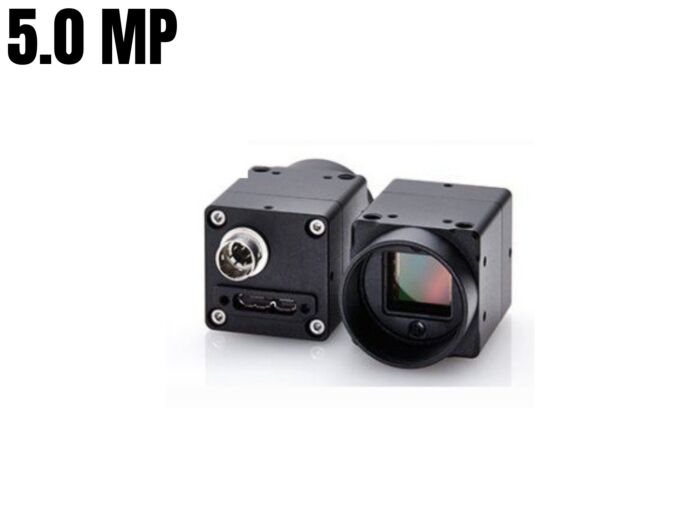

Omron STC-MCS510U3V USB 3.0 2/3" Sony IMX250 CMOS, 5.1 MP, Color, C Mount Camera
*Please note tariff fee is included in price*
Omron STC-MCS510U3V USB 3.0 camera with 2/3” 5.1MP global shutter CMOS sensor (Sony IMX250LQR-C). Features include up to 75.7 fps, multi-ROI, auto exposure, USB3 Vision compliance, and robust C-mount compatibility. NDAA CompliantThe Omron STC-MCS510U3V camera is engineered for high-performance imaging in demanding industrial and scientific applications. It features a 2/3” 5.1MP progressive scan color CMOS sensor (Sony IMX250LQR-C) with a global shutter, ensuring precise image capture without motion distortion. The camera offers an active resolution of 2448 (H) x 2048 (V) pixels and a pixel size of 3.45 µm, delivering sharp, detailed images even in dynamic environments.
With support for multiple frame rates and bit depths, the STC-MCS510U3V achieves up to 75.7 fps in 8-bit, 58.3 fps in 10-bit packed, and 50.9 fps in 12-bit packed modes. It supports free-run and external triggering modes, including hardware, software, edge-preset, and pulse-width triggers. Advanced auto-image controls such as auto exposure, auto gain, and auto white balance ensure optimized image quality across varying conditions.
The camera’s ROI and multi-ROI capabilities allow users to focus on critical areas with adjustable horizontal and vertical offsets. It includes pixel defect correction (up to 64 points) and features adjustable gamma values ranging from 0.1 to 4.0 for fine-tuning image brightness and contrast. Connectivity is streamlined with a USB 3.0 Micro B interface, offering super-speed data transfer compliant with USB3 Vision® and GenICam standards.
Designed for versatility, the STC-MCS510U3V supports a C-mount lens and operates efficiently with a power consumption of less than 4.2 W. Its lightweight and compact design, combined with robust features, make it a perfect choice for machine vision, quality inspection, and medical imaging applications.
Features:
- 2/3" 5.1MP Sony CMOS global shutter sensor
- USB 3.0 interface, 75.7 fps max (8-bit)
- Multi-ROI and adjustable gamma (0.1–4.0)
- Auto exposure, gain, white balance
- Pixel defect correction (up to 64 points)
- USB3 Vision and GenICam compliant
- C-mount lens support
Applications:
- Machine vision
- Industrial inspection
- Scientific imaging
- Medical diagnostics
- Robotics and automation
| Image Sensor | 2/3” 5.1M Progressive Color CMOS (Sony: IMX250LQR-C) |
| Shutter Type | Global |
| Active Picture Element | 2448 (H) x 2048 (V) |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Sync System | Free run, External trigger (Hardware, Software) |
| Maximum Frame Rate (Full Scan) | - |
| -8Bit Output | 75.7 fps |
| -10Bit Output | 37.6 fps |
| -10bit Packed output | 58.3 fps |
| -12Bit Output | 37.6 fps |
| -12bit Packed output | 50.9 fps |
| ADC bit width | 10bit / 12bit |
| Video Format | 8/10/12 bit output (Support packed on 10bit, 12bit) |
| Noise Level | - |
| -8Bit Output | - |
| -10bit / 10bit Packed Output | ≤ 12 LSBs (Gain 0 dB) |
| -12bit / 12bit Packed Output | ≤ 48 Digit (gain 0 dB) |
| Sensitivity | 1240 Lux |
| Exposure Time | - |
| -8Bit Output | 20.1μseconds to 26 seconds |
| -10Bit Output | 26.5μseconds to 53 seconds |
| -10bit Packed output | 22.0μseconds to 34 seconds |
| -12Bit Output | 26.5μseconds to 53 seconds |
| -12bit Packed output | 23.2μseconds to 39 seconds |
| Gain | - |
| -Analog (Gain) | 0 to 24 dB |
| -Digital (Gain) | 0 to 6 dB |
| Black Level | - |
| -8Bit Output | 0 to 31 |
| -10bit / 10bit Packed Output | 0 to 127 |
| -12bit / 12bit Packed Output | 0 to 511 |
| White Balance | -40dB to 12dB |
| ROI (AOI) | Horizontal: 64 to 2448 (2432 on Packed) / Vertical: 32 to 2048 Adjustable Steps for offset: 16 pixels in horizontal direction (64 pixels on Packed) / 4 lines in vertical direction Adjustable Steps for offset: 4 pixels in horizontal direction / 4 lines in vertical direction |
| Multi ROI | 16 Regions (Horizontal 4 regions x Vertical 4 regions) |
| Gamma | Gamma Table =0.1 to 4.0 |
| Binning | N/A |
| Decimation | Individual x2 Horizontal, Vertical Decimation |
| Image Flip | Horizontal / Vertical / Horizontal and Vertical / OFF |
| Pixel Defect Correction | Up to 64 points |
| Auto Image Control | - |
| -Auto Exposure | Support |
| -Auto Gain | Support |
| -Auto White Blance | Support |
| Operating Mode | Free-run/ Edge-preset Trigger/ Pulse width Trigger/ Start Stop Trigger |
| User Setting Mode | Support |
| Communication | Via USB3.0 bus |
| Lens Mount | C Mount |
| Interface | USB3.0 Super Speed (USB3.0 Micro B) |
| Protocol | USB3 Vision® 1.0.1, GenICam Standard Version (SFNC 2.2, PFNC 2.0) compliant and Sentech’s unique protocol (on Normal SDK, Trigger SDK) |
| Input/Output | Three GPIO, One Camera Hardware Reset |
| Power | - |
| Input Voltage | +5 Vdc through USB connector |
| Consumption | Less than 4.2 W |
