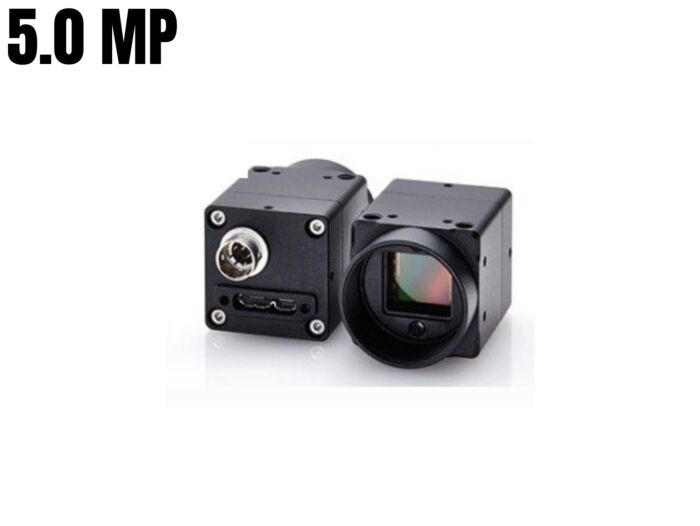

Omron STC-MBS510U3V USB 3.0 2/3" Sony IMX250 CMOS, 5 MP, Monochrome, C Mount Camera
*Please note tariff fee is included in price*
The Omron STC-MBS510U3V is NDAA Compliant a 5MP monochrome camera with a Sony IMX250 CMOS sensor, global shutter, up to 75.7 fps, advanced ROI (16 regions), USB3 Vision® compliance, and precise image controls for high-performance imaging tasks.The Omron STC-MBS510U3V is a high-performance monochrome camera engineered for precision imaging applications. Featuring a 2/3” 5-megapixel Sony IMX250LLR-C CMOS sensor with global shutter technology, this camera ensures sharp, artifact-free image capture even with fast-moving subjects. With an active resolution of 2448 x 2048 pixels and a compact cell size of 3.45 µm, it offers high fidelity and detailed imagery for critical applications.
Capable of multiple output formats, the camera supports 8-bit, 10-bit (up to 75.7 fps), 12-bit, and packed outputs, with ADC bit widths of 10 or 12 bits. It achieves maximum sensitivity at 550 Lux, while its extensive gain control (0–24 dB analog, 0–6 dB digital) and black level adjustment (up to 511 steps) ensure adaptability across various lighting conditions.
The STC-MBS510U3V includes advanced features such as multi-region ROI (up to 16 regions), horizontal and vertical binning/decimation, gamma correction (0.1 to 4.0), and pixel defect correction for up to 64 points. The camera supports free-run, edge-preset, pulse-width, and start/stop trigger modes with precise control via USB3 Vision® 1.0.1 and GenICam SFNC protocols.
Built with a robust USB 3.0 SuperSpeed interface, the camera offers high-speed data transfer and reliable communication. Its C-mount lens compatibility and compact design make it versatile for integration into diverse imaging systems. Operating with a power consumption of less than 4.2 W, the Omron STC-MBS510U3V delivers high-efficiency performance for demanding industrial, scientific, and machine vision tasks.
Features:
- 2/3” 5MP Sony IMX250 CMOS sensor
- Global shutter for motion capture
- 2448 x 2048 resolution
- Up to 75.7 fps (8-bit output)
- USB 3.0 interface, USB3 Vision® compliance
- Advanced ROI (16 regions), binning, decimation
- Gamma correction (0.1–4.0), pixel defect correction
- Compact C-mount design
Applications:
- Machine vision
- Industrial inspection
- Scientific imaging
- Robotics and automation
- High-speed motion analysis
| Image Sensor | 2/3” 5M Progressive Monochrome CMOS Sony:IMX250LLR-C |
| Shutter Type | Global |
| Active Picture Element | 2448 (H) x 2048 (V) |
| Cell Size | 3.45 (H) x 3.45 (V) µm |
| Sync System | Free run, External trigger (Hardware, Software) |
| Maximum Frame Rate (Full Scan) | - |
| -8Bit Output | 75.7 fps |
| -10Bit Output | 37.6 fps |
| -10bit Packed output | 58.3 fps |
| -12Bit Output | 37.6 fps |
| -12bit Packed output | 50.9 fps |
| ADC bit width | 10bit / 12bit |
| Video Format | 8/10/12 bit output (Support packed on 10bit, 12bit) |
| Noise Level | - |
| -8Bit Output | - |
| -10bit / 10bit Packed Output | ≤ 12 LSBs (Gain 0 dB) |
| -12bit / 12bit Packed Output | ≤ 48 Digit (gain 0 dB) |
| Sensitivity | 550 Lux |
| Exposure Time | - |
| -8Bit Output | 20.1μseconds to 26 seconds |
| -10Bit Output | 26.5μseconds to 53 seconds |
| -10bit Packed output | 22.0μseconds to 34 seconds |
| -12Bit Output | 26.5μseconds to 53 seconds |
| -12bit Packed output | 23.2μseconds to 39 seconds |
| Gain | - |
| -Analog (Gain) | 0 to 24 dB |
| -Digital (Gain) | 0 to 6 dB |
| Black Level | - |
| -8Bit Output | 0 to 31 |
| -10bit / 10bit Packed Output | 0 to 127 |
| -12bit / 12bit Packed Output | 0 to 511 |
| White Balance | N/A |
| ROI (AOI) | Horizontal: 64 to 2448 (2432 on Packed) / Vertical: 32 to 2048 Adjustable Steps for offset: 16 pixels in horizontal direction (64 pixels on Packed) / 4 lines in vertical direction Adjustable Steps for offset: 4 pixels in horizontal direction / 4 lines in vertical direction |
| Multi ROI | 16 Regions (Horizontal 4 regions x Vertical 4 regions) |
| Gamma | Gamma Table =0.1 to 4.0 |
| Binning | Individual x2 Horizontal, Vertical Binning (Horizontal: Average, Vertical: Addition) |
| Decimation | Individual x2 Horizontal, Vertical Decimation |
| Image Flip | Horizontal / Vertical / Horizontal and Vertical / OFF |
| Pixel Defect Correction | Up to 64 points |
| Auto Image Control | - |
| -Auto Exposure | Support |
| -Auto Gain | Support |
| -Auto White Blance | N/A |
| Operating Mode | Free-run/ Edge-preset Trigger/ Pulse width Trigger/ Start Stop Trigger |
| User Setting Mode | Support |
| Communication | Via USB3.0 bus |
| Lens Mount | C Mount |
| Interface | USB3.0 Super Speed (USB3.0 Micro B) |
| Protocol | USB3 Vision® 1.0.1, GenICam Standard Version (SFNC 2.2, PFNC 2.0) compliant and Sentech’s unique protocol (on Normal SDK, Trigger SDK) |
| Input/Output | Three GPIO, One Camera Hardware Reset |
| Power | - |
| Input Voltage | +5 Vdc through USB connector |
| Consumption | Less than 4.2 W |
