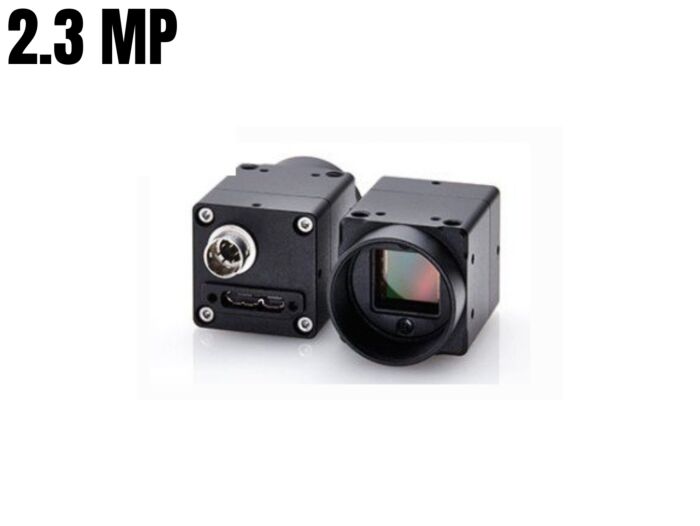

Omron STC-MBS231U3V USB 3.0 1/1.2” Sony IMX249 CMOS, 2.3 MP, Monochrome, C Mount Camera
*Please note tariff fee is included in price*
The Omron STC-MBS231U3V is NDAA Compliant a robust industrial USB 3.0 camera featuring a 1/1.2” Sony IMX249 global shutter sensor, up to 41.6 fps at 1920 x 1200 resolution, adjustable ROI, multi-trigger modes, and advanced defect correction for precision imaging in industrial environments.The Omron STC-MBS231U3V is a high-performance industrial camera equipped with the 1/1.2” 2.35 MP Sony IMX249 CMOS sensor, delivering superior imaging quality with a global shutter and progressive scanning system. With an active pixel resolution of 1920 (H) x 1200 (V) and pixel size of 5.86 µm, this camera provides precise image capture suitable for demanding applications.
This USB 3.0 camera achieves frame rates up to 41.6 fps in full resolution (8-bit and 10-bit output) and offers higher frame rates for variable regions of interest (ROI), such as 99.7 fps at 640 x 480 resolution (8-bit/10-bit). Featuring adjustable ROI with steps of 16 pixels (horizontal) and 4 lines (vertical), the STCMBS231U3V ensures flexibility for custom imaging needs.
The electronic shutter supports exposure times from 33.12 µsec to 81.3 sec (8-bit output), complemented by analog and digital gain controls for fine image adjustments. Integrated Pixel Defect Correction (up to 64 pixels) ensures consistent quality, while operational modes include free-run, edge-preset trigger, pulse-width trigger, and start/stop trigger. The camera supports Mono8, Mono10, and Mono12 video output formats for maximum compatibility.
The durable housing (28 x 28 x 40 mm) features a C-mount lens interface and withstands environmental conditions with a vibration resistance of 10G and shock resistance up to 38G. Its RoHS-compliant design ensures environmental safety, while the USB 3.0 Micro B interface ensures fast and reliable data transfer with a power consumption of less than 3W.
Features:
- 1/1.2" 2.35 MP Sony IMX249 CMOS, Global Shutter
- 1920 x 1200 (5.86 µm pixel size)
- Up to 41.6 fps (Full resolution, 8-bit/10-bit)
- Customizable, up to 16 regions with adjustable size
- 33.12 µsec to 81.3 sec (8-bit output)
- Analog (0-24 dB), Digital (0-6 dB)
- Up to 64 pixels
- Global Shutter
- Internal sync system
- Mono8, Mono10, Mono12
- USB 3.0 MicroB, 3 GPIO, 1 hardware reset
- Power Consumption: <3W
- Lens Mount: C-mount
Applications:
- Industrial machine vision
- High-speed imaging systems
- Quality control and inspection
- Autonomous robotics
- Surveillance and security
- Medical imaging
- Optical inspection for manufacturing processes
| Image Sensor | 1/1.2” 2.35 Megapixel Monochrome (Sony: IMX249) |
| Active Picture Element | 1920 (H) x 1200 (V) |
| CCD Effective Picture Element | 5.86 (H) x 5.86 (V) μm |
| Scanning System | Progressive |
| Shutter Type | Global Shutter |
| Scanning Mode | Full Scanning, Variable ROI (Horizontal and Vertical) |
| Maximum Frame Rate (in Full Scanning, Free run Model) | 1920 x 1200 : 41.6 fps (8bit output), 41.6 fps (10bit output), 32.4 fps (12bit output) *Frame rate will drop if connected to the USB 2.0 port |
| Maximum Frame Rate (in ROI, Free run Mode) | 1280 x 1024 : 48.5fps(8bit/10bit output), 37.8fps(12bit output) 640 x 480 : 99.7fps(8bit/10bit output), 77.7fps(12bit output) |
| Sync System | Internal |
| Video Output Format | Mono8 / Mono10 / Mono12 (Default: Mono8) |
| S/N Ratio (8bit) | Less than 3 digit (Gain 0 dB) |
| Sensitivity *1 | 570 Lux (Typical) |
| Electronic Shutter | Exposure Time: 33.12 usec to 81.3 sec (in full scanning mode, 8bit output) Exposure Time: 38.62 usec to 104.3 sec (in full scanning mode, 10bit / 12bit output) |
| Gain | - |
| - Analog | 0 to 24 dB |
| - Digital | 0 to 6 dB |
| Offset | - |
| - Analog | RAW8bit: 0 to 31 digit, RAW12bit: 0 to 511 digit |
| ROI *2 | ROI (Horizontal: 32 to 1920 pixels / Vertical: 32 to 1200 lines）(Default: 1920 x 1200） Adjustable Steps for offset: 2 pixels in horizontal direction and 2 lines in vertical direction Adjustable Steps for image size: 16 pixels in horizontal direction and 4 lines in vertical direction Adjustable Steps for ROI 16 Regions, 16 pixels in horizontal direction and 4 lines in vertical direction |
| Binning Function *3 | N/A |
| Decimation Funtion *4 | Individual x2 Horizontal, Vertical Decimation (Frame rate increases with the vertical decimation, but the frame rate does not increase with the horizontal decimation) |
| ALC | AE, AGC (Default AE: OFF, AGC: OFF) |
| White Balance | N/A |
| Mirror Image | Horizontal / Vertical / Horizontal and Vertical (Default: OFF) |
| Pixel Defect Correction | Up to 64 pixels (Default: ON) |
| Operational Mode *5 | Free-run / Edge-preset Trigger / Pulse width trigger / Start/Stop trigger*6 |
| User Setting Storage | Supported |
| Interface | USB 3.0 Super Speed (USB 3.0 Micro B) |
| Input / Output | Three GPIO, One Camera Hardware Reset |
| Power *7 | - |
| - Input Voltage | +5V (typ.) (Conform to USB Standard) |
| - Consumption | Less than 3.0 W |
| Dimensions | C Mount: 28 (W) x 28 (H) x 40 (D) mm *excluding the connectors |
| Lens Mount | C Mount |
| Optical Filter | No IR cut filter |
| Optical Center Accuracy | Positional Accuracy in H and V directions: +/- 0.3 mm, Rotational accuracy of H and V: +/- 1.5 deg. |
| Weight | Approx. 48g |
| Interface Connector | USB Connector: USB 3.0 MicroB type / I/O Connector: HR10A-7R-6PB (Hirose) or equivalent |
| Operating Temperature | - |
| - Minimum | Environmental Temperature: 0 deg. ºC |
| - Maximum | Camera housing temperature (top plate) shall not exceed 60 deg. ºC *1 |
| Storage Temperature | Environmental Temperature: -30 to +65 ºC, Environmental Humidity: 0 to 85% |
| Vibration | 20Hz to 200Hz to 20Hz (5min./cycle), acceleration 10G, XYZ 3 directions 30 min. each |
| Shock | Acceleration 38G, half amplitude 6 ms, XYZ 3 directions 3 times each |
| Standard Compliancy | EMS: EN61000-6-2, EMI: EN55011 |
| RoHS | RoHS Compliant |
