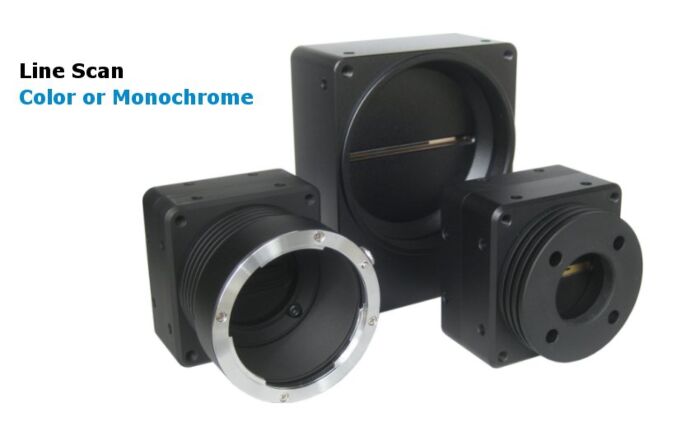

Omron FS-B16KU35CLU (FSB16KU35CLU) 16MP Monochrome Line Scan CL Camera
SKU
Sentech FS-B16KU35CLU 16MP Line Scanning Camera
Quick Overview
The FS-B16KU35CLU is NDAA Compliant a 16MP monochrome Line Scanning Camera Link Camera with High-speed exposure control, External trigger. (CMOS Sensor: DR-16k-3.5 - AWAIBA)
Sentech's FS-B16KU35CLU includes Camera Link Output and more.
Features:
Applications:
| Model | FS-B16KU35CLU |
| Image Sensor | 16k CMOS image sensor DR-16k-3.5 - AWAIBA |
| Pixel Size | 3.5(H) x 3.5(V) µm (3.5 µm pitch) |
| Photo array length | 57.344 mm |
| Data rate | 85MHz x 8TAP |
| Video output | Camera Link Full configuration (8bit) Medium/Base configuration (8bit/10bit/12bit) |
| Power Input | +12 Vdc to +24 Vdc |
| Power Consumption | 7.2W(TYP) |
| Communication | RS232 via Camera Link connector |
| Function | High speed exposure control External trigger control Flat Field Correction(FFC) FieldUpdate |
| Fill Factor | 100% |
| Dimensions | 80(W) x 100(H) x 38.1(D) mm (excluding the connector) |
| Lens mount | M-72 |
| Weight | about 453g |
| Interface connectors | Camera Link connector (MDR) x1 Power connector (6pin connector) |
| ROHS | RoHS compliance |
| Operating Temp. | 0 to 40 deg. C |
| Storage Temp. | -30 to 65 deg. C |
