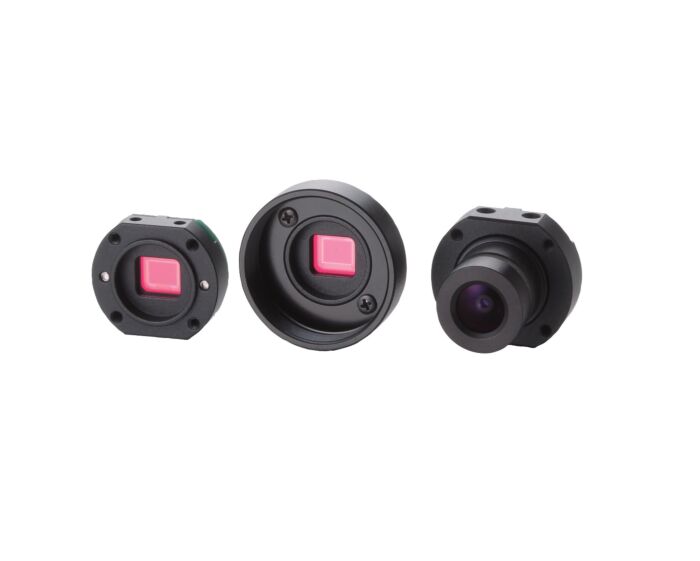

Omron STC-S133 Color TV Format Board Level Series
The STC-S133 Series from Sentech are NDAA Compliant 1/3.2" 0.65M TV Format Color CMOS Board Level Cameras. (CMOS Sensor: ISX017)
Model # Video Format Lens Mount Filter
NTSC
STC-S133N-NF NTSC No Lens No Dual Pass Filter
STC-S133N NTSC No Lens Dual Pass Filter
STC-S133N-CS NTSC CS Mount Dual Pass Filter
STC-S133N-L NTSC Fixed Lens Dual Pass Filter
STC-S133N-LS NTSC Fixed Lens Holder Short Dual Pass Filter
PAL
STC-S133P-NF PAL No Lens No Dual Pass Filter
STC-S133P PAL No Lens Dual Pass Filter
STC-S133P-CS PAL CS Mount Dual Pass Filter
STC-S133P-L PAL Fixed Lens Dual Pass Filter
STC-S133P-LS PAL Fixed Lens Holder Short Dual Pass Filter
The Omron STC-S133 Series is a compact, high-performance camera designed for diverse imaging applications. Built with a SONY CMOS sensor, this board camera excels in delivering sharp, high-quality visuals, even in tight spaces. The small form factor of the camera makes it an ideal solution for systems where space is limited, without compromising on image clarity or performance.
This model features mountless, fixed focus lenses, and is compatible with CS mount lenses, allowing for versatile configuration in different setups. Whether used in broadcast, industrial imaging, machine vision, microscopy, or medical imaging, the STC-S133 Series ensures exceptional imaging quality and seamless integration into a variety of environments. Its fixed-focus design enhances ease of use by eliminating the need for adjustments after installation, streamlining the setup process in time-sensitive applications.
Designed to meet the stringent demands of professional environments, this camera performs reliably across different sectors, offering a robust solution for precise, real-time image capture.
Features:
- SONY CMOS sensor adopted small size board camera
- Fulfilling the requirements to install in small space for its compact size
- Mountless, fixed focus lenses and CS mount available
Applications:
- Broadcast
- Industrial Imaging
- Machine Vision
- Microscopy
- Medical Imaging
| Resolution | 0.65 MP | 0.65 MP |
| Model No. | STC-S133N | STC-S133P |
| Video Format | NTSC | PAL |
| Effective Pixels | 1280 x 486 | 1211 x 576 |
| Sensor Size | 1/3.2" | 1/3.2" |
| Cell Size (H x V, μm) | 3.5 x 3.5 | 3.5 x 3.5 |
| Imaging Area (H x V x D, mm) | 4.480 x 1.701 x 4.792 | 4.238 x 2.016 x 4.693 |
| Sensor | ISX017 | ISX017 |
| Lens Mount | No lens, Fixed lens, CS Mount | No lens, Fixed lens, CS Mount |
