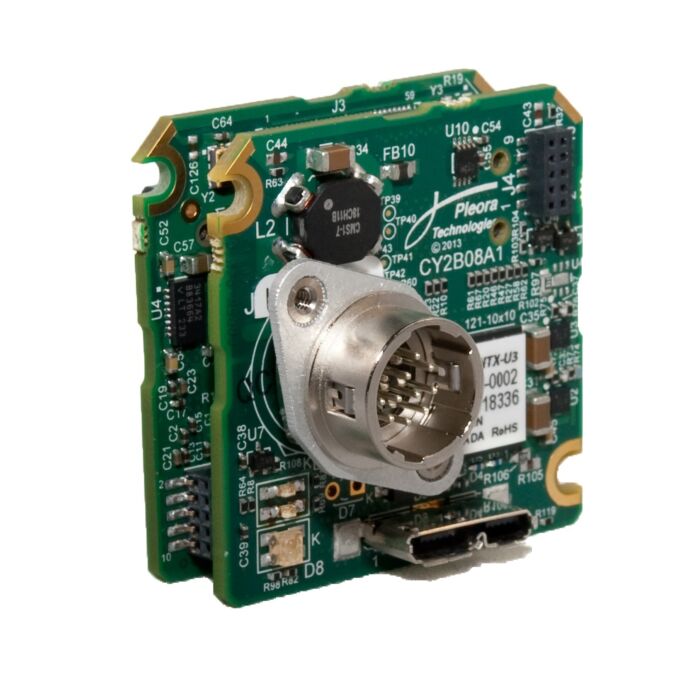

Pleora iPORT NTx-U3 (903-0003) Embedded Video Interface USB Powered Development Kit
Unlock High-Performance Connectivity with Pleora iPORT NTx-U3 Development Kit
Revolutionize your industrial camera and machine vision system capabilities with Pleora’s iPORT NTx-U3 Embedded Video Interface hardware. This cutting-edge development kit offers a seamless solution for integrating USB 3.0 video connectivity into cameras and imaging systems, providing users with unparalleled performance and flexibility.
The iPORT NTx-U3 hardware efficiently converts video data into packets at throughputs of up to 3 Gbps, ensuring fast and reliable transmission. With low and consistent latency, the packetized video is seamlessly sent over a USB 3.0 link to receiving software. The kit includes the iPORT NTx-U3 OEM Board Set, USB-powered (903-0002), NTx-Mini adapter board with 3 flat flex cables, prober board, USB 3.0 cable, and eBUS SDK USB stick, offering comprehensive development support.
Supported by Pleora’s feature-rich eBUS™ SDK application tool kit, designers can rapidly prototype and deploy production-ready software to facilitate video transmission over GigE, 10 GigE, and USB 3.0 using the same application programming interface (API). From industrial inspection to quality control, robotics, surveillance, and medical imaging, the Pleora iPORT NTx-U3 Development Kit empowers users to unlock new levels of efficiency and performance in their applications. Experience seamless integration and high-performance connectivity with Pleora iPORT NTx-U3.
Features:
- Seamless integration of USB 3.0 video connectivity
- High-performance throughput of up to 3 Gbps
- Comprehensive development support with eBUS SDK
- Rapid prototyping and deployment capabilities
- Compatible with GigE, 10 GigE, and USB 3.0
Applications:
- Industrial inspection
- Quality control
- Robotics
- Surveillance
- Medical imaging
|
User Circuitry Interface |
100-pin Samtec Connector: LSHM-150-04.0-L-DV-A-N-TR |
|
External Interface |
12-pin Hirose Connector: HR10A-10P-12P(73) |
|
USB 3.0 Interface |
10-pin USB 3.0 Micro-B receptacle |
|
USB 3.0 Controller |
Cypress FX3 |
|
FPGA |
Altera Cyclone V |
|
Image Buffer |
120 Mb 16-bit wide DDR3 |
|
Persistent Memory |
128 Mb Serial FLASH |
|
Clock Generator |
Included |
|
JTAG Header |
Connection to FPGA |
|
Video Input |
2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Inputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Outputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Camera Control Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 connections routed to User Circuitry Interface |
|
GPIO Outputs |
3 connections routed to User Circuitry Interface |
|
Serial Communications Input |
Connection routed to User Circuitry Interface |
|
Serial Communications Output |
Connection routed to User Circuitry Interface |
|
Number of Channels |
1 |
|
Scan Modes |
Area Scan (Progressive) and Line Scan |
|
Pixel Depth (bits) |
8, 10, 12, 14, 16, 24, 32 |
|
Pixel Clock |
|
|
Taps per Data Channel |
Up to 4 |
|
Image Width (pixels) |
|
|
Image Height (pixels) |
|
|
Windowing/Region of Interest |
Yes |
|
Tap Reconstruction |
Interleaved only |
|
Size |
37.0 mm x 37.0 mm x 23.1 mm (approximate, excluding external interface connector) |
|
Weight |
25 grams |
|
Operating Temperature |
|
|
Storage Temperature |
-40°C to 85°C |
|
Power Supply |
|
|
Power Consumption |
Less than 2 Watts when streaming at 3 Gbps |
|
MTBF at 40°C |
1,277,505 hours |
|
ORDERING INFORMATION |
|
|
900-0001 |
•iPORT NTx-U3 OEM Basic Board Set, USB-powered Without 12-pin circular connector |
|
900-0002 |
•iPORT NTx-U3 OEM Board Set, USB-powered Includes 12-pin circular connector, soldered on with metal flange |
|
900-0004 |
•iPORT NTx-U3 OEM Basic Board Set, external-powered Without 12-pin circular connector |
|
900-0005 |
•iPORT NTx-U3 OEM Board Set, external-powered Includes 12-pin circular connector, soldered on with metal flange |
|
900-0003 |
•iPORT NTx-U3 Development Kit, USB-powered Includes 903-0002, NTx-Mini adapter board with 3 flat flex cables, prober board, USB 3.0 cable, and eBUS SDK USB stick |
|
900-0006 |
•iPORT NTx-U3 Development Kit, external-powered Includes 903-0005, NTx-Mini adapter board with 3 flat flex cables, prober board, power supply, USB 3.0 cable, and eBUS SDK USB stick |
