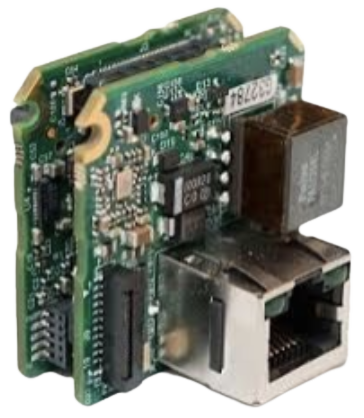

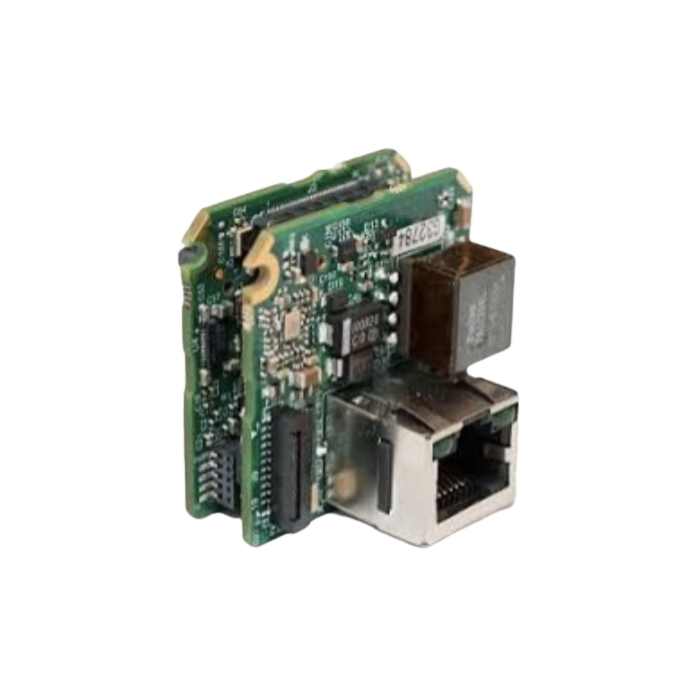

Pleora iPORT NTx-GigE-IND (900-6008) Embedded Video Interface Development Kit
Streamline Industrial Imaging with Seamless GigE Vision Integration
The Pleora iPORT NTx-GigE-IND Development Kit offers a comprehensive solution for seamlessly integrating GigE Vision 2.0 connectivity into industrial cameras, X-ray detector panels, and imaging systems. Featuring the iPORT NTx-GigE Embedded Video Interface hardware, this kit enables rapid data conversion to packets at a throughput approaching 1 Gbps, ensuring high-performance transmission with low and consistent latency over GigE links. Leveraging the IEEE 1588 Precision Time Protocol, precise synchronization of image capture functions is achieved, facilitating exact triggering of image acquisition.
With flexible power options including Power over Ethernet (PoE) and external power, design versatility is enhanced while lowering operational costs. The kit includes essential components such as GigE desktop NIC, PoE Power Injector, and Ethernet cables for convenient setup. Furthermore, Pleora's eBUS SDK empowers developers to prototype and deploy production-ready software efficiently, supporting video transmission over GigE, 10 GigE, and USB 3.0 interfaces through a unified API. Whether in manufacturing, robotics, or inspection applications, the iPORT NTx-GigE-IND Development Kit streamlines integration, enabling enhanced performance and functionality.
Features:
- Seamless integration of GigE Vision 2.0 connectivity
- High-performance data conversion at up to 1 Gbps throughput
- Low and consistent latency over GigE links
- IEEE 1588 Precision Time Protocol for precise synchronization
- Flexible power options including PoE and external power
- Comprehensive kit with essential components included
- Rapid prototyping and deployment with Pleora's eBUS SDK
Applications:
- Manufacturing automation
- Robotics
- Quality control and inspection
- Industrial monitoring and surveillance
- Medical imaging
- Traffic management and monitoring
|
User Circuitry Interface |
100-pin Samtec Connector: LSHM-150-04.0-L-DV-A-N-TR |
|
External Interface |
|
|
GigE Interface |
RJ-45 |
|
GigE PHY |
Marvell 88E1510 |
|
FPGA |
Altera Cyclone V |
|
Image Buffer |
120 Mb 16-bit wide DDR3 |
|
Persistent Memory |
128 Mb Serial FLASH |
|
Clock Generator |
Included |
|
Video Input |
2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Inputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Serial (Bulk) Outputs* |
3 x 2.5 V LVTTL/LVCMOS |
|
Camera Control Outputs |
4 x 2.5 V LVTTL/LVCMOS |
|
GPIO Inputs |
4 connections routed to User Circuitry Interface |
|
GPIO Outputs |
3 connections routed to User Circuitry Interface |
|
Serial Communications Input |
Connection routed to User Circuitry Interface |
|
Serial Communications Output |
Connection routed to User Circuitry Interface |
|
Number of Channels |
1 |
|
Scan Modes |
Area Scan (Progressive) and Line Scan |
|
Pixel Depth (bits) |
8, 10, 12, 14, 16, 24, 32 |
|
Pixel Clock |
|
|
Taps per Data Channel |
Up to 4 |
|
Image Width (pixels) |
|
|
Image Height (pixels) |
|
|
Windowing/Region of Interest |
Yes |
|
Tap Reconstruction |
Interleaved only |
|
Size |
37.0 mm x 37.0 mm x 28.1 mm (approximate, excluding RJ-45 Jack and GPIO board |
|
Weight |
34 grams (includes NTx-GigE, GPIO board, 12-pin circular connector, and flat flex cable) |
|
Operating Temperature |
|
|
Storage Temperature |
-40°C to 85°C |
|
Power Supply |
|
|
Power Consumption |
Less than 2 Watts when streaming at 1 Gbps |
|
MTBF at 40°C |
1 318 440 hours |
|
ORDERING INFORMATION |
|
|
900-6003 |
•iPORT NTx-GigE OEM Board Set |
|
900-6004 |
•iPORT NTx-GigE OEM Kit Includes NTx-GigE OEM board set, GPIO board withunsoldered |
|
900-6006 |
•iPORT NTx-GigE-IND OEM Board Set Industrial-use board set |
|
900-6007 |
•iPORT NTx-GigE-IND OEM Kit Includes NTx-GigE-IND OEM industrial-use board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable |
|
900-6005 |
•iPORT NTx-GigE Development Kit Includes NTx-GigE OEM board set, GPIO board with unsoldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board wityh 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
|
900-6008 |
•iPORT NTx-GigE-IND Development Kit Includes NTx-GigE-IND OEM board set, GPIO board with soldered 12-pin circular connector and flat flex cable, NTx-Mini adapter board with 3 flat flex cables, prober board, Gigabit Ethernet desktop NIC, PoE injector, 2 Ethernet cables, power supply, and eBUS SDK USB stick |
