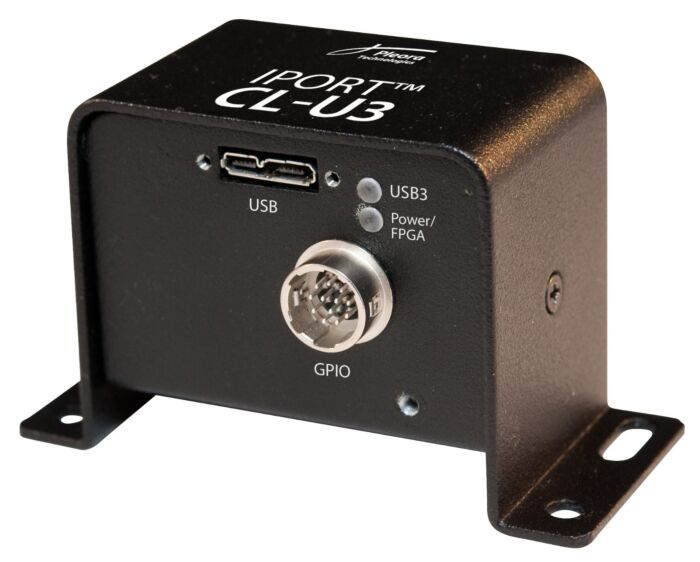

Pleora iPORT CL-U3M-IND (903-0014) External Frame Grabbers With Development Kit
Unlock the Power of USB 3.0 with Pleora iPORT CL-U3M-IND External Frame Grabber Development Kit
In the realm of industrial and machine vision applications, the Pleora iPORT CL-U3M-IND External Frame Grabber Development Kit (903-0014) stands as a beacon of innovation and efficiency. Designed to seamlessly convert Camera Link cameras into native USB3 Vision cameras, this kit revolutionizes the way businesses approach imaging technology. Leveraging the robust capabilities of USB 3.0, including high-bandwidth output and low-latency transmission, this solution ensures a smooth and reliable performance every time.
What sets this kit apart is its ability to provide power over cable (PoCL), eliminating the need for additional power sources and simplifying installation. Whether it's integrating with laptops, embedded systems, or single-board computers, the iPORT CL-U3M-IND Development Kit offers unparalleled flexibility and compatibility. Its industrial-grade construction ensures durability and reliability in the most demanding environments.
The kit includes the industrial-use External Frame Grabber housed in a mountable enclosure, along with essential accessories such as a power supply, USB 3.0 cable, and eBUS SDK USB stick. With integrated PLC and GPIO functionalities, users gain precise control over camera operations, triggering, and synchronization, empowering them to optimize their vision systems with ease.
Experience the future of industrial imaging with the Pleora iPORT CL-U3M-IND External Frame Grabber Development Kit – where performance meets innovation.
Features:
- Converts Camera Link cameras to USB3 Vision
- High-bandwidth output
- Low latency transmission
- Power over cable (PoCL) support
- Simple integration via USB 3.0
Applications:
- Industrial automation
- Robotics
- Quality inspection
- Surveillance
- Medical imaging
| iPORT™ External Frame Grabber | Highly reliable, 3 Gb/s data transfer rate with low, end-to-end latency Contained in surface-mountable enclosure |
| eBUS™ SDK | Driver installation tool Documentation |
| USB3 Vision and GenICam |
Fully-compatible firmware loadGuarantees delivery of all packetsComprehensive data transfer diagnostics |
| Tap Support | Base mode: 1 and 2 tapsMedium mode: 1,2, and 4 taps |
| Tap Geometry | 1X_1Y, 1X2_1Y, 1X, 1X2, 1X4_1Y, 1X4 |
| Video Modes | Mono, Bayer GR, Bayer RG, Bayer GB, Bayer BG, RGB, BGR, Sparse Color Filter Pattern |
| Pixel Depth | 8, 10, 12, 14, 16 bits |
| Pixel Clock | 20 MHz to 85 MHz |
| Frame Buffer | 128 MB |
| USB 3.0 Based | Connection to low-cost, easy-to-use equipment USB3 Vision 1.0 compliant |
| Programmable Logic Controller | Advanced image capture control Integrated with GPIO |
| GPIO | 4 TTL/LVCMOS inputs 3 TTL/LVCMOS outputs |
| GPIO (CL-U3x-IND models only) | 2 RS-422/HVTTL/24V/30V differential or single-ended inputs 2 TTL/LVCMOS inputs 3 TTL/LVCMOS outputs |
| Size (L x W x H) | 38 mm X 82 mm X 51 mm |
| Operating Temperature | 0 °C to 45 °CAllows synchronized capture between multiple camerasAllows camera acquisition to track changing speeds on conveyor belts |
| UART and RS-232 Serial Links (LVCMOS/LVTTL) | Serial control of camera and other devices via PC application over the GigE link |
| Size (L x W x H) | 117mm x 100mm x 83.5mm |
| Operating Temperature | 0°C-45°C -20°C to 60°C (CL-U3x-IND models only) |
| Storage Temperature | -40°C to 85°C |
| External Power Supply | 4.8V to 16V (CL-U3x-IND models only) |
| Power Consumption | 2.5 W |
| Video | SDR-26 (Mini CL) for Camera Link |
| USB | 10-Pin USB 3.0 micro-B Receptacle with locking screw connectors |
| GPIO | Hirose 12-pin (HR10A-10R-12S) |
| Power In | Power over USB cable GPIO Connector (CL-U3x-IND models only) |
| Power Out (CL-U3x-IND models only) | PoCL SDR-26 Connector |
| ORDERING INFORMATION | |
| 903-0020 | iPORT CL-U3M-IND Industrial-use External Frame Grabber board set without enclosure for Camera Link Medium mode with extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL) |
| 903-0010 | iPORT CL-U3M-IND External Frame Grabber for Camera Link Medium mode with 128 MB frame buffer, extended operating temperature range, extensive GPIO, and power over Camera Link (PoCL). |
| 903-0014 | iPORT CL-U3M-IND Evaluation Kit including 903-0010, power supply, USB 3.0 cable, and eBUS SDK USB stick. |
