PixeLINK PL-X957MG-BL 7MP Board Level Mono (Sony IMX420 Sensor) 10 GigE CMOS Camera

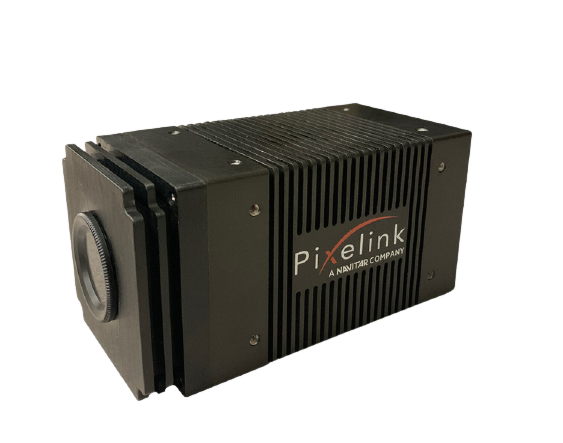

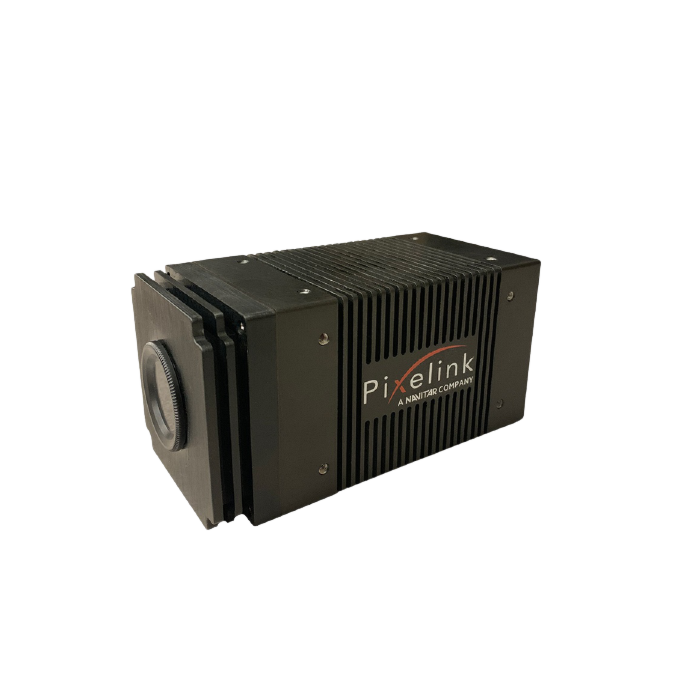

The Pixelink PL-X957 camera, featuring the Sony IMX420 4th generation Pregius CMOS sensor, is ideal for high dynamic range imaging applications requiring high resolution, fast frame rates, and high quality, low noise images.
SKU
PixeLINK PL-X957MG-BL 7MP Mono 10 GigE CMOS Camera

On the PL-X957CG-BL, a key feature of the IMX420 Sony sensor is a Dual ADC mode, where each pixel can be read out with two different gains when embedded. The PL-X957 combines the Dual ADC images into a single hybrid HDR image, directly on camera - thus removing the need for any host processing. Real time on camera HDR is an easy way for the user to gain 6-10dB of additional dynamic range on their image without taxing the CPU or requiring additional complex software algorithms.

Features:

  • Dual ADC Mode
  • High Quantum Efficiency
  • Low Noise
  • High Resolution
  • 10 GigE


Applications:

  • Parts Inspection
  • Strength/Stress Testing
  • Scratch Inspection
  • Automated Inspection
  • Sports Analysis
  • Research
  • Broadcasting
  • 3D Mapping
  • VR and AR Applications
  • Multi-camera Applications Requiring Synchronization
Sensor Sony IMX420
Type CMOS Global Shutter
Resolution 7.1MP (3208 x 2200)
Pixel Pitch 4.5μm x 4.55μm
Active Area 17.6mm diagonal
FPN <0.03% of signal
PRNU  <0.7% of signal
Dynamic Range 72 dB
Bit-Depth 8 or 12-BIT
Color Data Formats Bayer 8, Bayer 12 Packed, Bayer 16 & YUV422, RGB8 BGR 8
Mono Data Formats Mono 8, Mono 12 Packed & Mono 16
Board Level Trigger Connector 8-pin Molex 1.25mm pitch
Enclosed Trigger Connector Hirose M12 (12-pin)
Trigger Software and Hardware
Board Level Trigger Input 1 input, 3.3V (with internal pullup resistor)
Enclosed Trigger Input 1 optically Isolated, 5-12V DC at 4-11 mA
Board Level GPO/Strobe 2 outputs, 3.3V
Enclosed GPO/Strobe 1 optically isolated, 5-12V DC at 4-11 mA, 2 outputs, 3.3V
Board Level GPI Input 1 input, 3.3V
Enclosed GPI Input 1 optically isolated, 5-12V DC at 4-11mA
10GBase-T Connector M12 X-coded (8-pin)
Dimensions 113 x 57 x 57
Weight 560
Mounting C-Mount
Voltage Required 5V (from USB Type-C connector)
48V (802.3bt PoE)
