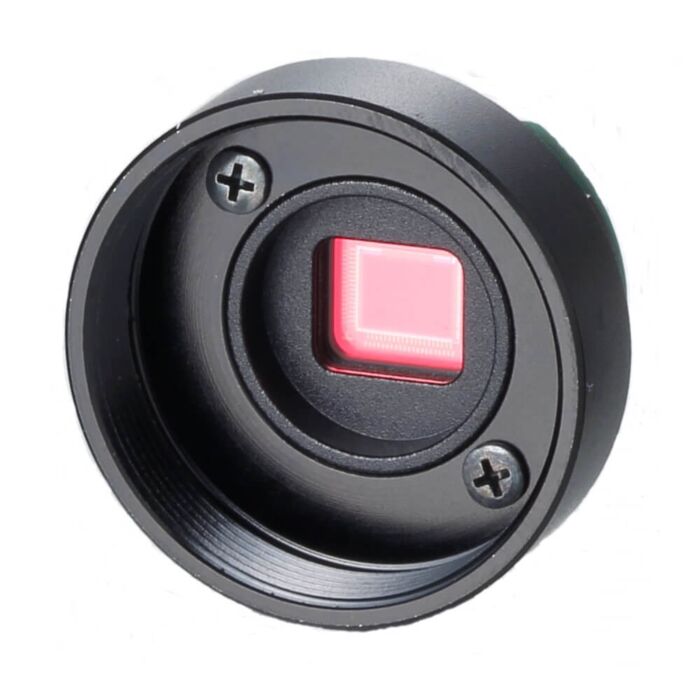

Omron STC-S133UVC-BLCS UVC 1.3 MP, 1/3.2" Sony ISX017 CMOS, 60fps, USB 3.0, CS Mount Board Level Area Scan Camera
*Please note tariff fee is included in price*
Omron STC-S133UVC-BLCS is NDAA Compliant a 1.3MP UVC area scan camera with a 60fps frame rate, 1280x960 resolution, and a 1/3.2" Sony ISX017 CMOS sensor. It includes a CS-mount, IR cut filter, and rolling shutter for industrial applications requiring high-speed, high-precision imaging.The Omron STC-S133UVC-BLCS is a high-performance UVC area scan camera featuring a 1.3MP resolution (1280x960) with a high-speed frame rate of 60 frames per second. Equipped with a Sony ISX017 CMOS sensor and a 1/3.2" sensor format, it delivers superior image quality with pixel size of 3.5 µm. This camera is designed with a rolling shutter mechanism for high-speed imaging applications, ensuring clarity and precision in dynamic environments.
Its compact board-level design and CS lens mount make it ideal for integration into custom systems, while its IR cut optical filter ensures true color reproduction by blocking infrared light. The camera operates via UVC interface, providing easy plug-and-play connectivity to a wide range of devices. Whether used in machine vision, quality inspection, or automated systems, the STC-S133UVC-BLCS delivers reliable performance for industrial applications.
Features:
- 1.3MP Resolution (1280x960)
- 60fps Frame Rate
- Sony ISX017 CMOS Sensor
- 1/3.2" Sensor Format
- Rolling Shutter
- UVC Interface
- CS-Mount Lens
- IR Cut Filter
- Board Level Design
Applications:
- Machine Vision
- Quality Inspection
- Automated Systems
- Industrial Imaging
| Model Number | STC-S133UVC-BLCS |
| Frame Rate | 60 FPS |
| Mono/Color | Color |
| Pixel Size (HxV) | 3.5 x 3.5 µm |
| Resolution | 1.3 MP |
| Resolution (HxV) | 1280 x 960 |
| Sensor Name | ISX017 |
| Sensor Size | 1/3.2" |
| Sensor Type | CMOS |
| Interface | UVC |
| Shutter Type | Rolling Shutter |
| Type | Board |
| Lens Mount Type | CS-Mount |
| Dimensions | φ28 x 21.7 (D) mm |
