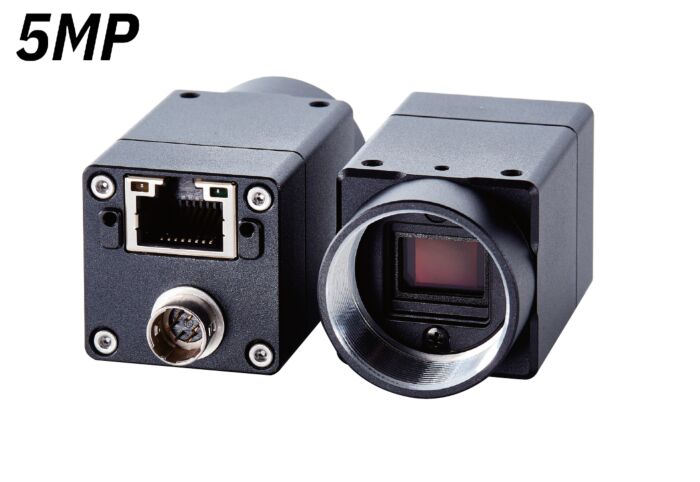

Omron STC-MBA503POE Small GigE Vision Monochrome Camera (Discontinued)
SKU
STC-MBA503POE
Quick Overview
GigE Vision Area Scan Camera, 5.0 MP, Monochrome, CMOS MT9P031, 1/2.5'', 2.2 µm, 14 fps, Rolling Shutter, C Mount, Cased, POE
The Omron STC-MBA503POE (STCMBA503POE) camera is perfect for applications requiring high quality with it's CMOS MT9P031 5.0MP global shutter sensor with 14fps.
Features:
- 1/2.5" Sensor Size
- Sony CMOS Sensor
- 5.0 MP Resolution
- Global Shutter
| Dimensions | 29W x 29H x 53D mm |
| Camera Mounting | Top Plate: M3 x 2 Bottom Plate: M3 x 4 |
| Optical Center Accuracy | Rotational accuracy of horizontal and vertical +/- 1.5 deg |
| Frame Memory | 20M: 128MB, 20M: 64MB |
| Housing and GND of PCB is connected | isolating |
| GigE Vision | Vision 2.1 |
| GenICam SNFC | SFNC2.3 |
| PTP | о |
| Gamma | LUT control / GenICam |
| Event | о |
| UserSet | 8 Set |
| Chunk Data | о |
| Action | о |
| Number of Corrective Defective Pixels | 20M: 4,096 / 12M or smaller: 2,046 |
