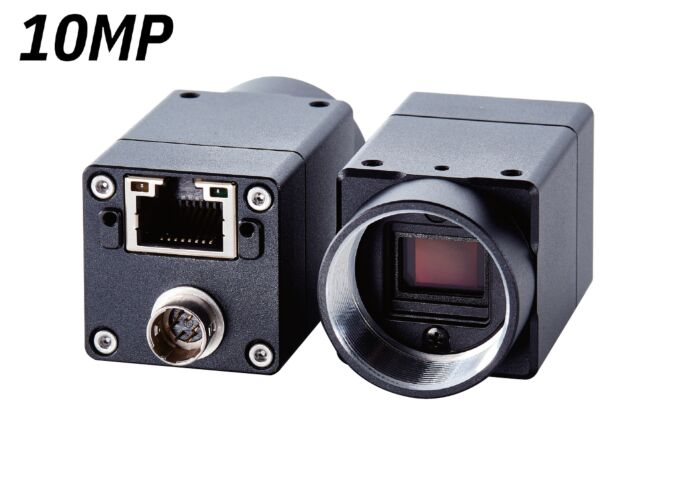

Omron STC-MBA1002POE Small GigE Vision Monochrome Camera

GigE Vision Area Scan Camera, 10 MP, Monochrome, CMOS MT9J003, 1/2.3'', 1.67 µm, 10.3 fps, Rolling Shutter, C Mount, Cased, POE

$660.00 Please call for pricing

SKU

STC-MBA1002POE

Overview

These Omron cameras are perfect for applications requiring high quality with it's CMOS MT9J003 10MP global shutter sensor with 10.3fps.

Features:

1/2.3" Sensor Size
Sony CMOS Sensor
10.3 MP Resolution
Global Shutter

Specifications

Dimensions	29W x 29H x 53D mm
Camera Mounting	Top Plate: M3 x 2 Bottom Plate: M3 x 4
Optical Center Accuracy	Rotational accuracy of horizontal and vertical +/- 1.5 deg
Frame Memory	20M: 128MB, 20M: 64MB
Housing and GND of PCB is connected	isolating
GigE Vision	Vision 2.1
GenICam SNFC	SFNC2.3
PTP	о
Gamma	LUT control / GenICam
Event	о
UserSet	8 Set
Chunk Data	о
Action	о
Number of Corrective Defective Pixels	20M: 4,096 / 12M or smaller: 2,046
