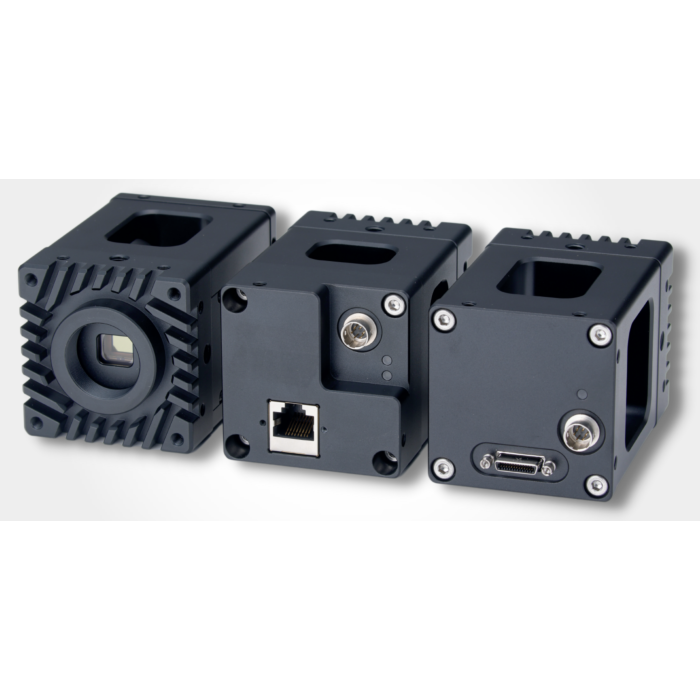

Omron STC-LBS34U3V-SWIR Wide-Band High-Sensitivity SWIR USB3 Vision Camera with Sony IMX991, 0.3 MP, C-Mount
*Please note tariff fee is included in price*
0.3 MP Omron SWIR camera featuring the Sony IMX991 global shutter sensor, 400–1,700 nm sensitivity, USB3 Vision interface, 656 × 520 resolution at up to 258 fps, and C-mount lens support with optional Peltier cooling.
NDAA CompliantThe Omron STC-LBS34U3V-SWIR is a wide-band, high-sensitivity SWIR camera engineered for precise imaging from the visible edge into the short-wave infrared spectrum, covering approximately 400 nm to 1,700 nm. Powered by the Sony IMX991 InGaAs global shutter sensor and offering 0.3 megapixel resolution at 656 × 520, this camera delivers clean, low-noise images at frame rates up to 258 fps for fast-moving processes and demanding inspection lines.
With its USB 3.0 / USB3 Vision interface, C-mount lens compatibility, and optional Peltier cooling support, the STC-LBS34U3V-SWIR integrates easily into existing machine vision and scientific imaging systems. The robust aluminum housing and area-scan architecture make it well suited for applications such as material sorting, laser beam profiling, moisture detection, and electronics inspection where SWIR contrast reveals details invisible in standard visible-light cameras.
Features:
- Wide-band SWIR sensitivity (approx. 400–1,700 nm) for visible-to-SWIR imaging in a single compact camera
- 0.3 MP (656 × 520) resolution optimized for high-speed, high-sensitivity SWIR inspection tasks
- Sony IMX991 InGaAs global shutter sensor for low-noise, high-contrast SWIR imaging at full frame rates
- USB 3.0 / USB3 Vision interface for high-bandwidth, low-latency data transfer and broad software compatibility
- C-mount lens interface offering flexible lens selection for different working distances and fields of view
- Up to 258 fps at full resolution to support fast production lines and dynamic test scenarios
- Area-scan architecture for capturing full-frame images in inspection, measurement, and research applications
- Peltier cooling support (model-level capability) to improve stability and reduce dark noise in thermally sensitive setups
- Durable aluminum black housing designed for integration into industrial machine vision environments
Applications:
- Material sorting
- Silicon inspection
- Moisture detection
- Food grading
- Solar cells
- Electronics QA
- Laser profiling
- Glass inspection
- Chemical analysis
- Process monitoring
| Camera Type | SWIR (Short-Wave Infrared) Area Scan Camera |
| Model | STC-LBS34U3V-SWIR |
| Manufacturer | Omron |
| Image Sensor Type | Sony IMX991 InGaAs, Global Shutter |
| Image Sensor Format | 1/4" |
| Spectral Sensitivity Range | Approx. 400 nm to 1,700 nm |
| Resolution | 0.3 MP (656 × 520 pixels) |
| Image Width | 656 pixels |
| Image Height | 520 pixels |
| Pixel Size | 5 µm |
| Frame Rate | Up to 258 fps |
| Scan Type | Area scan |
| Lens Mount | C-mount |
| Lens Type | Not applicable (lens not included) |
| Optical Filter | None (no built-in filter) |
| Interface | USB 3.0 (USB3 Vision) |
| Shutter Type | Global shutter |
| Cooling Support | Peltier cooling supported (model-level capability) |
| Housing Material | Aluminium, black |
