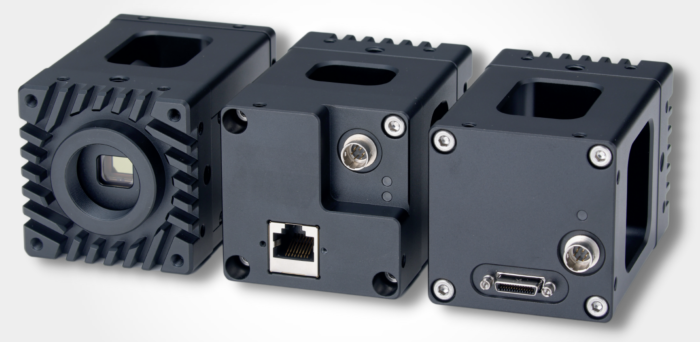

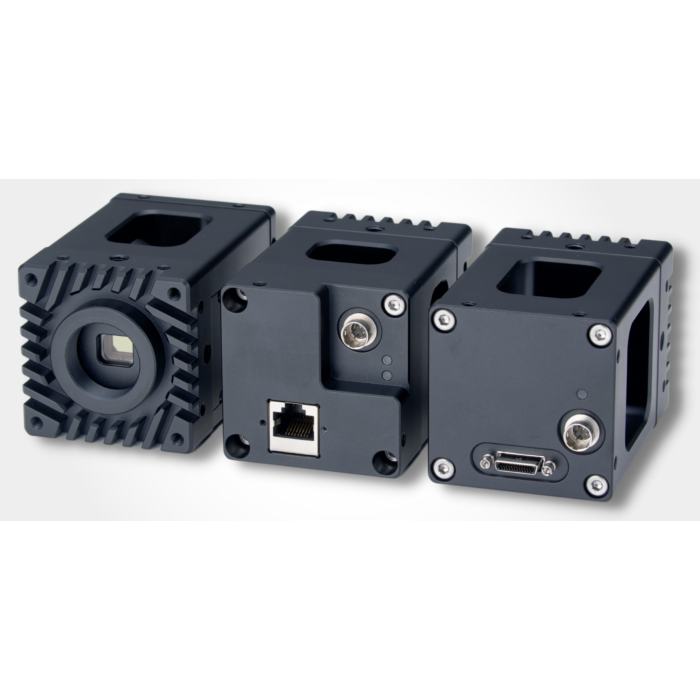

Omron STC-LBS132POE-SWIR Wide-Band and High-Sensitivity SWIR Camera

SONY IMX990 adopted SWIR camera
SKU
Omron STC-LBS132POE-SWIR

Equipped with IMX990 with sensitivity of 400 to 1,700 nm. GigE Vision interface

Features:

  • 1.3M (1280x1024)
  • Lens Mount: C-mount
  • Peltier cooling supported
Model STC-LBS132POE-SWIR
Image Sensor 1/2" 1.3M Progressive SWIR CMOS (IMX990)
Shutter Mode Global Shutter
Effective Pixels 1,280 x 1,024 (1.3M)
Cell Size 5.0(H) x 5.0(v) um
Scan Mode Full scan/ ROI
Maximum FPS 84fps (8bit), 42fps (10bit), 56fps (10bit Packed), 42fps (12bit), 56fps (12bit Packed)
Image Format Mono8 / Mono10 / Mono10Packed / Mono12 /Mono12Packed
Capable Bandwidth 400 nm ~ 1,700nm
Electronic Shutter 8μ sec ~16.777 sec
Analog Gain 0 ~ 14.8 dB
Digital Gain x1 ~ x3
ROI Horizontal:8~1,280pixel/Vertical:8~1,024Line image size adjust unit: H 8pixel/ V 8Line image offset adjustment valley:H 8pixel/ V 8Line
Gamma Gamma 0.1~4.0
Binning x2 Horizontal・Vertical / Off
Decimation x2 Horizontal・Vertical / Off
Image Flip Top bottom / right left / top bottom right left /of
Pixel Defect Correction Maximum 8,192 pixels
Automatic Image Quality Control Automatic exposure : corresponded
Auto Gain:corresponded
Auto white balance:N/A
Operating Mode Edge preset / pulse trigger / free run (continuous mode)
Interface PoE:IEEE802.3af CLASS3(1000BASE-T)
Protocol GigE Vision 2.1 GenICam SFNC 2.6 base
IEEE1588(PTP)corresponded
Input/Output Terminal 1Input(opt isolated) / 1output(opt isolated)
1In/output(non-isolated, open collector)
Power Input Voltage +10.8 ~ 26.4Vdc(power signal connector)
Power Over Ethernet(IEEE802.3afbase)
Power Consumption +12V / +24V:10.1 W, PoE:10.2W
Lens Mount C Mount
Weight around 465g
Operating Temperature (low limit) Ambient environment temperature:0℃,
Ambient environment humidity: 20~85%RH (no condensation)
Operating Temperature (high limit) Ambient environment temperature:+56℃,
Ambient environment humidity:20~85%RH (no condensation) boundary temperature:+68℃
