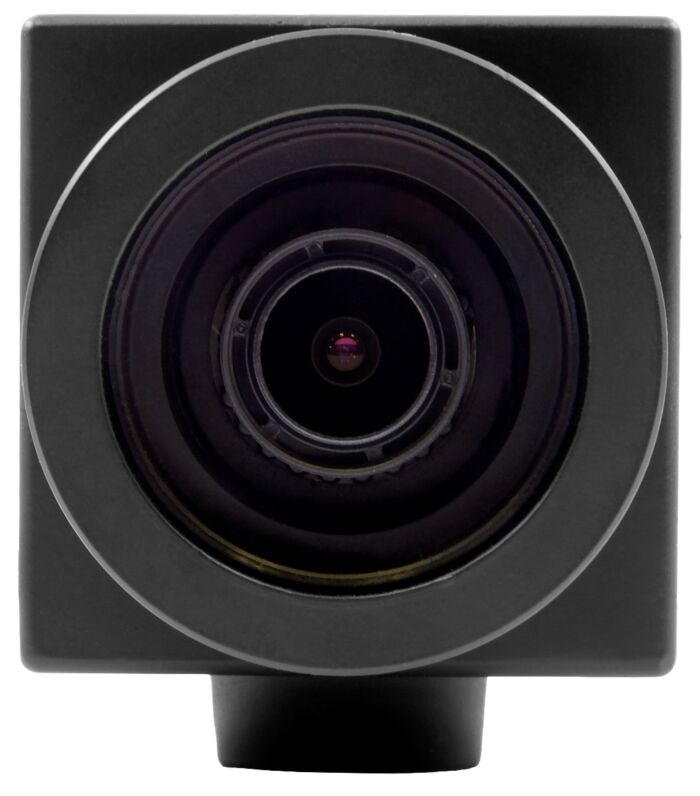

Marshall Electronics CV503-WP 2.5MP 1080p All-Weather Miniature HD Camera with 1/2.86” CMOS Sensor, IP67 Housing, M12 Lens, 10’ Cable

The Marshall CV503-WP is a professional-grade, all-weather HD miniature camera featuring a 1/2.86” 2.5MP Progressive CMOS sensor delivering full HD 1920×1080p progressive video at up to 60fps. Housed in an IP67-rated weatherproof enclosure, the camera is built to withstand harsh outdoor environments while maintaining crisp color accuracy and high detail capture.

The CV503WP supports interchangeable M12 lenses, remote adjustment via RS485 (Visca) or OSD joystick, and a wide range of picture controls including white balance, gain, exposure, pedestal, and gamma. A 10’ (3m) weatherproof cable integrates power, video, and control signals to a standard BNC 3G/HD-SDI output, providing flexibility and reliability in demanding broadcast and AV setups.

Features:

• Full-sized 3G/HDSDI (BNC) output
• 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
• Interchangeable M12 lens mount (includes stock 4.0mm lens 85°H. AOV)
• IP67-rated weatherproof housing, wide lens cap for flexible wide shots
• Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
• Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
• Remote adjustable through RS485 (Visca) or OSD menu joystick
• Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
• Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw

Applications:

• Outdoor Broadcast Events
• Pro AV Workflows
• Live Broadcast Productions
• Sportscast
• Newscast
• Reality Television
• Concerts
• Corporate
• Government
• Military
• House of Worship
