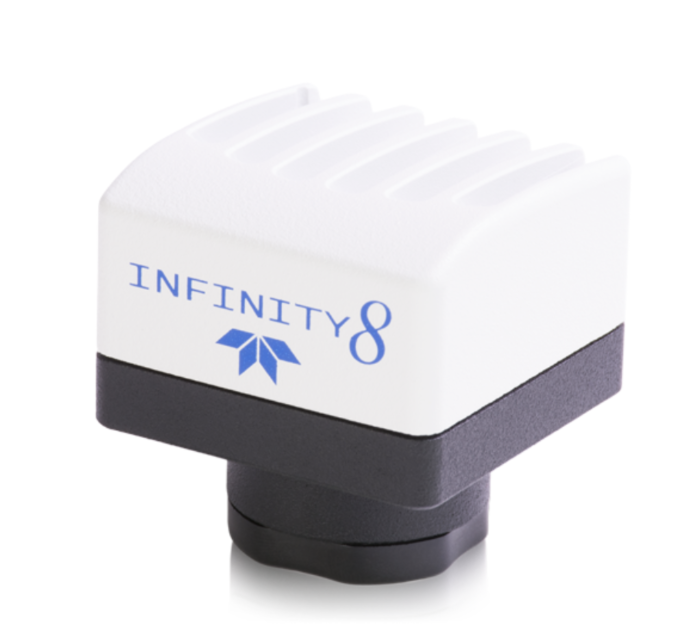

Lumenera/Teledyne INFINITY8-20C – 20 MP USB 3.0 CMOS Microscope Camera with 1” Sony IMX183 Sensor, High Dynamic Range, and INFINITY ANALYZE Software

The Lumenera/Teledyne INFINITY8-20C is a high-resolution, 20-megapixel color microscopy camera engineered for demanding imaging applications such as brightfield, fluorescence, darkfield, histology, pathology, cytology, and semiconductor inspection. Featuring a Sony IMX183 CMOS sensor with a 1" optical format and 5472 x 3648 resolution, this USB 3.0 camera delivers sharp, vivid imaging without the need for pixel shifting or mechanical movement.

Designed for accuracy and efficiency, the INFINITY8-20C provides a dynamic range of 73 dB, 14,600 e- full well capacity, and 3.25e- read noise, allowing for high-fidelity color reproduction and detail in low-light environments. With support for 8-bit and 12-bit ADC, manual and automatic exposure, gain, and white balance controls, and multiple acquisition modes including fluorescence mode, timelapse, and video capture, this compact unit provides robust imaging flexibility.

The INFINITY8-20C includes the powerful INFINITY ANALYZE software, compatible with Windows and macOS, with plugin support for Micro-Manager and Image-Pro®. No annual licensing or update fees.

Physically, the camera boasts a compact 41.5 x 45 x 45 mm aluminum body, a lightweight 108 g profile, and a heat-dissipating passive design, ensuring reduced noise without active cooling. CE, FCC, RoHS, and WEEE compliant.

Ideal for research, clinical, and industrial applications where resolution, sensitivity, and color accuracy are critical.
