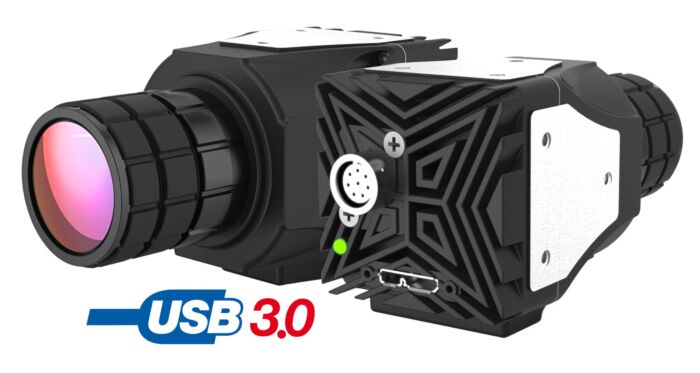

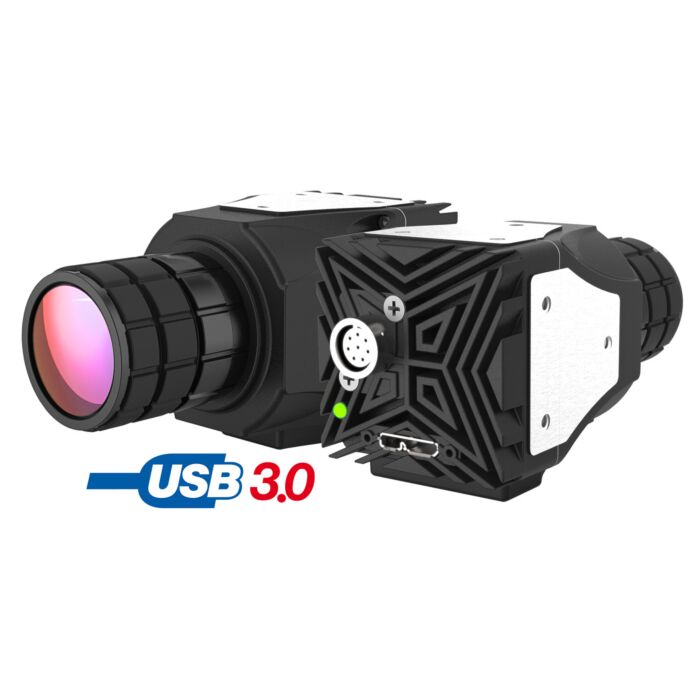

Lumenera Lt425 USB Camera (Discontinued)
SKU
Lt425
Quick Overview
*Product is Discontinued, Call For Replacement Options
2048 pixels x 2048p (4MP), 1" PS CMOS, 90 fps, USB 3.0 Camera.
Lt425 USB 3.0 high performance cameras based on the industry leading CMOSIS global shutter sensors. The combination of these two CMOS sensors, combined with an incredibly fast USB 3.0 data interface have resulted in high speed, high performance cameras.
| Image Sensor | CMOSIS CMV2000, color, monochrome, NIR |
| Optical Format | 1” |
| Active Area | 11.264 mm |
| Pixel Size | 5.5 x 5.5 μm |
| Resolution | 2048 x 2048 pixels |
| Region of Interest Control | Any multiple of 8 x 8 |
| Camera Specifications | |
| Frame Rate | 90 fps at full resolution |
| Bit Depth | 8 or 12-bit |
| Binning Modes | N/A |
| Exposure Control | Manual and automatic control |
| Exposure Range | 0 to 4000 ms |
| Gain Control | Manual and automatic control |
| Gain Range | 1.0 to 1.6 x |
| White Balance | Manual and automatic control |
| Trigger Modes | Hardware and software triggerable |
| Camera Characteristics | |
| Sensitivity | TBD |
| Dynamic Range | 60 dB |
| Full Well Capacity | 13,500 e- |
| Quantum Efficiency | 45% peak color, 64% peak monochrome |
| Read Noise | 13 e- |
| Dark Current Noise | 125 e-/s (@25 C die temp) |
| Mechanical Specifications | |
| Data Interface | USB 3.0, micro locking connector |
| General Purpose I/O | Locking Hirose |
| Lens Mount | C-Mount |
| Dimensions | 40 x 40 x 53 mm |
| Mass | 138 g |
| Operating Temperature | -5 to 60 ºC |
| Storage Temperature | -30 to 70 ºC |
| Operating Humidity | 5 to 95 %, non-condensing |
| Shock / Vibration | TBD |
| Camera Software | |
| Operating Systems | Windows XP, Windows Vista, Windows 7, 32 and 64-bit operating systems |
| Software Interfaces | DirectShow |
| Power and Emissions | |
| Power Consumption | 5 V DC @ 700 mA, ~3.25 W |
| Power Requirement | USB bus power (optional 5 V DC, 700 mA minimum, power through Hirose) |
| Emissions Compliances | FCC Class B, CE Certified |
| Hazardous Materials | RoHS, WEEE Compliant |
| Warranty | One (1) year |
