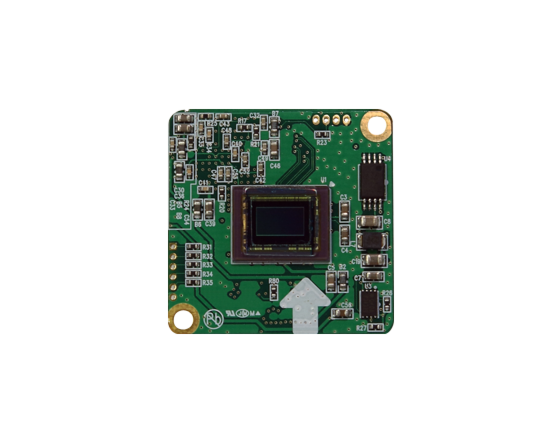

KT&C ATC-PS2802 HD Module Camera
SKU
KT&C ATC-PS2802 HD Module Camera
Features:
- 1/2.8" Progressive Scan Scan CMOS
- 1080p 60(50)fps
- WDR, 3D DNR, Defog
- Camera Control Interface(I2C,UART)
- Parallel Output
- Not including Lens, Lens Holder
| Image Sensor | 1/2.8" Exmor R Progressive Scan CMOS |
| Effective Pixels | 2.13MP 1945(H) x 1097(V) |
| Video Output | Parallel 16bit(Y/Cb/Cr 4:2:2) |
| Max. Video Resolution |
1920x1080(Full HD), 1280x720 |
| Synchronization System |
Internal |
| Min. Illumination |
0.2Lux(F1.6) |
| Lens | Lens and lens holder are not included. |
| D&N Mode | AUTO/COLOR/BW |
| Dynamic Range | OFF/BLC/HLC/WDR |
| Electronic Shutter Speed |
Digital Slow Shutter(OFF~x32) Auto/Manual(1/30(25), 1/60(50)~1/30000)/Flicker |
| White Balance |
AUTO/Push/Manual |
| Image Freeze |
Off/On |
| Image Flip |
Off/Horizontal/Vertical/H+V(180° Flip) |
| Privacy Masking Zone | 16 Zones/14 mask color selectable, semi-transparency |
| Digital Image Stabilizer | Yes |
| Motion Detection | 4 Zones |
| ACE | Off/Low/Middle/High |
| WDR | 0~4 |
| BLC | Off/0~10, Area selectable |
| HLC | Off/0~20, Color selectable |
| AGC | Max.42dB |
| Sharpness | Adjustable(0~10) |
| DNR | Off/Low/Middle/High |
| Defog | Off/Low/Middle/High/AUTO |
| Language | English,Janpanese,Chinese |
| Camera Control Interface | I2C,UART |
| Supply Voltage | DC 3.3V±0.1V/1.8V±0.1V/1.2V-0.05/+0.1V |
| Operating Temperature |
-10℃~+50℃, Humidity(20~95%) |
| Storage Temperature | -20℃~+60℃, Humidity(20~80%) |
| Dimension (mm) | 28X28mm |
| Weight | Approx. 3.6g |
| Power Consumption |
Max. 3.6W(3.3V: Max.200mA) |
