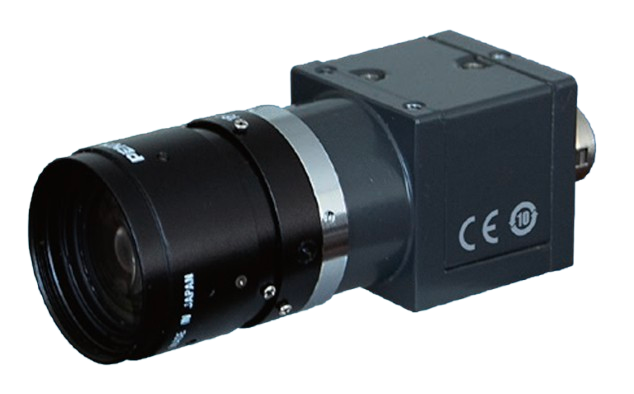

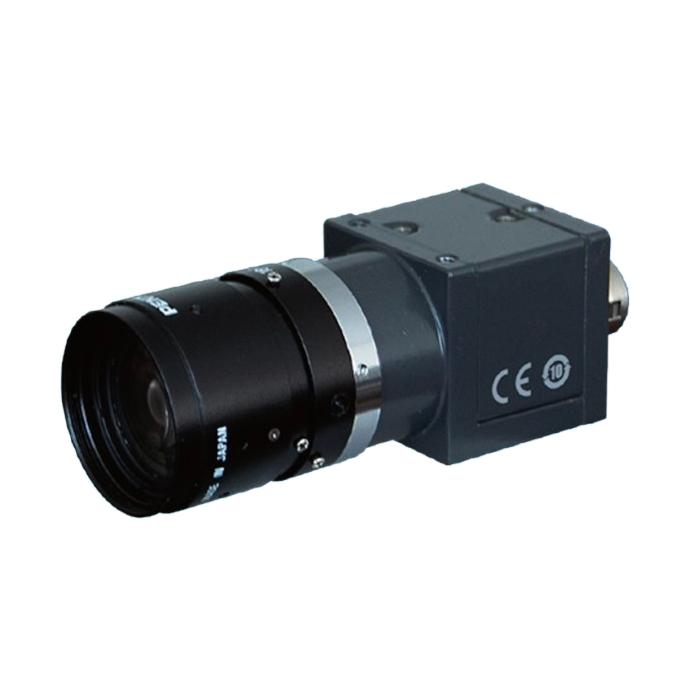

Kokusai Denki America KP-FM230WCL Monochrome Single CMOS Sensor Compact Camera Link Camera

The Kokusai Denki America KP-FM230WCL is a high-performance Global Shutter CMOS monochrome camera designed for demanding applications requiring high-speed imaging and high resolution. With a 2.3 megapixel (1920x1200) resolution, the KP-FM230WCL captures crisp, distortion-free images at an impressive maximum frame rate of 92.6 fps. Its compact 29mm x 29mm x 29mm body, weighing approximately 45g, allows integration into tight spaces, making it ideal for space-constrained environments.

Equipped with a C-mount lens interface, the KP-FM230WCL offers seamless integration with a variety of lenses for precise imaging. The global shutter feature ensures stable, distortion-free video signals, even when capturing fast-moving subjects, by synchronizing frame capture across the entire image sensor. This eliminates the rolling shutter effect typically associated with traditional CMOS sensors.

The camera supports a selectable frame rate, providing flexibility in choosing output rates based on the application requirements, and can be triggered to capture images on-demand via an external trigger signal. The unit operates with DC12V±1V power input and can be powered through either the Camera Link cable or DCIN/SYNC port, simplifying integration into a variety of setups. This versatile camera is perfect for industrial, scientific, and machine vision applications that demand high-resolution, high-speed imaging in compact, reliable form.

Features:

• 2.3MP Resolution (1920x1200)
• Global Shutter CMOS Sensor
• 92.6fps Maximum Frame Rate
• C-Mount Lens Compatibility
• Trigger Capture (Frame On Demand)
• Selectable Frame Rate
• Compact Design (29x29x29mm)
• DC12V±1V Power Supply
• Power via Camera Link or DCIN/SYNC Port
• Approx. 45g Weight

Applications:

• Machine Vision
• Industrial Automation
• Scientific Imaging
• Inspection Systems
• Fast-Motion Analysis
• Robotics
• Quality Control
• Research & Development
