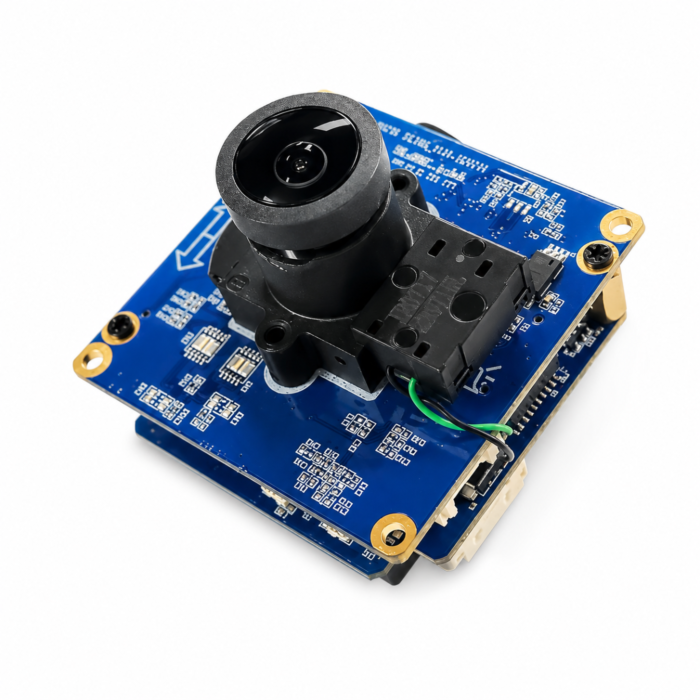

IPX NMG-542M5X-W 5MP Global Shutter IP Module Camera, 42x42mm Double Board, 6-22mm Motorized Lens
5MP IPX global shutter IP module camera with 6-22mm motorized lens, Sony 1/1.8" sensor, embedded Linux, H.265/H.264/MJPEG video, onboard AI object detection, trigger input, flash/IR output, and compact 42 x 42mm double-board design.
The IPX NMG-542M5X-W is a 5MP global shutter IP module camera with a 6-22mm motorized lens, designed for embedded vision applications that require remote zoom/focus flexibility, high-resolution imaging, and reliable capture of moving subjects. Built around a Sony 1/1.8" 5MP global shutter image sensor and compact 42 x 42mm double-board layout, this camera module is well suited for robotics, UAV/drone imaging, AI surveillance, industrial inspection, intelligent traffic, machine vision, and medical imaging platforms.
The NMG-542M5X-W features a 64-bit Quad Core RISC-V SoC running Embedded Linux and supports H.265, H.264, and MJPEG video up to 2592 x 1944 at 30fps. Its onboard NPU enables MobileNet V2 + SSDLite and YOLOv7 object detection, making it a strong fit for compact edge AI systems that need both intelligent analytics and optical flexibility.
With trigger input, flash/IR output, WDR, HLC/BLC, 2D/3D noise reduction, and adjustable image controls, the IPX NMG-542M5X-W gives integrators a compact IP camera module for applications where the field of view may need to be adjusted after installation or controlled remotely during operation.
Key Features:
- 5MP Sony 1/1.8" global shutter sensor
- 6-22mm motorized lens for adjustable field of view
- Compact 42 x 42mm double-board camera module
- Up to 2592 x 1944 resolution at 30fps
- 64-bit Quad Core RISC-V SoC with Embedded Linux
- H.265, H.264, and MJPEG video compression
- Integrated NPU for MobileNet V2 + SSDLite and YOLOv7 object detection
- Trigger input and flash/IR output for synchronized capture
- WDR, HLC/BLC, 2D/3DNR, sharpness, brightness, and contrast controls
- Ideal for remote monitoring, robotics, UAV, inspection, AI, and intelligent traffic applications
Applications:
- Remote zoom embedded vision systems
- Robotics and autonomous inspection
- UAV/drone surveillance and observation
- AI object detection and edge analytics
- Intelligent traffic and smart infrastructure
- Industrial automation and quality inspection
- Medical and laboratory imaging systems
- Security and perimeter monitoring
| Brand | IPX |
| Model | NMG-542M5X-W |
| Camera Type | 5MP IP Module Camera |
| Board Design | Double Board |
| Board Size | 42 x 42mm |
| Image Sensor | Sony 1/1.8" 5MP Global Shutter Sensor |
| Shutter Type | Global Shutter |
| Resolution | Up to 2592 x 1944 |
| Frame Rate | Up to 30fps |
| Lens | 6-22mm Motorized Lens |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLOv7 Object Detection |
| Interfaces | Trigger In, Flash / IR Out |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Robotics, UAV/Drone, AI, Medical, Intelligent Traffic, Machine Vision, Surveillance, Inspection |
