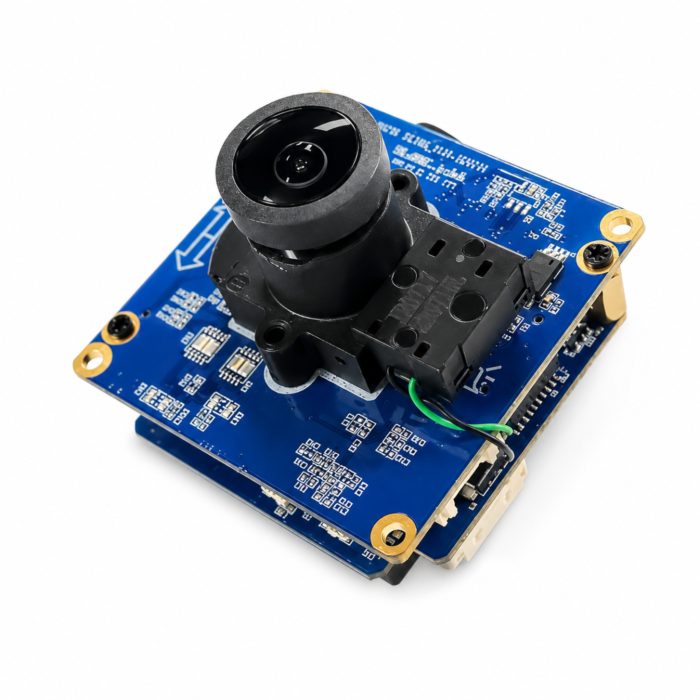

IPX NMG-542M4X-W 5MP Global Shutter IP Module Camera, 42x42mm Double Board, 2.7-13.5mm Motorized Lens

The IPX NMG-542M4X-W is a compact 5MP global shutter IP module camera featuring a 2.7-13.5mm motorized lens for flexible wide-to-midrange imaging. Designed for robotics, UAV/drone systems, AI vision, intelligent traffic, industrial inspection, medical imaging, machine vision, and surveillance, this module combines a Sony 1/1.8" 5MP global shutter sensor with embedded processing and onboard AI capabilities.

The motorized 2.7-13.5mm lens makes the NMG-542M4X-W a strong choice for applications that need adjustable field of view, from broader scene coverage to more focused monitoring. The 64-bit Quad Core RISC-V SoC runs Embedded Linux and supports H.265, H.264, and MJPEG video output up to 2592 x 1944 at 30fps.

With onboard NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection, plus trigger input, flash/IR output, WDR, HLC/BLC, 2D/3DNR, and image adjustment controls, this IPX 5MP camera module is ideal for OEM systems requiring intelligent imaging, compact form factor, and adaptable optics.

Key Features:

• 5MP Sony 1/1.8" global shutter image sensor
• 2.7-13.5mm motorized lens for flexible field-of-view control
• Compact 42 x 42mm double-board IP camera module
• Up to 2592 x 1944 video at 30fps
• 64-bit Quad Core RISC-V SoC with Embedded Linux
• H.265, H.264, and MJPEG video encoding
• Onboard NPU supporting MobileNet V2 + SSDLite and YOLOv7 object detection
• Trigger input and flash/IR output
• WDR, HLC/BLC, 2D/3DNR, brightness, contrast, and sharpness controls
• Designed for AI, robotics, UAV, machine vision, traffic, medical, and surveillance applications

Applications:

• Adjustable-view robotics camera systems
• UAV/drone imaging and monitoring
• AI object detection at the edge
• Machine vision inspection
• Smart city and intelligent traffic systems
• Medical imaging integration
• Industrial automation and quality control
• Surveillance and remote monitoring
