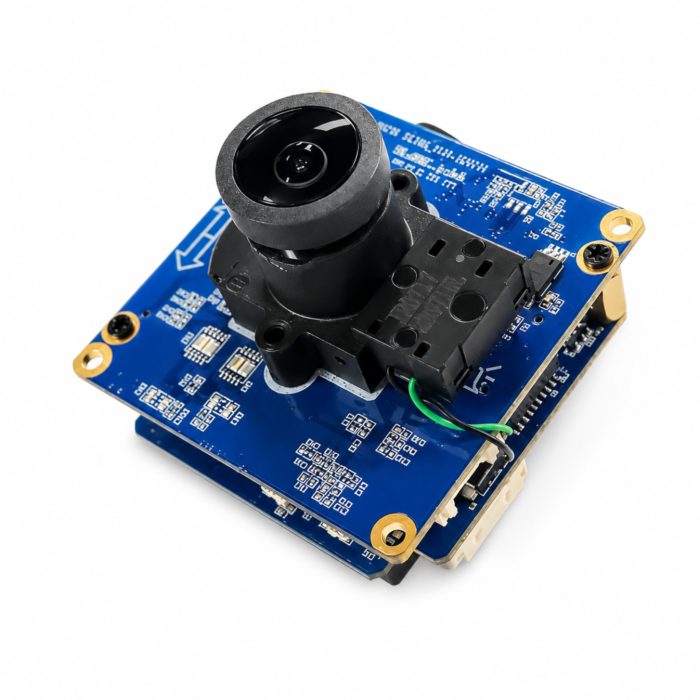

IPX NMG-542M10X-W 5MP Global Shutter IP Module Camera, 42x42mm Double Board, 5-50mm Motorized Lens
5MP IPX global shutter IP module camera with 5-50mm motorized lens, Sony 1/1.8" sensor, embedded Linux, H.265/H.264/MJPEG video, onboard AI object detection, trigger input, flash/IR output, and compact 42 x 42mm double-board design.
The IPX NMG-542M10X-W is a 5MP global shutter IP module camera with a 5-50mm motorized lens, designed for applications that require long-range adjustable imaging, remote zoom capability, and intelligent edge video processing. Built with a Sony 1/1.8" 5MP global shutter sensor and compact 42 x 42mm double-board architecture, this camera module is ideal for surveillance, intelligent traffic, UAV/drone observation, robotics, industrial inspection, machine vision, and AI object detection systems.
The NMG-542M10X-W is powered by a 64-bit Quad Core RISC-V SoC running Embedded Linux and supports H.265, H.264, and MJPEG video output up to 2592 x 1944 at 30fps. Its integrated NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection, allowing developers and integrators to build compact IP camera systems with onboard analytics.
With its 5-50mm motorized lens, trigger input, flash/IR output, WDR, HLC/BLC, 2D/3D noise reduction, and adjustable image controls, the IPX NMG-542M10X-W is well suited for projects that require high-resolution global shutter imaging with remote optical control in a compact embedded form factor.
Key Features:
- 5MP Sony 1/1.8" global shutter image sensor
- 5-50mm motorized lens for long-range adjustable imaging
- Compact 42 x 42mm double-board IP camera module
- Up to 2592 x 1944 resolution at 30fps
- 64-bit Quad Core RISC-V SoC with Embedded Linux
- H.265, H.264, and MJPEG video compression
- Onboard NPU for MobileNet V2 + SSDLite and YOLOv7 object detection
- Trigger input and flash/IR output
- WDR, HLC/BLC, 2D/3DNR, sharpness, brightness, and contrast controls
- Designed for surveillance, intelligent traffic, UAV, robotics, inspection, and AI vision systems
Applications:
- Long-range surveillance and remote monitoring
- Intelligent traffic and roadway imaging
- UAV/drone observation systems
- AI object detection and analytics
- Robotics and autonomous platforms
- Industrial inspection and automation
- Machine vision systems requiring adjustable optics
- Security, perimeter, and infrastructure monitoring
| Brand | IPX |
| Model | NMG-542M10X-W |
| Camera Type | 5MP IP Module Camera |
| Board Design | Double Board |
| Board Size | 42 x 42mm |
| Image Sensor | Sony 1/1.8" 5MP Global Shutter Sensor |
| Shutter Type | Global Shutter |
| Resolution | Up to 2592 x 1944 |
| Frame Rate | Up to 30fps |
| Lens | 5-50mm Motorized Lens |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLOv7 Object Detection |
| Interfaces | Trigger In, Flash / IR Out |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Robotics, UAV/Drone, AI, Medical, Intelligent Traffic, Machine Vision, Surveillance, Inspection |
