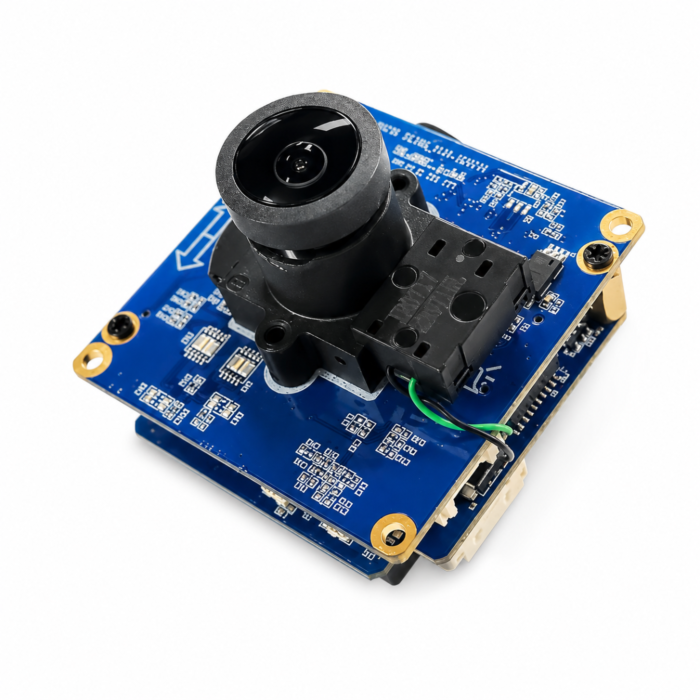

IPX NMG-542B40-W 5MP Global Shutter IP Module Camera, 42x42mm Double Board, 4mm Lens
5MP IPX global shutter IP module camera with 4mm lens, Sony 1/1.8" sensor, embedded Linux processing, H.265/H.264/MJPEG video, onboard NPU object detection, trigger input, flash/IR output, and compact 42 x 42mm double-board format.
The IPX NMG-542B40-W is a 5MP global shutter IP module camera built for industrial imaging, robotics, AI vision, UAV/drone systems, intelligent traffic, medical imaging, surveillance, and machine vision integration. Featuring a Sony 1/1.8" 5MP global shutter sensor and a compact 42 x 42mm double-board design, this camera module delivers sharp, low-distortion imaging for applications involving motion, automation, and embedded video processing.
The 4mm fixed focus lens provides a balanced field of view for general-purpose machine vision, smart monitoring, robotic perception, inspection, and AI analytics. Powered by a 64-bit Quad Core RISC-V SoC running Embedded Linux, the NMG-542B40-W supports H.265, H.264, and MJPEG video up to 2592 x 1944 at 30fps.
With onboard NPU support for MobileNet V2 + SSDLite and YOLOv7 object detection, plus trigger input and flash/IR output, this IPX 5MP camera module is well suited for OEM vision systems that require compact size, edge intelligence, synchronized capture, and reliable global shutter performance.
Key Features:
- 5MP Sony 1/1.8" global shutter image sensor
- 4mm fixed focus lens for balanced field-of-view imaging
- 42 x 42mm compact double-board IP camera module
- Up to 2592 x 1944 video resolution at 30fps
- 64-bit Quad Core RISC-V SoC with Embedded Linux
- H.265, H.264, and MJPEG video encoding
- Integrated NPU for MobileNet V2 + SSDLite and YOLOv7 object detection
- Trigger input and flash/IR output for synchronized imaging
- WDR, HLC/BLC, 2D/3DNR, brightness, contrast, and sharpness controls
- Ideal for robotics, AI, industrial inspection, UAV, traffic, and surveillance applications
Applications:
- General-purpose machine vision
- Robotics and autonomous systems
- AI object detection and embedded analytics
- Industrial inspection and quality control
- UAV/drone imaging platforms
- Intelligent traffic monitoring
- Medical and laboratory vision systems
- Security and surveillance integration
| Brand | IPX |
| Model | NMG-542B40-W |
| Camera Type | 5MP IP Module Camera |
| Board Design | Double Board |
| Board Size | 42 x 42mm |
| Image Sensor | Sony 1/1.8" 5MP Global Shutter Sensor |
| Shutter Type | Global Shutter |
| Resolution | Up to 2592 x 1944 |
| Frame Rate | Up to 30fps |
| Lens | 4mm Fixed Focus Lens |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLOv7 Object Detection |
| Interfaces | Trigger In, Flash / IR Out |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Robotics, UAV/Drone, AI, Medical, Intelligent Traffic, Machine Vision, Surveillance, Inspection |
