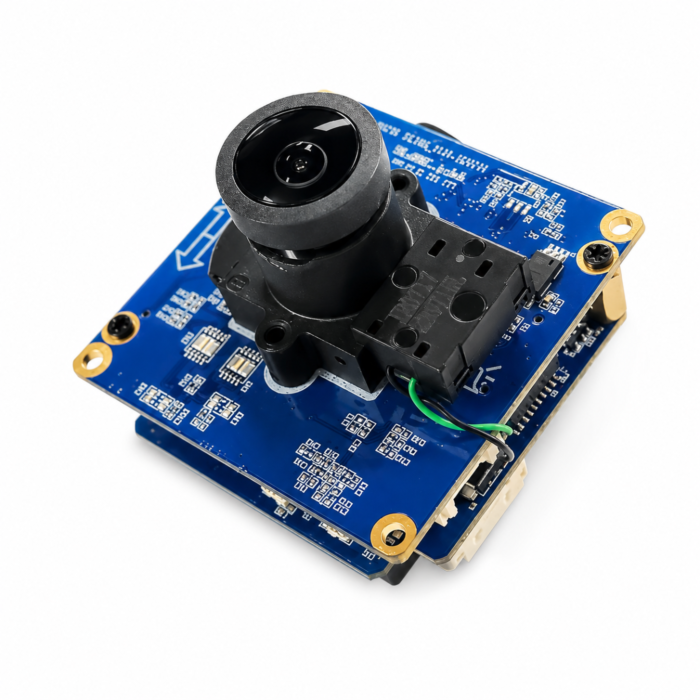

IPX NMG-542B28-W 5MP Global Shutter IP Module Camera, 42x42mm Double Board, 2.8mm Lens
5MP IPX global shutter IP module camera with 2.8mm wide-angle lens, Sony 1/1.8" sensor, embedded Linux, H.265/H.264/MJPEG video, onboard AI object detection, trigger input, flash/IR output, and 42 x 42mm double-board design.
The IPX NMG-542B28-W is a compact 5MP global shutter IP module camera designed for embedded vision, robotics, UAV/drone imaging, AI object detection, intelligent traffic, medical imaging, industrial inspection, machine vision, and surveillance applications. Built on a 42 x 42mm double-board platform, this module combines a Sony 1/1.8" 5MP global shutter image sensor with embedded Linux processing and advanced video compression.
With a wide-angle 2.8mm fixed lens, the NMG-542B28-W is ideal for applications that require broad scene coverage, short-range monitoring, robotic navigation, smart automation, and edge AI vision. The integrated 64-bit Quad Core RISC-V SoC supports H.265, H.264, and MJPEG video output up to 2592 x 1944 at 30fps, while the onboard NPU supports MobileNet V2 + SSDLite and YOLOv7 object detection.
This 5MP IP camera module also includes trigger input, flash/IR output, WDR, HLC/BLC, 2D/3D noise reduction, sharpness, brightness, and contrast controls, making it a flexible embedded camera solution for OEMs, machine builders, robotics developers, and AI vision integrators.
Key Features:
- 5MP Sony 1/1.8" global shutter image sensor
- Wide-angle 2.8mm fixed focus lens for broad scene coverage
- Compact 42 x 42mm double-board IP camera module
- Up to 2592 x 1944 resolution at 30fps
- 64-bit Quad Core RISC-V processor with Embedded Linux
- H.265, H.264, and MJPEG video compression
- Onboard NPU for MobileNet V2 + SSDLite and YOLOv7 object detection
- Trigger input and flash/IR output for machine vision synchronization
- WDR, HLC/BLC, sharpness, brightness, contrast, and 2D/3DNR controls
- Designed for robotics, UAV/drone, AI, traffic, inspection, surveillance, and embedded vision systems
Applications:
- Robotics vision and autonomous navigation
- UAV/drone wide-area imaging
- AI object detection and edge analytics
- Industrial automation and machine vision
- Intelligent traffic and smart city monitoring
- Medical and laboratory imaging systems
- Security, surveillance, and remote monitoring
- Embedded OEM camera integration
| Brand | IPX |
| Model | NMG-542B28-W |
| Camera Type | 5MP IP Module Camera |
| Board Design | Double Board |
| Board Size | 42 x 42mm |
| Image Sensor | Sony 1/1.8" 5MP Global Shutter Sensor |
| Shutter Type | Global Shutter |
| Resolution | Up to 2592 x 1944 |
| Frame Rate | Up to 30fps |
| Lens | 2.8mm Fixed Focus Lens |
| SoC | 64-bit Quad Core RISC-V |
| Operating System | Embedded Linux |
| Video Compression | H.265, H.264, MJPEG |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLOv7 Object Detection |
| Interfaces | Trigger In, Flash / IR Out |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Robotics, UAV/Drone, AI, Medical, Intelligent Traffic, Machine Vision, Surveillance, Inspection |
