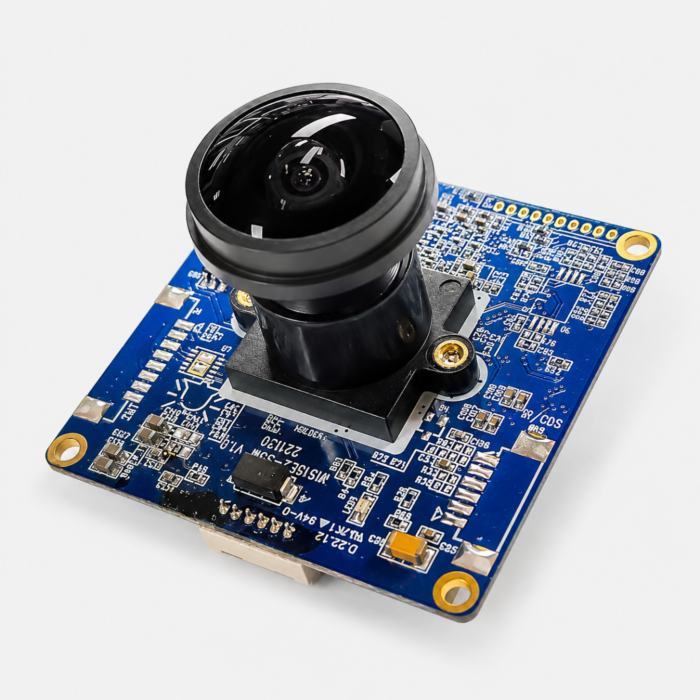

IPX NM-1242M5XH-W 12MP IP Camera Module, 42x42mm Double Board, 6-22mm Motorized Lens, Sony CMOS
The IPX NM-1242M5XH-W from Infinite Pixels is a 12MP IP camera module designed for embedded vision applications that require high-resolution imaging, flexible motorized lens control, and intelligent edge analytics. Built with a Sony 1/2.3" 12MP CMOS sensor, embedded Linux, a 64-bit quad-core RISC-V SoC, and a compact 42 x 42mm double-board design, this camera module is ideal for OEM IP camera integration, robotics, surveillance, machine vision, industrial inspection, smart parking, and intelligent traffic applications.
The 6-22mm motorized lens provides adjustable field-of-view control for applications that need flexible scene framing, medium-range monitoring, remote lens adjustment, or variable installation distances. This makes the IPX NM-1242M5XH-W a strong fit for security systems, parking analytics, traffic monitoring, automated inspection, robotics vision, and edge AI camera deployments.
This Infinite Pixels 12MP IP camera module supports H.265, H.264, and MJPEG video compression with video up to 3840 x 2880 at 20fps. Its integrated NPU supports MobileNet V2 + SSDLite and YOLO7 object detection, while empty space analytics for up to 12 spaces and optional number recognition software make it especially useful for smart parking, access control, occupancy monitoring, and intelligent video analytics systems.
Key Features:
- IPX / Infinite Pixels 12MP IP camera module
- Sony 1/2.3" 12MP CMOS image sensor
- 6-22mm motorized lens for adjustable field of view
- Compact 42 x 42mm double-board embedded design
- Embedded Linux with 64-bit quad-core RISC-V SoC
- H.265, H.264, and MJPEG video compression
- Up to 3840 x 2880 video resolution at 20fps
- Integrated NPU for MobileNet V2 + SSDLite and YOLO7 object detection
- Empty space analytics for up to 12 spaces
- Optional number recognition software support
- Advanced video processing with WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness
Applications:
- Smart parking and empty space analytics
- AI surveillance and remote security monitoring
- Machine vision and industrial inspection systems
- Robotics and autonomous platform imaging
- Intelligent traffic monitoring
- UAV/drone imaging systems
- Edge AI object detection
- OEM embedded IP camera integration
| Brand | IPX / Infinite Pixels |
| Model | NM-1242M5XH-W |
| Camera Type | 12MP IP Camera Module |
| Board Design | Double Board |
| Dimensions | 42 x 42mm Camera Board |
| SoC | 64-bit Quad-Core RISC-V |
| Operating System | Embedded Linux |
| Image Sensor | Sony CMOS Sensor |
| Sensor Size | 1/2.3" |
| Resolution | 12MP |
| Video Resolution | Up to 3840 x 2880 @ 20fps |
| Series Class | 12MP IP Modules, 25fps Series |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 6-22mm Motorized Lens |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLO7 Object Detection |
| Key Analytics Feature | Empty Space Analytics, up to 12 spaces |
| Software Options | Number Recognition |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Smart Parking, AI Vision, Surveillance, Machine Vision, Robotics, Industrial Inspection, Intelligent Traffic |
