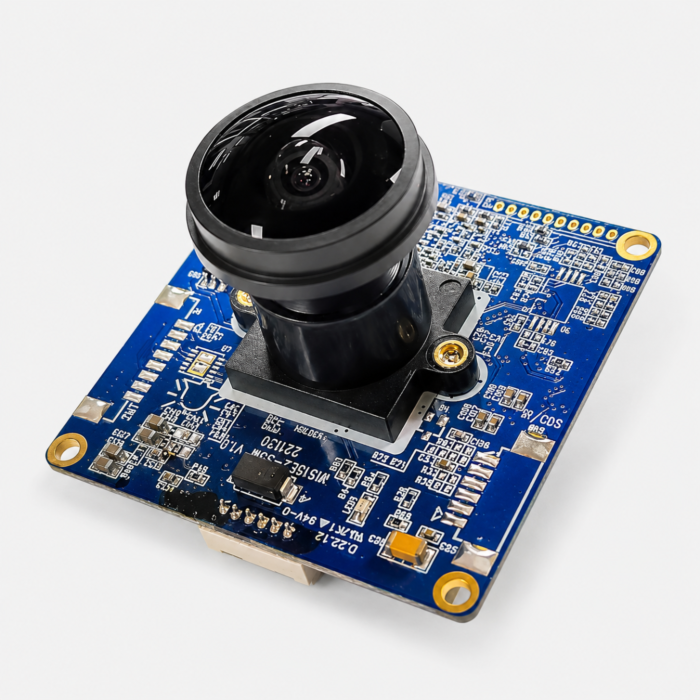

IPX NM-1242M5X-W 12MP AI IP Camera Module with Sony CMOS Sensor, RISC-V SoC & 6-22mm Motorized Lens

The IPX NM-1242M5X-W from Infinite Pixels is a compact 12MP AI IP camera module with a 6-22mm motorized lens, designed for embedded imaging systems that need adjustable field-of-view control, high-resolution video, and onboard edge AI capability. Built with a Sony 1/2.3" 12MP CMOS sensor, 64-bit quad-core RISC-V SoC, embedded Linux, and integrated NPU, this module is well suited for smart parking, intelligent traffic, surveillance, robotics, UAV/drone imaging, industrial inspection, and OEM camera integration.

The NM-1242M5X-W supports H.265, H.264, and MJPEG video compression with image capture up to 3840 x 2880 at 20 fps. Its onboard NPU supports AI object detection using MobileNet V2 + SSDLite and YOLO7, helping integrators build smarter camera systems for space detection, object classification, vehicle monitoring, and intelligent scene analysis.

The 6-22mm motorized lens makes this model a flexible option for deployments where viewing distance, scene width, or target framing may need to be adjusted during setup or operation. Compared with fixed-lens models, the NM-1242M5X-W gives integrators more flexibility for parking lanes, perimeter monitoring, equipment observation, traffic zones, and variable-distance inspection applications. The compact 42mm x 42mm double-board design allows the camera to fit into custom housings and space-limited OEM systems.

Key Features:

• IPX / Infinite Pixels 12MP AI IP camera module
• Sony 1/2.3" 12MP CMOS image sensor
• 64-bit quad-core RISC-V SoC with embedded Linux
• Integrated NPU for edge AI object detection
• Supports MobileNet V2 + SSDLite and YOLO7 object detection
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2880 video resolution at 20 fps
• 6-22mm motorized lens for adjustable scene coverage
• Empty space analytics for up to 12 spaces
• Optional number recognition software support
• Compact 42mm x 42mm double-board design
• Image processing: sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR

Common Applications:

• Smart parking and adjustable space analytics
• Traffic lane and vehicle monitoring
• AI surveillance and perimeter security
• UAV and drone observation systems
• Robotics and autonomous vision
• Industrial inspection and remote monitoring
• Machine vision systems
• OEM embedded camera integration
