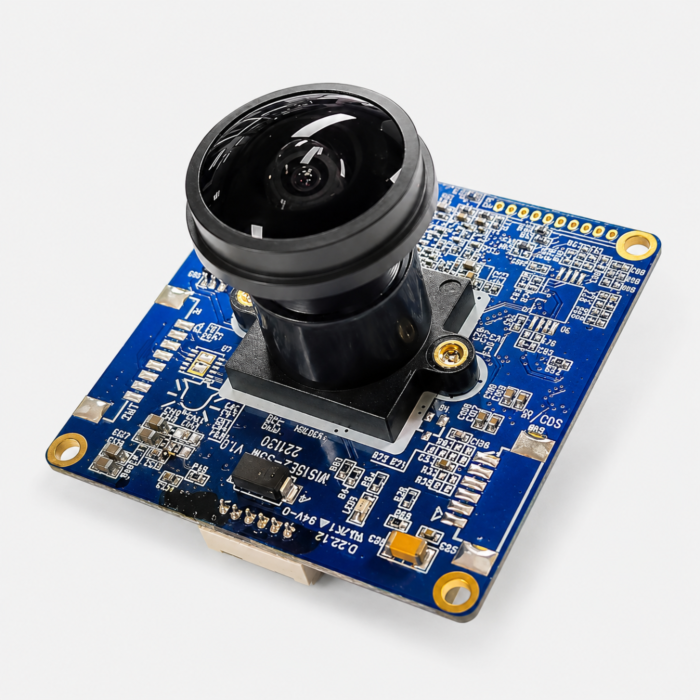

IPX NM-1242M4XH-W 12MP IP Camera Module, 42x42mm Double Board, 2.7-13.5mm Motorized Lens, AI Object Detection

The IPX NM-1242M4XH-W from Infinite Pixels is a high-resolution 12MP IP camera module designed for embedded applications that need adjustable field-of-view control, compact integration, and AI-ready video analytics. With a 2.7-13.5mm motorized lens, Sony 1/2.3" 12MP CMOS sensor, embedded Linux, and 42 x 42mm double-board design, this camera module is well suited for smart surveillance, robotics, UAV/drone systems, intelligent traffic, parking analytics, machine vision, and industrial inspection.

The 2.7-13.5mm motorized lens provides flexible wide-to-medium scene coverage, making the IPX NM-1242M4XH-W useful for installations where the field of view may need to be adjusted after deployment. It is ideal for applications requiring flexible monitoring distance, object detection, parking space coverage, number recognition support, security observation, or automated inspection.

This Infinite Pixels 12MP camera module supports H.265, H.264, and MJPEG compression with video up to 3840 x 2880 at 20fps. The onboard NPU supports MobileNet V2 + SSDLite and YOLO7 object detection, helping integrators build edge AI camera systems for smart city, security, traffic, industrial, and machine vision environments. Advanced image controls include WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness adjustment.

Key Features:

• IPX / Infinite Pixels 12MP IP camera module
• Sony 1/2.3" 12MP CMOS sensor
• 2.7-13.5mm motorized lens for flexible wide-to-medium coverage
• Compact 42 x 42mm double-board design
• Embedded Linux with 64-bit quad-core RISC-V SoC
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2880 video resolution at 20fps
• Integrated NPU for MobileNet V2 + SSDLite and YOLO7 object detection
• Empty space analytics support for up to 12 spaces
• Optional number recognition software support
• WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness controls

Applications:

• Smart parking systems and occupancy detection
• AI surveillance and remote monitoring
• Robotics and autonomous vision systems
• Industrial inspection and quality control
• Machine vision and factory automation
• Intelligent traffic and smart city monitoring
• UAV/drone embedded imaging systems
• OEM IP camera module integration
