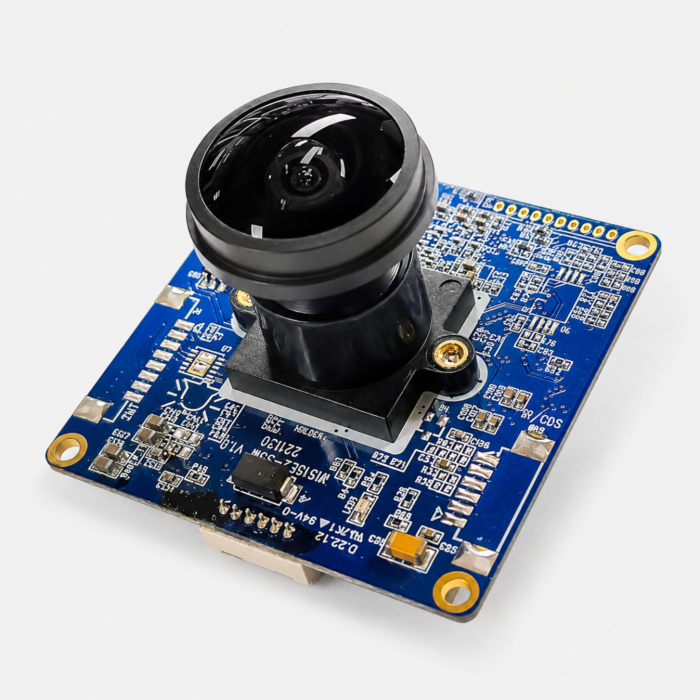

IPX NM-1242B60H-W 12MP IP Camera Module, 42x42mm Double Board, 6mm Lens, Sony CMOS, AI Analytics
The IPX NM-1242B60H-W from Infinite Pixels is a compact 12MP IP camera module designed for embedded imaging applications that need detailed image capture with a more focused field of view. Featuring a 6mm fixed lens, Sony 1/2.3" 12MP CMOS sensor, embedded Linux, and a 42 x 42mm double-board form factor, this camera module is well suited for intelligent surveillance, industrial inspection, machine vision, traffic monitoring, robotics, smart parking, and AI video analytics.
The 6mm lens provides tighter framing than wider fixed-lens models, making the IPX NM-1242B60H-W a strong choice for applications that require increased subject detail, targeted monitoring, object recognition, roadway observation, equipment monitoring, or focused inspection views. Video support includes H.265, H.264, and MJPEG compression with resolution up to 3840 x 2880 at 20fps.
Powered by a 64-bit quad-core RISC-V SoC and embedded Linux, this Infinite Pixels 12MP camera module is built for edge video processing and modern IP camera integration. The onboard NPU supports MobileNet V2 + SSDLite and YOLO7 object detection, while advanced video processing features such as WDR, HLC, BLC, 2DNR, and 3DNR help improve visibility and image quality in difficult lighting environments.
Key Features:
- IPX / Infinite Pixels 12MP IP camera module
- Sony 1/2.3" 12MP CMOS sensor
- 6mm fixed lens for focused scene capture
- Compact 42 x 42mm double-board form factor
- Embedded Linux with 64-bit quad-core RISC-V SoC
- H.265, H.264, and MJPEG video compression
- Up to 3840 x 2880 resolution at 20fps
- Integrated NPU for MobileNet V2 + SSDLite and YOLO7 object detection
- Empty space analytics support for up to 12 spaces
- Optional number recognition software support
- WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness controls
Applications:
- Focused surveillance and security monitoring
- Industrial inspection and process monitoring
- Intelligent traffic and roadway monitoring
- Smart parking and empty space detection
- AI object detection and edge vision systems
- Robotics and autonomous machine vision
- UAV/drone remote monitoring payloads
- OEM embedded IP camera integration
| Brand | IPX / Infinite Pixels |
| Model | NM-1242B60H-W |
| Camera Type | 12MP IP Camera Module |
| Board Design | Double Board |
| Dimensions | 42 x 42mm Camera Board |
| SoC | 64-bit Quad-Core RISC-V |
| Operating System | Embedded Linux |
| Image Sensor | Sony CMOS Sensor |
| Sensor Size | 1/2.3" |
| Resolution | 12MP |
| Video Resolution | Up to 3840 x 2880 @ 20fps |
| Series Class | 12MP IP Modules, 25fps Series |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 6mm Fixed Lens |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLO7 Object Detection |
| Key Analytics Feature | Empty Space Analytics, up to 12 spaces |
| Software Options | Number Recognition |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Focused Surveillance, Machine Vision, Industrial Inspection, Traffic Monitoring, Robotics, AI Vision, Smart Parking |
