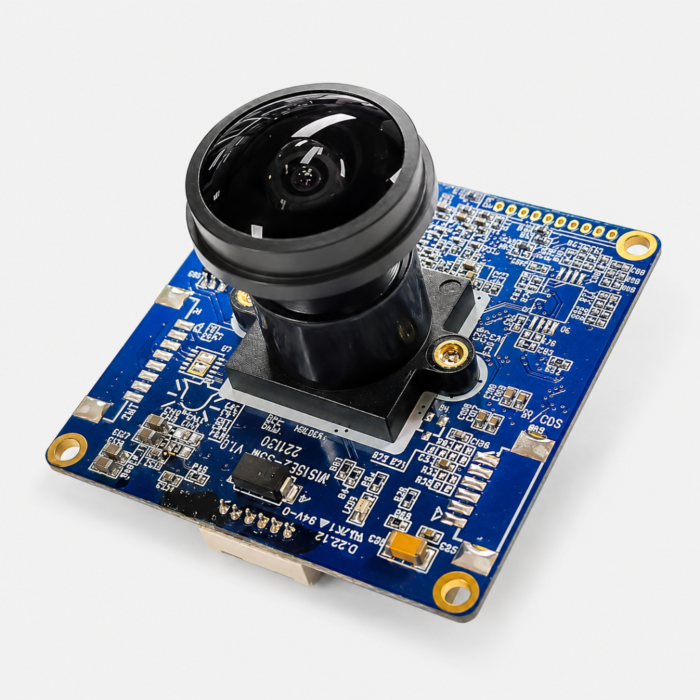

IPX NM-1242B40H-W 12MP IP Camera Module, 42x42mm Double Board, 4mm Lens, Sony CMOS, Embedded Linux
The IPX NM-1242B40H-W from Infinite Pixels is a 12MP IP camera module engineered for embedded vision systems that require high-resolution video, compact board-level integration, and AI-ready image processing. With a 42 x 42mm double-board design, Sony 1/2.3" 12MP CMOS sensor, embedded Linux, and a 64-bit quad-core RISC-V SoC, this module is designed for OEM camera systems, robotics, intelligent surveillance, machine vision, smart parking, and industrial inspection.
The 4mm fixed lens provides a balanced field of view for applications that need more target detail than a wide 2.8mm lens while still covering a practical monitoring area. The IPX NM-1242B40H-W supports H.265, H.264, and MJPEG compression with video up to 3840 x 2880 at 20fps, making it well suited for high-resolution IP video applications where bandwidth efficiency and image clarity are both important.
Integrated NPU support for MobileNet V2 + SSDLite and YOLO7 object detection allows this Infinite Pixels camera module to support edge AI analytics, smart monitoring, object detection, parking space analytics, and automated visual inspection. Advanced image controls include WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness adjustment.
Key Features:
- IPX / Infinite Pixels 12MP IP camera module
- Sony 1/2.3" 12MP CMOS sensor
- 4mm fixed lens for balanced scene coverage
- 42 x 42mm double-board embedded camera design
- Embedded Linux with 64-bit quad-core RISC-V SoC
- H.265, H.264, and MJPEG video compression
- Up to 3840 x 2880 resolution at 20fps
- NPU support for MobileNet V2 + SSDLite and YOLO7 object detection
- Empty space analytics for up to 12 spaces
- Optional number recognition software support
- Video processing with WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness
Applications:
- Smart surveillance and IP security systems
- AI object detection and edge video analytics
- Parking space detection and smart parking systems
- Industrial inspection and machine vision
- Robotics and autonomous platform imaging
- Traffic monitoring and transportation analytics
- UAV/drone embedded camera systems
- OEM IP camera module integration
| Brand | IPX / Infinite Pixels |
| Model | NM-1242B40H-W |
| Camera Type | 12MP IP Camera Module |
| Board Design | Double Board |
| Dimensions | 42 x 42mm Camera Board |
| SoC | 64-bit Quad-Core RISC-V |
| Operating System | Embedded Linux |
| Image Sensor | Sony CMOS Sensor |
| Sensor Size | 1/2.3" |
| Resolution | 12MP |
| Video Resolution | Up to 3840 x 2880 @ 20fps |
| Series Class | 12MP IP Modules, 25fps Series |
| Video Compression | H.265, H.264, MJPEG |
| Lens | 4mm Fixed Lens |
| NPU / AI Support | MobileNet V2 + SSDLite / YOLO7 Object Detection |
| Key Analytics Feature | Empty Space Analytics, up to 12 spaces |
| Software Options | Number Recognition |
| Video Processing | Sharpness, Brightness, Contrast, HLC, BLC, WDR, 2DNR, 3DNR |
| Applications | Surveillance, Smart Parking, Robotics, Machine Vision, Intelligent Traffic, Industrial Inspection, AI Vision |
