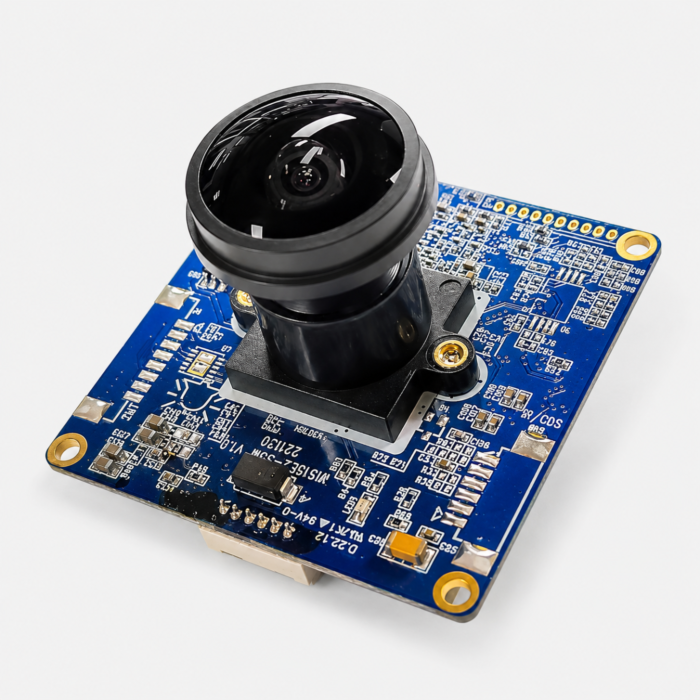

IPX NM-1242B28H-W 12MP IP Camera Module, 42x42mm Double Board, 2.8mm Lens, Sony CMOS, AI Object Detection

The NM-1242B28H-W is a compact 12MP IP camera module built for high-resolution embedded imaging, AI vision, robotics, surveillance, intelligent traffic, parking analytics, machine vision, and industrial inspection applications. Designed around a 42 x 42mm double-board form factor, this module combines a Sony 1/2.3" 12MP CMOS sensor with an embedded Linux platform and a 64-bit quad-core RISC-V SoC for reliable edge video processing.

With a 2.8mm fixed lens, the NM-1242B28H-W provides a wide field of view for applications that require broad scene coverage in a compact camera footprint. It supports H.265, H.264, and MJPEG video compression with resolution up to 3840 x 2880 at 20fps, helping deliver detailed imaging while maintaining efficient bandwidth and storage usage.

Built-in NPU support for MobileNet V2 + SSDLite and YOLO7 object detection makes this 12MP IP module well suited for embedded AI applications, smart monitoring systems, occupancy detection, intelligent surveillance, and automated visual analysis. Advanced image processing features include sharpness, brightness, contrast, HLC, BLC, WDR, 2D noise reduction, and 3D noise reduction.

Key Features:

• 12MP IP camera module with Sony 1/2.3" CMOS sensor
• Compact 42 x 42mm double-board design for embedded integration
• 2.8mm fixed lens for wide-angle scene coverage
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2880 resolution at 20fps
• 64-bit quad-core RISC-V SoC with embedded Linux
• Integrated NPU for MobileNet V2 + SSDLite and YOLO7 object detection
• Supports empty space analytics for up to 12 spaces
• Optional number recognition software support
• WDR, HLC, BLC, 2DNR, 3DNR, brightness, contrast, and sharpness controls

Applications:

• AI surveillance and smart security systems
• Parking space monitoring and empty space analytics
• Robotics and autonomous vision systems
• UAV/drone imaging payloads
• Industrial inspection and factory automation
• Intelligent traffic and transportation monitoring
• Medical, bioscience, and laboratory imaging
• Embedded machine vision and edge AI camera systems
