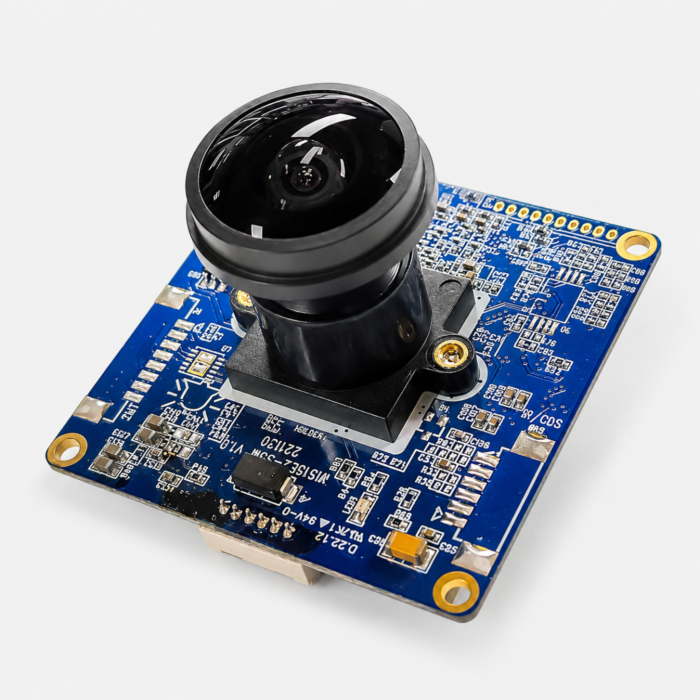

IPX NM-1242B28-W 12MP AI IP Camera Module with Sony CMOS Sensor, RISC-V SoC & 2.8mm Lens

The IPX NM-1242B28-W from Infinite Pixels is a compact 12MP AI IP camera module designed for wide-area embedded imaging, smart parking, robotics, UAV/drone vision, intelligent traffic, surveillance, machine vision, and industrial inspection applications. Built on a Sony 1/2.3" 12MP CMOS sensor, a 64-bit quad-core RISC-V SoC, embedded Linux, and onboard NPU processing, this board-level camera gives OEM integrators a powerful high-resolution imaging platform in a compact 42mm x 42mm form factor.

The NM-1242B28-W supports H.265, H.264, and MJPEG video compression with up to 3840 x 2880 resolution at 20 fps. Its integrated NPU supports object detection using MobileNet V2 + SSDLite and YOLO7, making it a strong choice for edge AI camera systems where analytics can be handled closer to the image source.

Equipped with a 2.8mm fixed lens, this model is best suited for applications that need a wider field of view, such as parking space monitoring, room analytics, traffic observation, wide-area surveillance, kiosk vision, robotics navigation, and compact OEM camera integration. The module also supports empty space analytics for up to 12 spaces, optional number recognition, and image processing controls including sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR.

Key Features:

• IPX / Infinite Pixels 12MP AI IP camera module
• Sony 1/2.3" 12MP CMOS image sensor
• 64-bit quad-core RISC-V SoC with embedded Linux
• Integrated NPU for edge AI object detection
• Supports MobileNet V2 + SSDLite and YOLO7 object detection
• H.265, H.264, and MJPEG video compression
• Up to 3840 x 2880 video resolution at 20 fps
• 2.8mm fixed lens for wide-area scene coverage
• Compact 42mm x 42mm double-board design
• Empty space analytics for up to 12 spaces
• Optional number recognition software support
• Video processing: sharpness, brightness, contrast, HLC, BLC, WDR, 2DNR, and 3DNR

Common Applications:

• Smart parking and empty space detection
• Wide-area AI surveillance
• Robotics and autonomous vision
• UAV and drone camera systems
• Intelligent traffic monitoring
• Machine vision and industrial inspection
• Embedded Linux camera systems
• OEM IP camera integration
