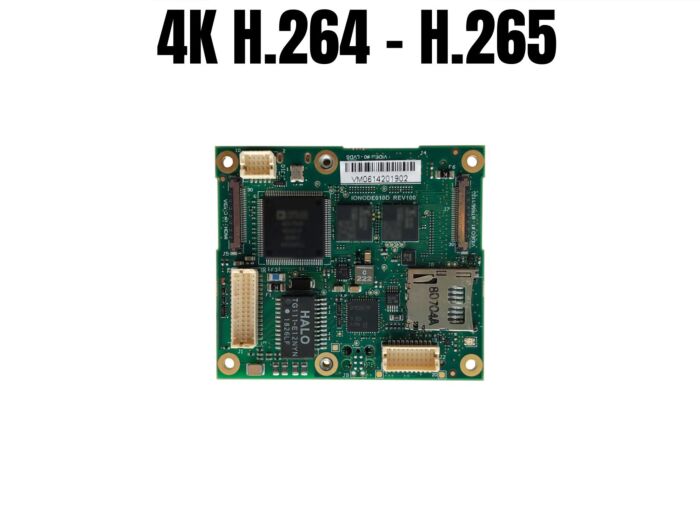

IONODES ATOMAS-DUO-HDMI Multi-Purpose 4K IP Video Encoder Module for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras
SKU
ATOMAS-DUO-HDMI
Quick Overview
The ATOMAS-DUO-HDMI encoder platform is a feature-rich IP camera video encoder solution for Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras a wide range of single or multi camera designs.
The compact form factor of the ATOMAS-DUO-HDMI platform makes it especially well suited for integration to dual camera systems such as Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras and a secondary video source (digital or analog) such as a thermal camera.
Features:
- Direct connect to 4K HDMI zoom blocks (Sony FCB-ER9500 & FCB-ER8530 4K Block Cameras)
- Support for a secondary video input / camera
- H.265 (HEVC), H.264 and MJPEG video compression
- Max 4K@30FPS (3840×2160) + Max 1080p@30FPS
- Full zoom block control (VISCA, etc)
- Onvif Profile T
- 7VDC to 17VDC power input range
- Optional on-board PoE support
- Optional Wi-Fi support
Applications:
- Video Surveillance
- Security
- Thermal/Visible Camera Systems
- Advanced PTZ Camera Systems
- UAV/Military
- Robotics The ATOMAS-DUO-HDMI encoder platform is a feature-rich IP camera video encoder solution for a wide range of single or multi camera designs.
| Network | 1 x 10/100/1000 Base-T Ethernet (GbE) * optional Wi-Fi + Bluetooth |
| I/O & Audio | 2 x I/O Inputs, 1 x I/O Output 3 x PWM GPIO 2 x Serial Ports (UART + RS422/485) 1 x i2c for external board control On-board microSD socket 2-ch Audio Line In + 1-ch Audio Line Out |
| Primary Video In | 30-pin HDMI interface (KEL USL00-30L) *Matches SONY specifications |
| Secondary Video In | 30-pin multi-purpose interface (KEL USL00-30L) * Supports multiple digital video formats * Compatible with FLIR Boson / QuadSD modules or, Composite video input interface |
| Other | 3.3 VDC power output (max. 100mA) 5 VDC power output (max. 500mA) |
| Video Resolution | Supports sensor inputs at up to 4K UHD |
| Video Compression | H.265 (HEVC) / H.264 (MPEG-4 AVC) / MJPEG |
| Video Latency | Can reach less than 120ms latency |
| Image Processing | 2D/3D noise reduction Edge enhancement frame difference motion detection Privacy Mask |
| Operating System | Embedded Linux |
| HW Watchdog | Auto-boot, OS supervision, temperature monitoring, software monitoring |
| Other | Realtime Clock (RTC) & Temperature Sensor |
| Internal Storage | 1GB NAND Flash |
| External Storage | External Storage via microSD |
| Web GUI | System configuration and maintenance Live video and PTZ control Cross-browser support Smartphone and tablet support |
| Progamming Interface | ION API, ONVIF Profile T, Genetic API |
| System Monitoring | Video signal, storage medium, temperature, memory, CPU, network |
| Media Recording | Recorded audio/video to SD/MMC |
| Software Update | Fault-tolerant, remote accessible |
| Alarm Triggers | I/O input, motion detection, system monitor |
| PTZ Control | Full PTZ implementation Can interface to any PTZ controller (i2c, UART) Programmable preset tours User-defined custom commands |
| Other Features | Email notifications (on event or schedule) Text overlay OEM rebranding / customization |
| Dimensions | 52mm x 60mm x 8mm (WxDxH) |
| Power Input | 7VDC to 12VDC (with VBAT for RTC) Optional add-on POE module (802.3af compliant) that can extract up to 12W of power from the Eth line |
| Operating Temperature | Dependent on customer mechanical design *Most components are -40C to 85C (Tcase) |
| COO | Designed and manufactured in China |
| Warranty | 2 Years Standard |
