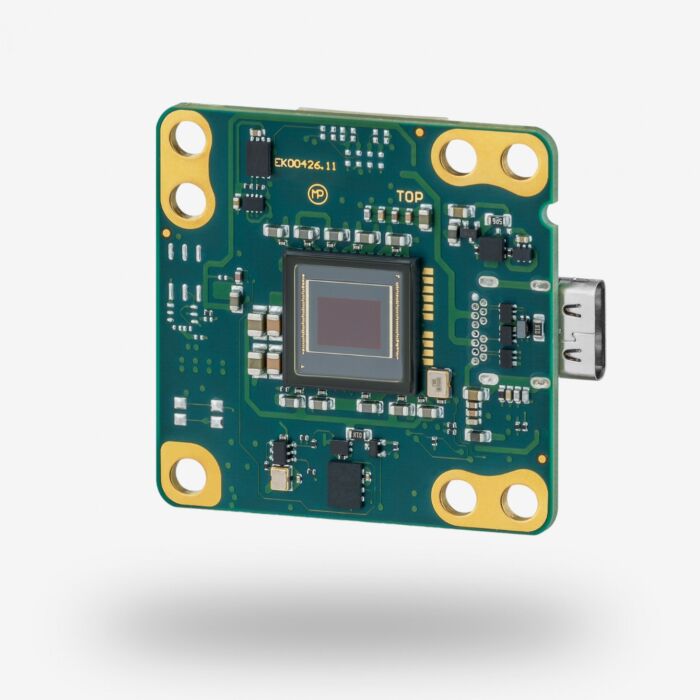

IDS Imaging U3-38J2XLE-C Rev.1.1 USB3 Board Level Camera Front

IDS Imaging U3-38J2XLE-C Rev.1.1 USB3 Board Level Camera

IDS Imaging U3-3042LE-C Rev.1.2 1/3

IDS Imaging U3-3042LE-C Rev.1.2 1/3" USB3 Board Level Color Camera

IDS Imaging U3-38J2XLE-M Rev.1.1 USB3 Board Level Camera

With 8.41 MP and 4K resolution (3864 x 2176 px px, 25.1 fps, pixel size 1.45 µm), the practical U3-38J2XLE Rev.1.1 industrial camera is particularly suitable for visualization tasks.
SKU
U3-38J2XLE-M Rev.1.1

With the 2x2 binning feature, it is possible to reduce the amount of data to be transmitted by a factor of four if required, thereby increasing both the light sensitivity and the frame rate. Sony's IMX415 rolling shutter sensor is available in both colour and monochrome versions and provides high-resolution data for detailed image analysis.

The compact USB3 camera is available either with a plastic housing with C/CS-mount or S-mount or as a board-level version with or without C/CS-mount or S-mount. It can be used in both industrial and non-industrial applications.

Like all other camera models of the uEye XLE family, the U3-38J2XLE Rev.1.1 is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.

Features:

  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • C lens mount
  • CS lens mount
  • USB Type-C connector
  • 3 years warranty


Applications:

  • Medical Technology (and laboratory automation)
  • Embedded Systems
  • Logistics
  • Robotics
Part # U3-38J2XLE-M Rev.1.1 (1007273)
Shutter Rolling Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 8 MP
Resolution 8.41 Mpix
Resolution (H x V) 3864 x 2176 Pixel
Aspect Ratio 4:3
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/3"
Optical Size 5.603 mm x 3.155 mm
Optical Sensor Diagonal 6.43 mm (1/2.49")
Pixel Size 1.45 µm
Manufacturing Sony
Sensor Model IMX415-AAQR-C
Gain (master/RGB) -/-
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 24 / 24
AOI Image Height / Step Width 40 / 4
AOI Position Grid (Horizontal/Vertical) 2 / 4
Binning Horizontal Increased Frame Rate
Binning Vertical Increased Frame Rate
Binning Method M/C automatic
Binning Factor 2
Subsampling Horizontal -
Subsampling Vertical -
Subsampling Method -
Subsampling Factor -
