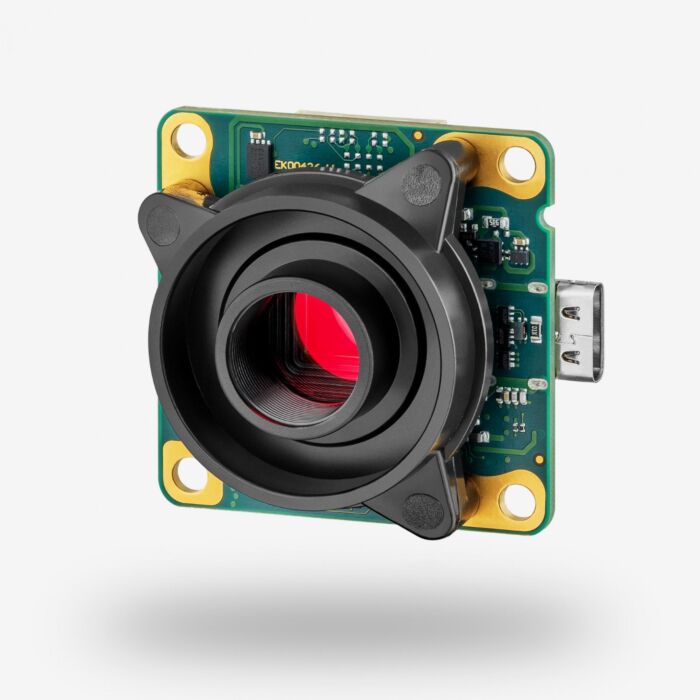

IDS Imaging U3-38J1XLE-C-NO Rev.1.1 USB3 Single-Board Camera Front

IDS Imaging U3-38J1XLE-C-NO Rev.1.1 USB3 Single-Board Camera

IDS Imaging U3-38J1XLE-C-HQ Rev.1.1 USB3 Single-Board Camera

With 8.41 MP and 4K resolution (3864 x 2176 px px, 25.1 fps, pixel size 1.45 µm), the practical U3-38J1XLE Rev.1.1 industrial camera is particularly suitable for visualization tasks.
U3-38J1XLE-C-HQ Rev.1.1

With the 2x2 binning feature, it is possible to reduce the amount of data to be transmitted by a factor of four if required, thereby increasing both the light sensitivity and the frame rate. Sony's IMX415 rolling shutter sensor is available in both color and monochrome versions and provides high-resolution data for detailed image analysis.

The compact USB3 camera is available either with a plastic housing with C/CS-mount or S-mount or as a board-level version with or without C/CS-mount or S-mount. It can be used in both industrial and non-industrial applications.

Like all other camera models of the uEye XLE family, the U3-38J1XLE Rev.1.1 is GenICam-compliant and thus compatible with our state-of-the-art SDK IDS peak software.

Please note: If you choose a model without filter glass (matchcode component "-NO"), make sure that no dust or other particles get onto the sensor during set-up and use.


  • 100% quality tested
  • Plug & Play
  • uEye+ software support
  • USB3 Vision standard
  • SuperSpeed USB 5 Gbps
  • CMOS sensor
  • USB Type-C connector
  • 3 years warranty


  • Medical Technology (and laboratory automation)
  • Embedded Systems
  • Logistics
  • Robotics
Part # U3-38J1XLE-C-HQ Rev.1.1: 1007270
Shutter Rolling Shutter
Sensor Characteristic Linear
Readout Mode Progressive Scan
Pixel Class 5 MP
Resolution 5.04 Mpix
Resolution (H x V) 2592 x 1944 Pixel
Aspect Ratio 4:3
ADC 12 bit
Color Depth (Camera) 12 bit
Optical Sensor Class 1/2.5"
Optical Size 5.702 mm x 4.277 mm
Optical Sensor Diagonal 7.13 mm (1/2.24")
Pixel Size 2.2 µm
Manufacturing Onsemi
Sensor Model AR0521SR2C09SURA0
Gain (master/RGB) 15x/8x
AOI Horizontal Same Frame Rate
AOI Vertical Increased Frame Rate
AOI Image Width / Step Width 48 / 12
AOI Image Height / Step Width 4 / 2
AOI Position Grid (Horizontal/Vertical) 8 / 2
Binning Horizontal Same Frame Rate
Binning Vertical Increased Frame Rate
Binning Method Color
Binning Factor 2
Subsampling Horizontal Same Frame Rate
Subsampling Vertical Increased Frame Rate
Subsampling Method Color
Subsampling Factor 2, 4
